REW06 6-band EW Jammer 200-5800 MHz — Kalmius Tech

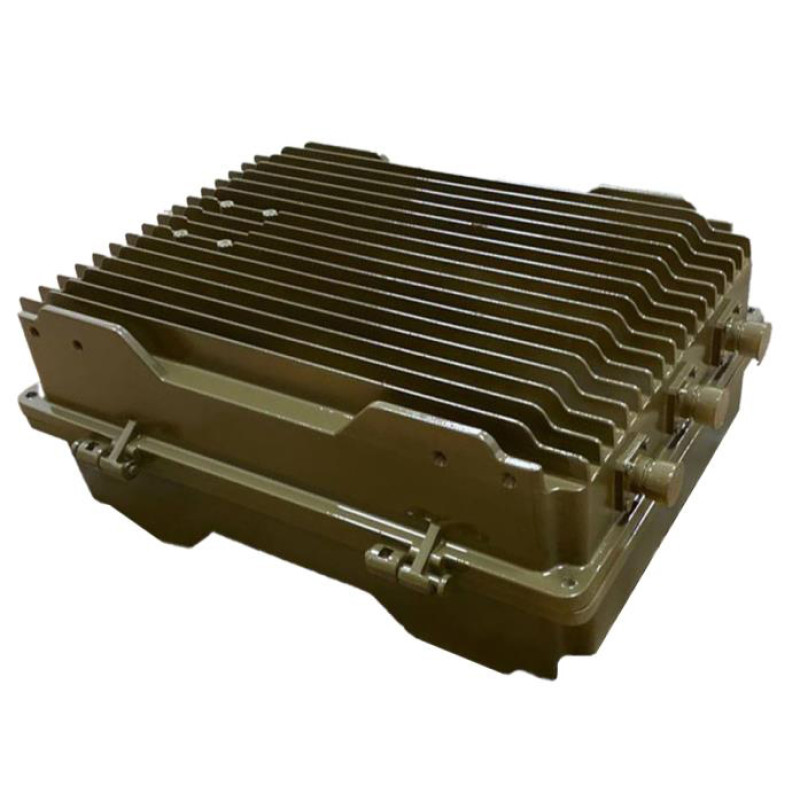

The REW06 from Kalmius Tech is a versatile electronic warfare countermeasure device designed for installation inside a vehicle cabin or on its roof. For internal installation, the device comes in a plastic casing with active cooling; for external mounting, a durable metal casing resistant to operational loads and atmospheric influences is provided. The system is equipped with circularly polarized antennas and a set of coaxial extension cables for optimal antenna placement on the roof or higher points of the vehicle body.

Key Features

• Frequency range: 200-5800 MHz (200 MHz — 5.8 GHz)
• Number of independent jamming channels: 6
• Tactical range: 50–150 m
• Power supply: 12 V, up to 80 A (can be connected to a car battery)
• Power consumption: up to 100 W per channel
• Casing material: plastic for internal mounting (with active cooling) or metal for external mounting
• Weight: 10 kg

The REW06 provides wideband coverage thanks to six independent jammer generators, allowing simultaneous blocking of signals in multiple frequency bands. The combination of high output power and mobility makes this device suitable for use in complex tactical conditions where local jamming of radio communication channels within 150 meters is required.

Package Contents

• Radio jamming and control unit, 1 pc
• Power cable with terminals and alligator clips, 1 pc, 3 m length
• Remote power disconnect switch, 1 pc, 2 m length
• Antennas (cloverleaf or quadrifilar) with magnetic and/or screw mounting — 1 pc per channel
• Coaxial antenna extension cables, 1 pc per channel, 2.5 m length

The included antenna package may have various mounting and design options, allowing the system to be adapted to a specific vehicle type and task. Coaxial extension cables 2.5 m long for each channel simplify antenna mounting on the roof and ensure optimal coverage.

12V power supply and the ability to connect to a car battery ensure high mobility and rapid deployment of the REW06 in field conditions; an additional power option — the external PS12 charging station — is supplied separately. The metal external casing enhances equipment protection from weather, while the plastic casing with active cooling is suitable for internal placement with efficient heat dissipation.

The REW06 is recommended for operational use by mobile groups, escorting important cargo, security operations, and other tasks where reliable local jamming of radio channels is necessary. Its compact weight of 10 kg and well-thought-out package contents allow for easy integration of the system into a vehicle platform, maintaining load balance on the body.

Manufacturer: Kalmius Tech. Product category: Vehicle EW Jammers. Technical and component specifications correspond to the REW06 model description and include all listed elements, with the exception of external PS12 power supply devices, which are sold separately.
