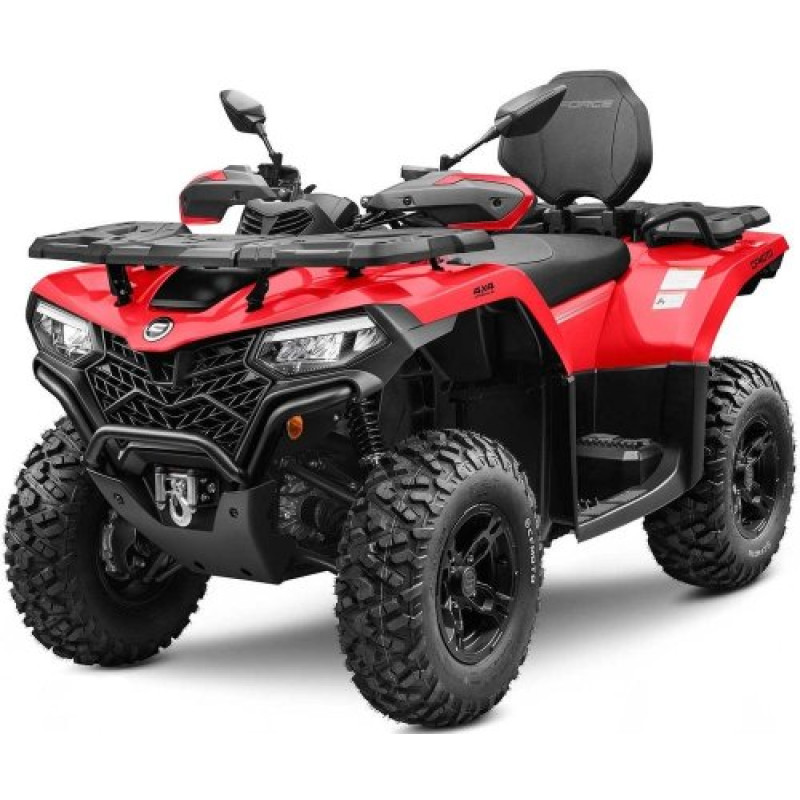

CFMOTO CFORCE 520 Basic — a reliable ATV for work and leisure
The CFMOTO CFORCE 520 Basic ATV from the CFMOTO brand is a versatile representative of the Motor Vehicles > ATVs category, designed for active recreation, agricultural tasks, and challenging off-road routes. The model combines a robust tubular frame with integrated mounting points for additional storage boxes, thoughtful ergonomics, and basic equipment that makes it ready for use immediately after purchase.
The heart of the ATV is a gasoline-powered 4-stroke single-cylinder SOHC engine with a displacement of 495 cm3, electronic fuel injection, and a liquid cooling system. The engine develops 34 hp, with nominal revolutions of 7200±150 rpm, and a maximum torque of 39 Nm at 6000 rpm. Starting is implemented via an electric starter, ensuring convenient and reliable ignition in all conditions.
| Engine power, hp | 34 |
| Wheel drive | 4x4 |
| Engine type | gasoline, 4-stroke, 1 cylinder SOHC |
| Engine displacement, cm3 | 495 |
| Fuel system | electronic fuel injection |
| Engine starting system | electric starter |
| Cooling system | liquid |
| Nominal engine speed, rpm | 7200±150 |
| Torque, Nm/rpm | 39 at 6000 |
| Transmission (gearbox) | automatic (V-belt variator) |
| Modes | L-H-N-R-P |
| Differential lock | yes |
| Final drive | direct |
| Front brakes | disc, hydraulic |
| Rear brake | disc, hydraulic |
| Wheelbase, mm | 1460 |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 17 |
| Dimensions, LxWxH mm | 2385x1125x1220 |
| Front suspension | independent double A-arm, gas-oil shock absorbers with adjustable settings |
| Rear suspension | independent, double transverse A-arm, anti-roll bar |
| Equipment | rearview mirrors, handguards, instrument panel with LCD screen, winch, alloy wheels, tow hitch |
| Electrics | front lenses with halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | sealed lead-acid |
| Plastic bodywork | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal bodywork | tubular, integrated into the frame with the possibility of installing additional storage boxes |
The transmission is an automatic V-belt variator with L-H-N-R-P modes, making control easy even for beginners. The 4x4 wheel drive, combined with a differential lock and independent front and rear suspensions, guarantees high off-road capability and stability on challenging terrains. Hydraulic disc brakes front and rear ensure effective braking in all conditions.
Equipment and comfort
The CFORCE 520 Basic is equipped with everything necessary for versatile use: rearview mirrors, handguards, an instrument panel with an LCD screen, a powerful winch for towing and field work, alloy wheels, and a tow hitch for a trailer. The lighting system with halogen lenses (low/high beam), marker lights, brake light, and turn signals ensure safe driving in the dark. A sealed lead-acid battery guarantees reliable operation of the electric starter.
- Power: 34 hp
- Engine: 495 cm3, 4-stroke, SOHC with electronic injection.
- Transmission: automatic variator with L-H-N-R-P modes.
- Off-road capability: 4x4 and differential lock.
- Comfort and safety: independent suspensions, disc brakes, winch, and guards.
Dimensions of 2385x1125x1220 mm and a wheelbase of 1460 mm, combined with 25x8-12 front and 25x10-12 rear tires, ensure reliable road contact and comfort during long rides. A 17-liter fuel tank allows for significant distances without frequent refueling. Plastic elements made of ABS plastic and tubular metal bodywork integrated into the frame enhance the machine's durability and functionality.
The CFMOTO CFORCE 520 Basic is an excellent combination of reliability, practicality, and an affordable price. This model is suitable for farm work, recreational rides, and solving everyday tasks where a combination of power, off-road capability, and basic comfortable equipment is required.
