Technical Specifications and Model Description

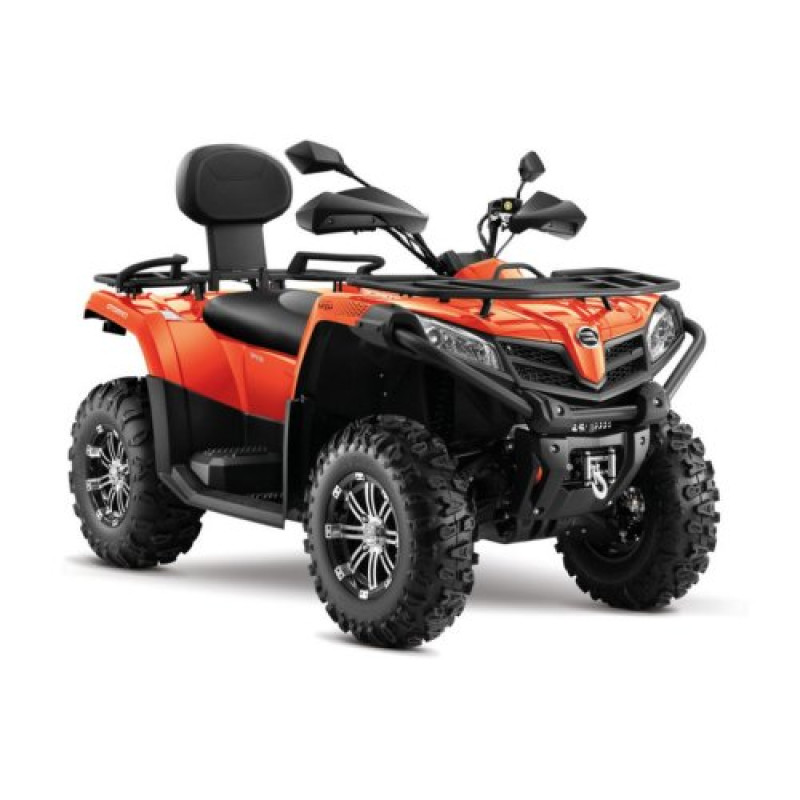

Model: CFMOTO CFORCE 450 Basic ATV. Brand: CFMOTO. Category: Motor Vehicles > ATVs. This model is designed as a versatile ATV for active off-road riding and practical work on the property — it combines a reliable design, modern electronics, and comfortable ergonomics for the rider.
The CFORCE 450 Basic is equipped with a powerful single-cylinder 4-stroke gasoline engine with a displacement of 400 cm3, which develops 31 hp. The average nominal engine speed is 7200±150 rpm, and the maximum torque is 33 Nm at 6000 rpm. An electric starter is provided for quick and reliable starting, the cooling system is liquid, and the fuel system is DelphiEFI electronic injection, which ensures confident starting in cold weather and economical fuel consumption.
| Engine power, hp | 31 |
| Wheel formula | 4x4 |
| Engine type | gasoline, 4-stroke, 1 cylinder |
| Engine displacement, cm3 | 400 |
| Fuel system | DelphiEFI electronic fuel injection |
| Engine start system | electric starter |
| Cooling system | liquid |
| Nominal engine speed, rpm | 7200±150 |
| Torque, Nm / rpm | 33 at 6000 |
| Transmission (КП) | automatic (V-belt variator) |
| Transmission modes | P/R/N/H/L |
| Rear differential lock | yes |
| Final drive | direct |
| Front brakes | dual-disc, hydraulic |
| Rear brake | dual-disc, hydraulic |
| Wheelbase, mm | 1480 |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 30 |
| Dimensions, LxWxH mm | 2400x1100x1350 |
| Front suspension | independent double A-arm |
| Rear suspension | swingarm with trailing arms, gas-oil shock absorbers |
| Equipment | rearview mirrors, handguards, LCD instrument panel, winch, alloy wheels, tow hitch |
| Electrics | front lenses with halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | sealed lead-acid |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional storage boxes |
The automatic transmission based on a V-belt variator simplifies control: P/R/N/H/L modes are available, allowing easy adaptation of the ATV's behavior for slow technical work as well as faster movement. The rear differential lock increases off-road capability in difficult conditions and makes the CFORCE 450 Basic more versatile when driving off-road.
The braking system features front and rear dual-disc hydraulic brakes, ensuring reliable stopping even on slippery or snowy surfaces. The suspension is designed for intensive use on rough terrain: the independent front suspension with double A-arms and the rear swingarm with trailing arms and gas-oil shock absorbers provide comfort and control during movement.
Compact dimensions of 2400x1100x1350 mm combined with a wheelbase of 1480 mm and tire sizes of front 25x8-12, rear 25x10-12 ensure stability during maneuvering and confident road contact. A 30-liter fuel tank allows for long distances between refueling, and DelphiEFI enhances engine efficiency and reliability.
The practical equipment of the CFORCE 450 Basic includes rearview mirrors, handguards, an informative LCD instrument panel, an integrated winch for work tasks, alloy wheels, and a tow hitch for towing. The plastic body kit is made of durable ABS plastic (front bumper, side guards, and fender flares), and the tubular metal body kit is integrated into the frame and allows for mounting additional storage boxes for cargo. Power is provided by a sealed lead-acid battery.
The CFMOTO CFORCE 450 Basic is an excellent choice for outdoor enthusiasts, hunters, fishermen, and farmers who need reliable work and recreational transport for challenging terrain. Additional advantages of the model include modern electronics, a strong frame, and possibilities for tuning and installing additional equipment, making this model a versatile solution in the 400 cm3 segment.
