Main specifications
Frequency range: 300–400, 400–500, 500–600, 715–800, 800–900, 900–1020, 2400, 5800 MHz
Jamming range: Up to 500 m
Power source: Battery
Number of jamming channels: 8
Total system power: up to 785 W
All specifications
We will deliver this product:
Payment
Description

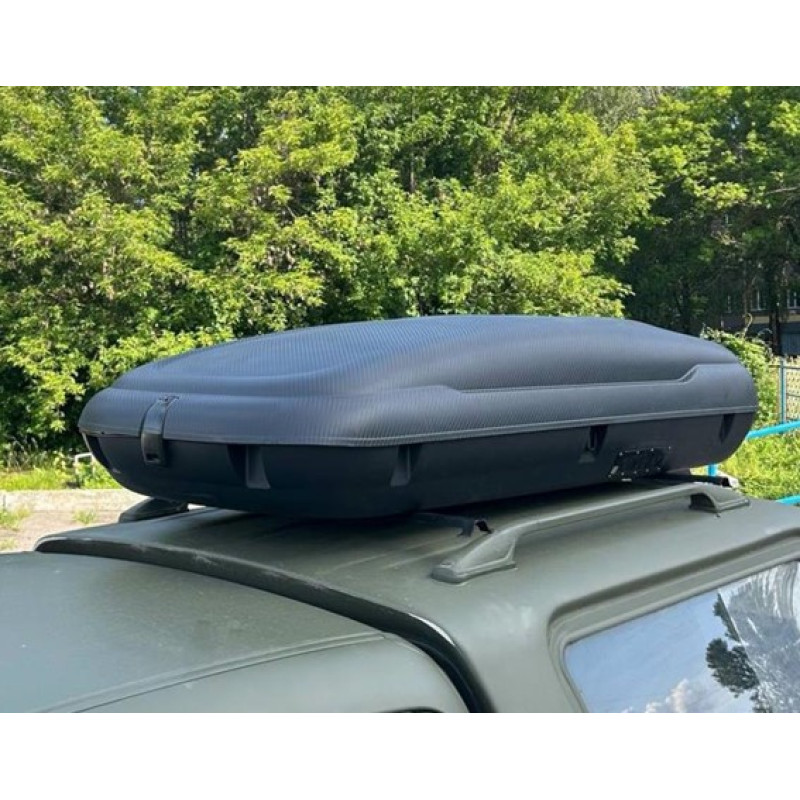

Autobox 8-Band Vehicle Roof-Mounted EW Jammer (opt. 9,10,11) — Wartex

Introducing the professional vehicle electronic warfare system Autobox from Wartex. This specialized complex is designed for roof mounting on a vehicle and provides effective suppression of UAV control frequencies and radio control thanks to a combination of powerful transmitters and an omnidirectional antenna system.

Description and Purpose

Autobox is designed for rapid electronic countermeasures in the area around the vehicle. The housing and mounting are designed for vehicle roof installation, and the antenna system provides 360-degree coverage, allowing reliable signal blocking in all directions. The kit includes an antenna set, battery, and charger, ensuring readiness for operation immediately after installation.

Technical Specifications

  • Operating Bands: 300-400 MHz, 400-500 MHz, 500-600 MHz, 715-800 MHz, 800-900 MHz, 900-1020 MHz, 2400 MHz, 5800 MHz.
  • Power per Channel: 50/50/50/50/50/20 W respectively per channel.
  • Power Consumption: 785 W.
  • Power Source: battery (included).
  • Power Connector: Weipu.
  • Antenna Directionality: 360° omnidirectional coverage.
  • Antenna Type: omnidirectional (Moxon, dome-type).
  • Weight (without battery): 17 kg.

Optional Upgrades: The system can be equipped with additional bands (9, 10, 11 band options) or a larger battery for extended autonomous operation. Before ordering, please specify your desired band configuration and accessories with the manager.

Compatibility and Suppression Effectiveness

The device suppresses the most popular FPV ELRS/TBS control frequencies in stock settings and with shifted/reduced frequencies, as well as bands used by DJI series drones, some Autel models, and Parrot devices. This versatility allows Autobox to be used for perimeter protection during operational tasks, professional operations, and special events.

Package Contents and Operation

The kit includes: housing with vehicle roof mount, antenna set, battery, and charger. Installation and setup are recommended to be entrusted to qualified specialists familiar with the operating rules for electronic equipment and safety requirements when working with high-power transmitters.

Prices and Configurations

  • 8 bands - 285 000 UAH
  • 9 bands - 310 000 UAH
  • 10 bands - 335 000 UAH
  • 11 bands - 360 000 UAH

The product belongs to the EW jammers category and is manufactured under the Wartex brand. If you need custom settings or a different power configuration — our service specialists will help you choose the optimal option.

Before purchasing, we recommend clarifying the details of band configuration, package contents, and warranty service terms with the manager. Installation and adjustment must be performed in accordance with safety requirements and technical documentation.

Other products in this category here Vehicle EW Jammers

Wartex EW Jammers, 8-channel EW jammer, EW Jammer with Built-in Battery, EW Jammer 12/24V, EW Jammer with External Battery Power, EW Jammer, 1–1000 MHz, EW jammer, 2001–3000 MHz range, EW Jammer, 5001–6000 MHz

Specifications
Frequency range 300–400, 400–500, 500–600, 715–800, 800–900, 900–1020, 2400, 5800 MHz
Jamming range Up to 500 m
Power source Battery
Trench EW Jammer
Number of jamming channels 8
Total system power up to 785 W
Power per channel 50/20 W
Suppression Frequencies 300–400, 400–500, 500–600, 715–800, 800–900, 900–1020, 2400, 5800 MHz
Antenna type Omnidirectional
