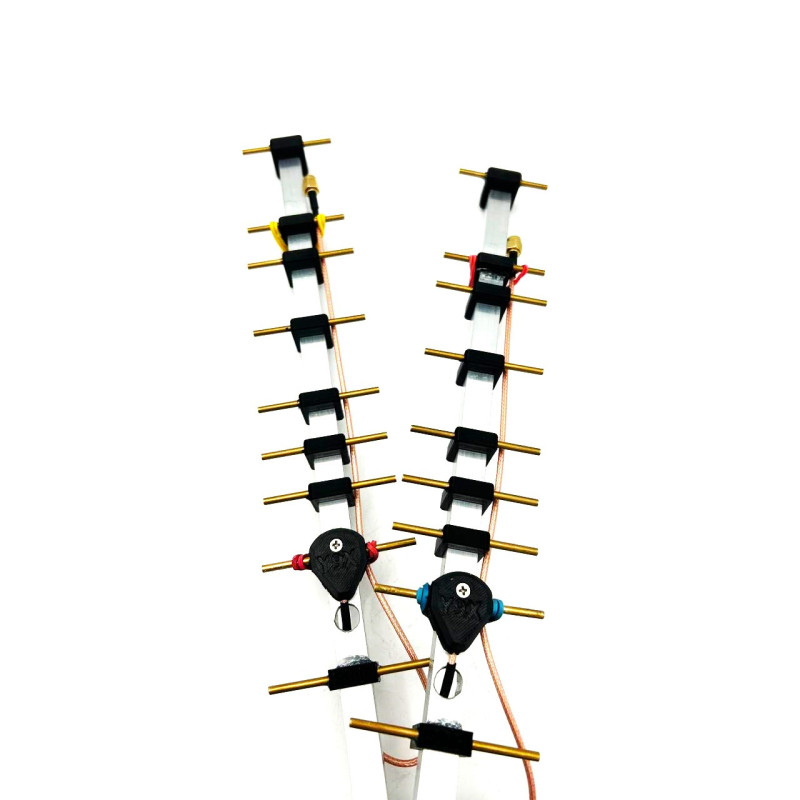

SkyReach Yagi Y9X 2.4 GHz Directional Antenna — 13.4 dBi, 9 Elements, SMA Connector
The Yagi 2.4 GHz directional antenna model Y9X from SkyReach is designed to provide stable and high-quality wireless communication at 2.4 GHz. This antenna combines high gain, a narrow beam angle, and a low standing wave ratio, making it an ideal choice for Wi-Fi systems, radio communication, telemetry, unmanned aerial vehicles, and industrial applications.
Key Advantages
- Gain: 13.4 dBi, ensuring reliable signal transmission over significant distances;
- Number of Elements: 9 elements for optimal directivity and stable reception/transmission;
- Beam Angle: 35° — allows focusing energy in the desired direction;
- Low SWR: 1.1 — minimizes power loss and increases system efficiency;
- Material: aluminum — lightweight, durable, and corrosion-resistant construction;
- Standard Connector: SMA — compatibility with most radio modules and adapters;
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Frequency | 2.4 GHz |
| Polarization | Linear |
| Gain | 13.4 dBi |
| Beam Angle | 35° |
| Input Impedance | 50 Ω |
| Standing Wave Ratio (SWR) | 1.1 |
| Connection Cable Length | 290 mm |
| Connector | SMA |
| Material | Aluminum |
| Dimensions | 400 × 68 × 23 mm |
| Weight | 175 g |
Applications
This directional antenna is effective for: Wi-Fi systems (2.4 GHz), radio communication and telemetry, integration into unmanned aerial vehicles, as well as in industrial and scientific projects where focused transmission and signal stability are required.
The Yagi Y9X antenna offers an optimal combination of high performance, reliability, and stable communication. Its lightweight aluminum construction ensures easy installation and durability, while the standard SMA connector allows for quick integration into existing systems. This model is suitable for both professional and amateur use where directional signal quality is important.
Product Category: Antennas > Yagi Antennas. Brand: SkyReach. Model: Y9X. Frequency: 2.4 GHz. Gain: 13.4 dBi. Elements: 9.
