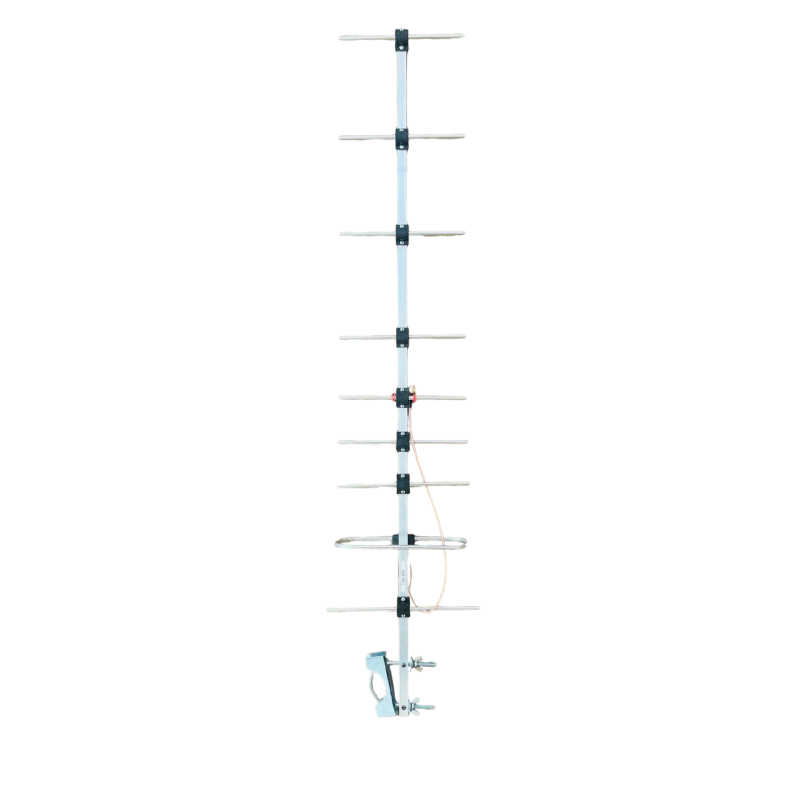

Yagi Directional Antenna 915 MHz — 13 dBi, 1 m, 9 Sections, SMA Connector

Introducing the Yagi directional antenna from the SkyReach brand, designed for efficient operation in the 915 MHz band. This antenna combines high gain and compact dimensions, making it an optimal choice for long-range communication signal amplification and improving signal stability when used with radio equipment with a standard 50 ohm input.

Description and Advantages

The antenna has a gain of 13 dBi and a narrow beam angle of 35°, providing a focused radiation pattern for long-distance transmission and reception. A low standing wave ratio — SWR 1.1 — guarantees minimal losses when connected to equipment with an input impedance of 50 Ω. The antenna body and elements are made of aluminum, ensuring lightweight construction, corrosion resistance, and durability in outdoor conditions.

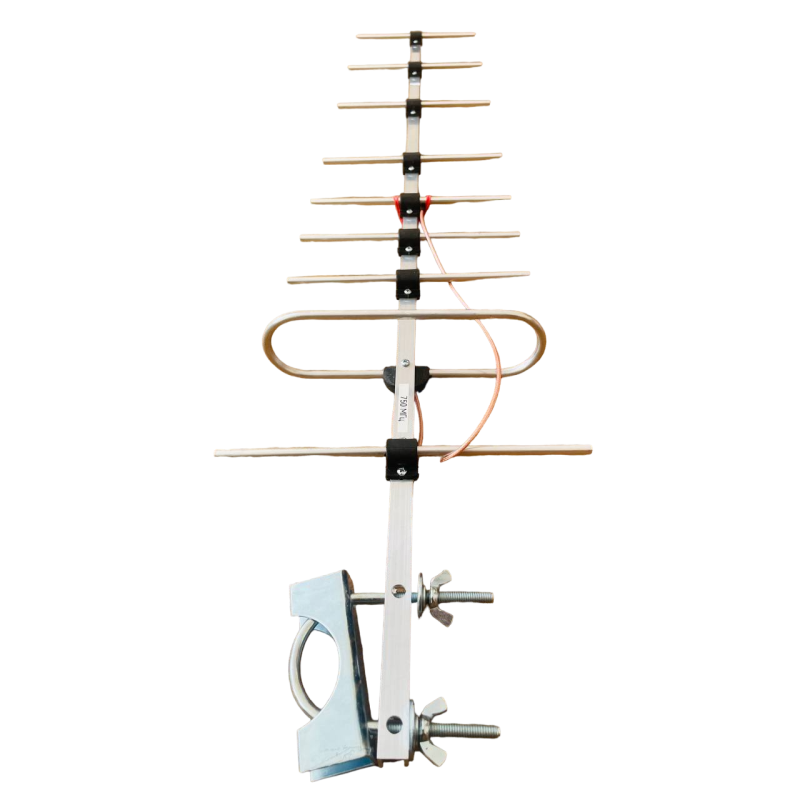

The antenna design includes 9 sections, with a total length of approximately 1 m, allowing for an optimal balance between dimensions and efficiency. The actual dimensions of the antenna are 755 x 163 x 60 mm, and its weight is 312 g, which facilitates mounting on masts or structures with standard brackets.

Technical Specifications

• Frequency: 915 MHz
• Polarization: linear
• Gain: 13 dBi
• Beam Angle: 35°
• Input Impedance: 50 Ω
• SWR: 1.1
• Connection Cable Length: 410 mm
• Connector: SMA
• Material: aluminum
• Size: 755 x 163 x 60 mm
• Weight: 312 g
• Number of Sections: 9
• Total Length: 1 m

The antenna is compatible with equipment operating at 915 MHz and having a 50 Ω input, including industrial LoRa modules, GSM/LPWAN solutions, and other wireless systems. Thanks to the SMA connector, connection to most radio modules and extension cables is quick and reliable. It is recommended to use a high-quality cable and adapters to maintain low SWR and maximum antenna performance.

Mounting and Operation

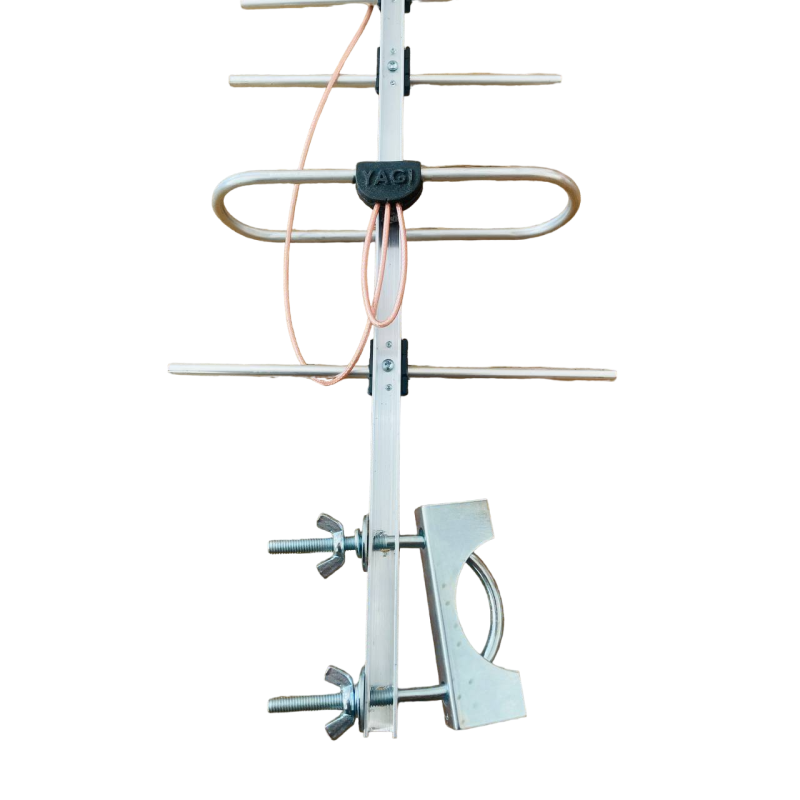

The antenna is easy to mount: its lightweight aluminum construction and compact dimensions allow it to be installed on masts, brackets, or equipment enclosures. Orient the antenna in the direction of the desired remote node for best reception. Outdoor operation requires periodic inspection of fasteners and keeping the SMA connector dry and clean.
