Yagi Antenna 2100-2200 MHz Plastic 8-9dBi — Overview

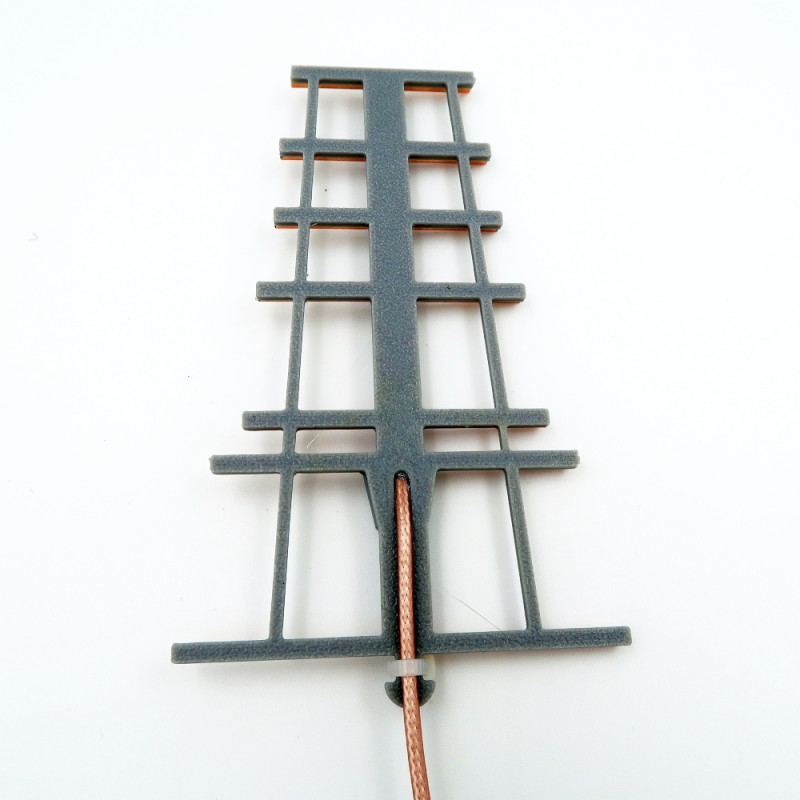

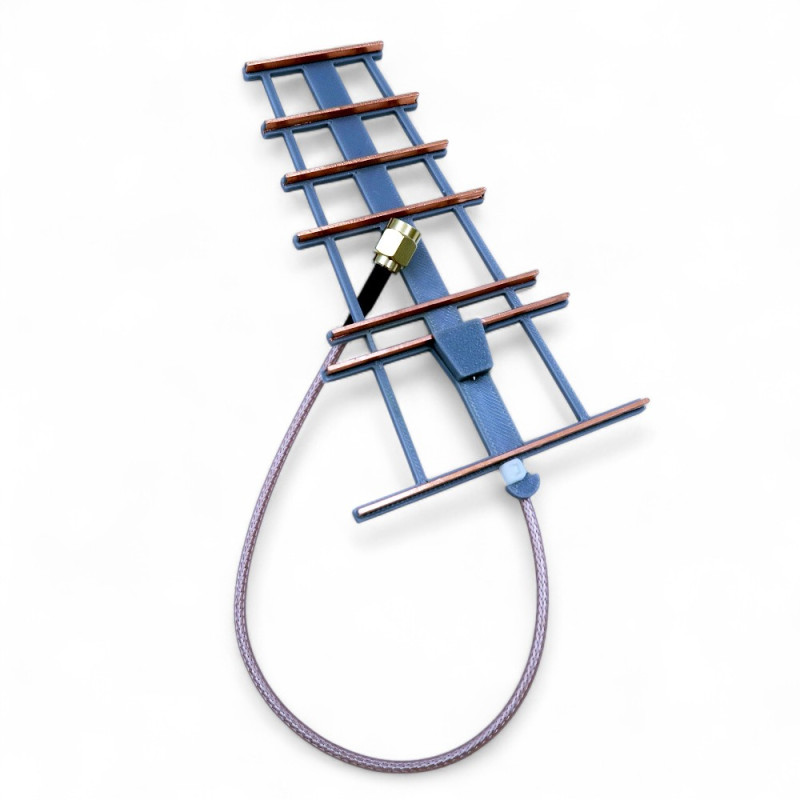

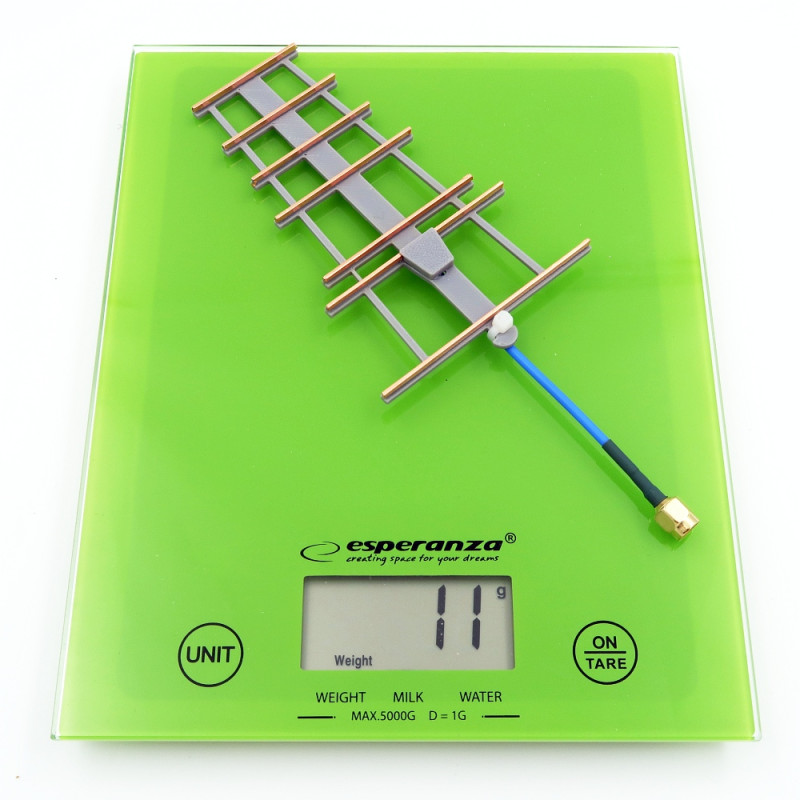

Yagi Antenna 2100-2200 MHz Plastic 8-9dBi from the manufacturer is a directional universal antenna designed to operate in the 2100-2200 MHz range. The design includes an active element, a reflector, and 7 directors mounted on a plastic support base with thin metal conductors. The combination of plastic and metal provides an optimal balance: low weight (11 g) and compact dimensions (118*72*3 mm) with high gain of 8-9 dBi.

The plastic support part ensures lightness and low visual detectability, while the metal conductors guarantee efficient signal radiation and reception. The directional pattern and 37° beam angle allow for precise focusing of reception/transmission, making the antenna suitable for relay, communication boosting, and interception tasks. Polarization — linear. Product type: Antennas > Yagi Antennas.

Areas of Application

• Radio communication between units in military conditions.
• Directional reception and interception of enemy radio transmissions.
• Integration on drones for reconnaissance and signal relay.
• Scenarios where mobility, low weight, and low antenna visibility are important.

The antenna is particularly useful in conditions requiring resistance to weather factors while maintaining low visibility. The flexible pigtail and SMA connector ensure simple connection to a wide range of transmitters and receivers, quick integration into existing communication systems, and convenient mounting on portable platforms.

Technical Specifications

This antenna is ideal for tasks where high directivity and reliable reception/transmission levels in the 2.1–2.2 GHz range are important. Its compact size and low weight make it suitable for mounting on mobile platforms, drones, portable structures, and in situations requiring rapid communication deployment. Thanks to the combination of a plastic base and metal conductors, the antenna maintains efficiency with a minimal visual footprint, which is especially valued in specialized and military applications.

You can buy the Yagi antenna 2100-2200 MHz with 8-9 dBi gain from in the Flash Army online store. To clarify compatibility with your equipment, contact the sales department or refer to the technical specifications provided above.
