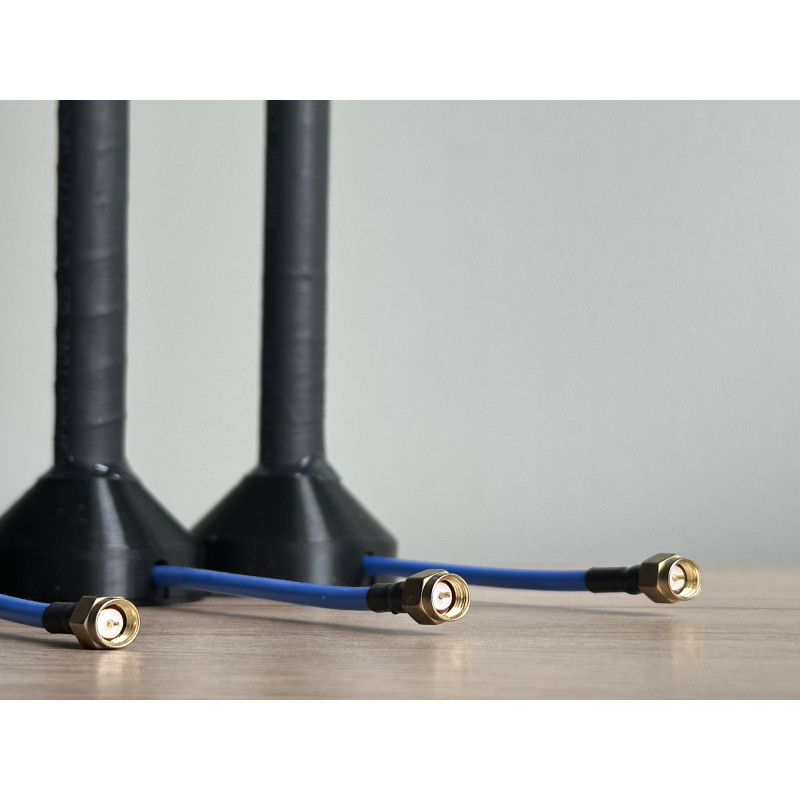

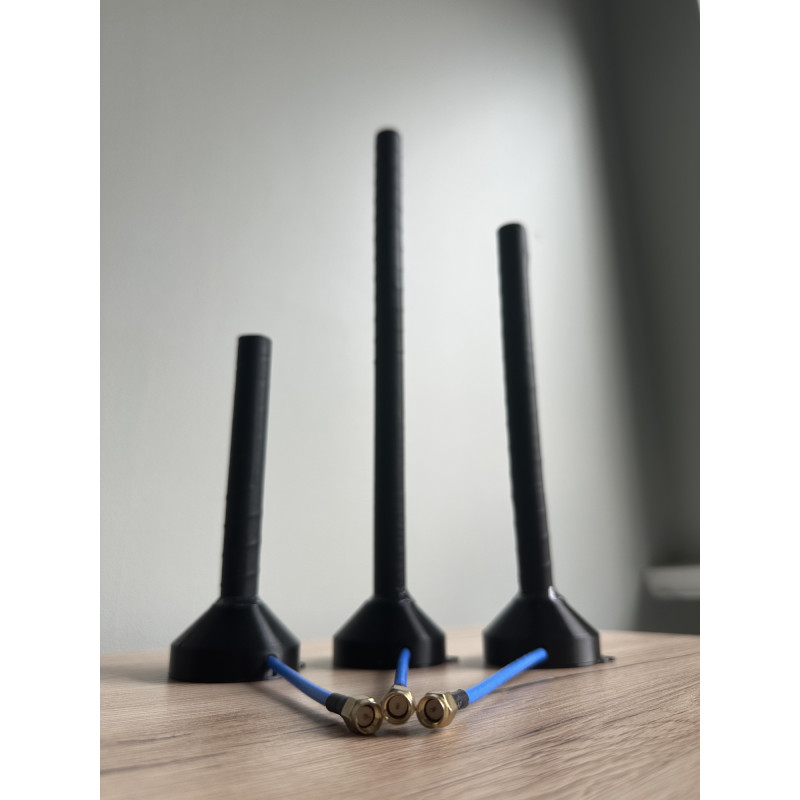

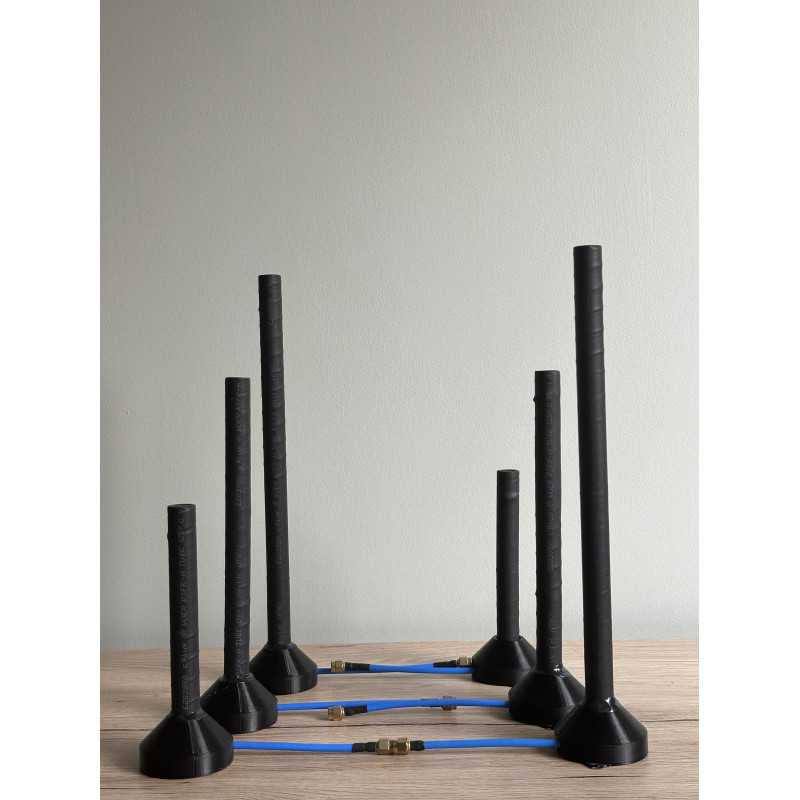

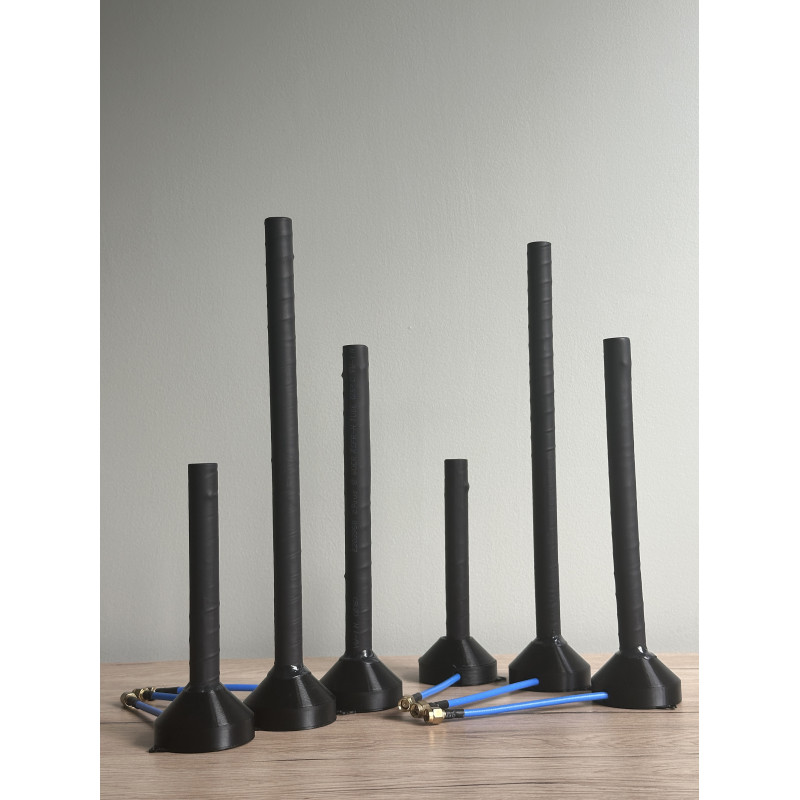

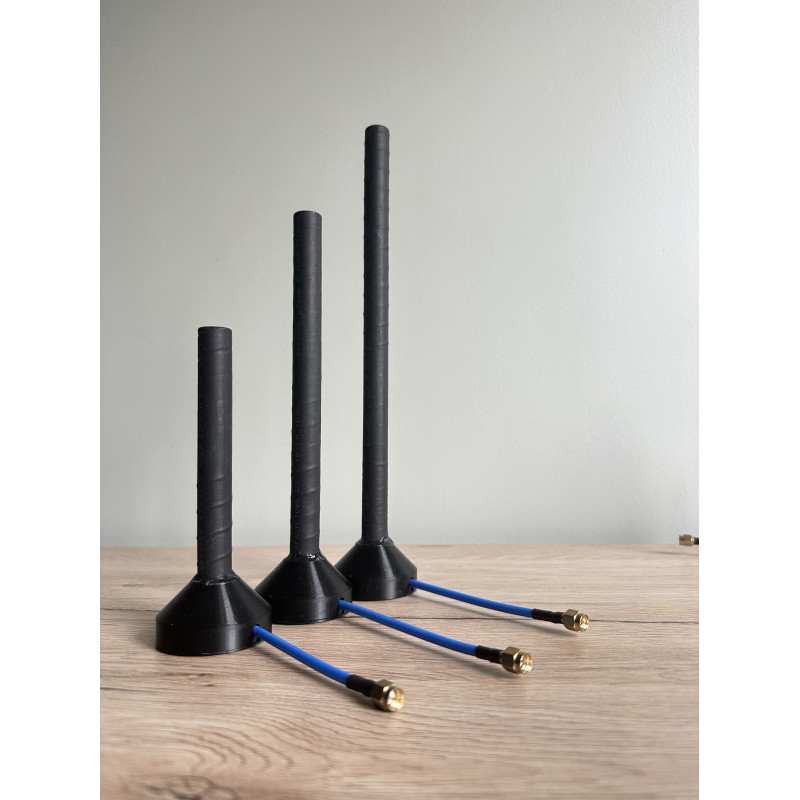

Antenna Helix 4.2-6.0 GHz 16 turns Skyvision (L)

Helix Antenna 4.2-6.0 GHz 16 Turns Skyvision

Introducing the high-performance circular Helix antenna from SKY VISION, optimized for stable radio communication in the 4.2 — 6.0 GHz range. The 16-turn helical design combines compact dimensions with high efficiency, making it an excellent solution for systems requiring circular polarization while maintaining directivity and minimal losses.

Key Features:

• Operating Range: 4.2 — 6.0 GHz.
• Gain: 15 dBi — optimal for creating a directional beam while maintaining compact size.
• Beamwidth: 35 — 45° — provides a balanced beamwidth for stable signal reception and transmission.
• Connector: SMA — standard and convenient for connecting to various equipment.
• VSWR: 1.2 — 1.3 — low standing wave ratio for minimal losses when matched with the feeder.
• Polarization: RHCP / LHCP — right or left-hand circular polarization for flexible adjustment to specific communication conditions.

The Helix 4.2-6.0 GHz 16-turn antenna from SKY VISION combines high gain and a controlled beamwidth. This makes it ideal for applications in short to medium-range wireless links, compact radar systems, data transmission systems, and on mobile platforms (e.g., drones and vehicles) where stable circular polarization is required.

Thanks to its versatile SMA connector, this antenna easily integrates into existing equipment and communication modules. The low VSWR ensures efficient operation in the specified frequency range with minimal reflections and power losses. The ability to operate with both RHCP and LHCP allows for optimal configuration for specific operating conditions and reduces the impact of reflections and polarization differences.

The model belongs to the category: Antennas > Circular Antennas > Helical Antenna. Manufacturer: SKY VISION. Model name: Helix Antenna 4.2-6.0 GHz 16 Turns Skyvision. If you need a reliable circular antenna with high gain and low VSWR for operation in the 4.2-6.0 GHz band, this model will be an excellent choice.
