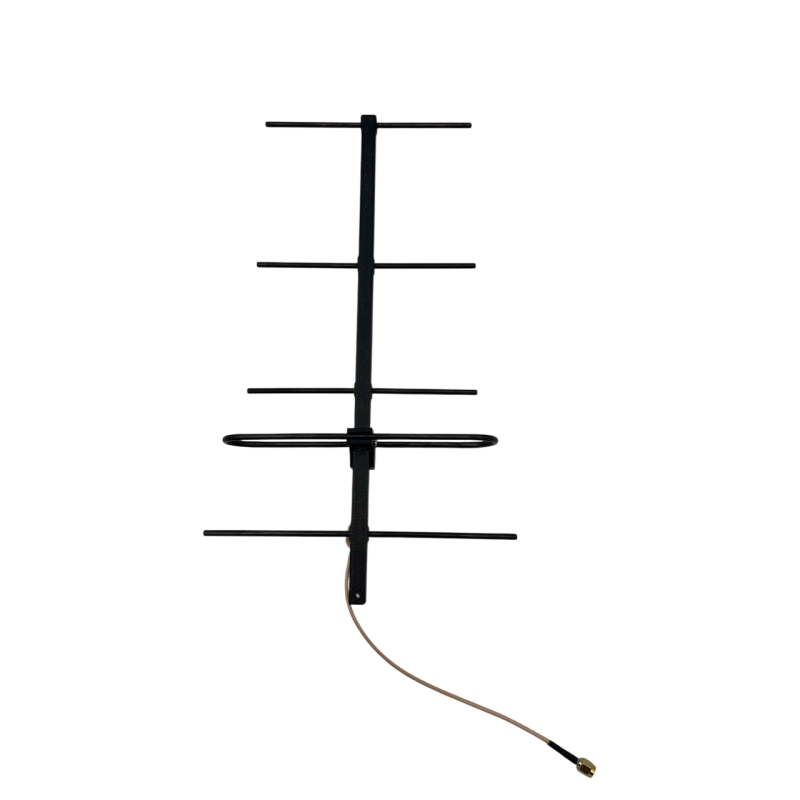

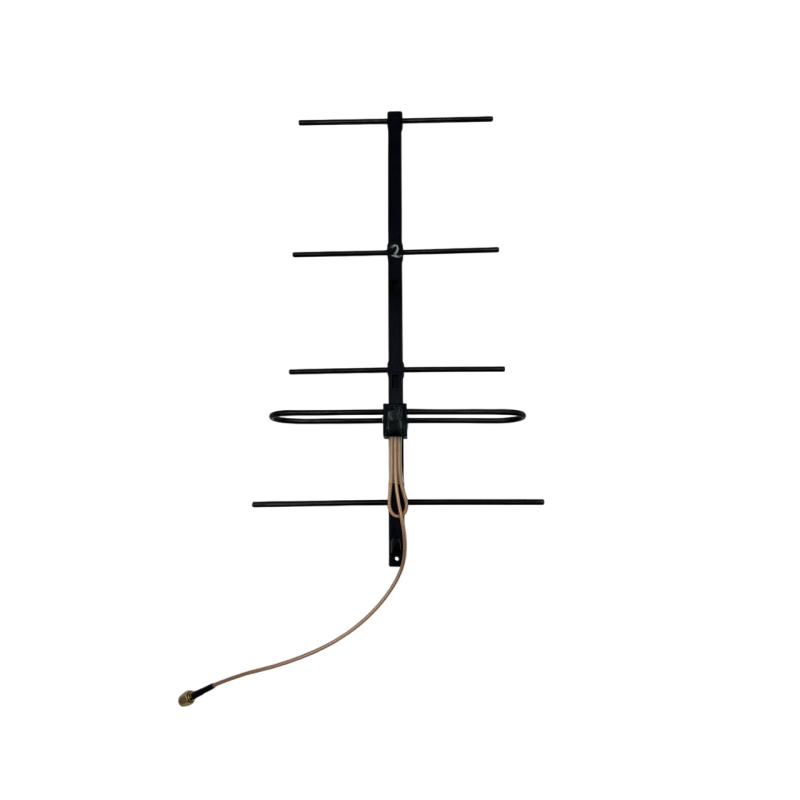

SkyReach Yagi Directional Antenna 700-800MHz 11dBi, 5-Section SMA

The Yagi directional antenna from SkyReach is a reliable and high-performance solution for receiving and transmitting radio signals in high-sensitivity systems. The model is positioned as an antenna with an operating frequency range of 700-800 MHz, a gain of 10-11 dBi, and a compact 5-section design with an SMA connector, ensuring convenient connection to devices.

Technical Specifications

Frequency Range: 700-800 MHz

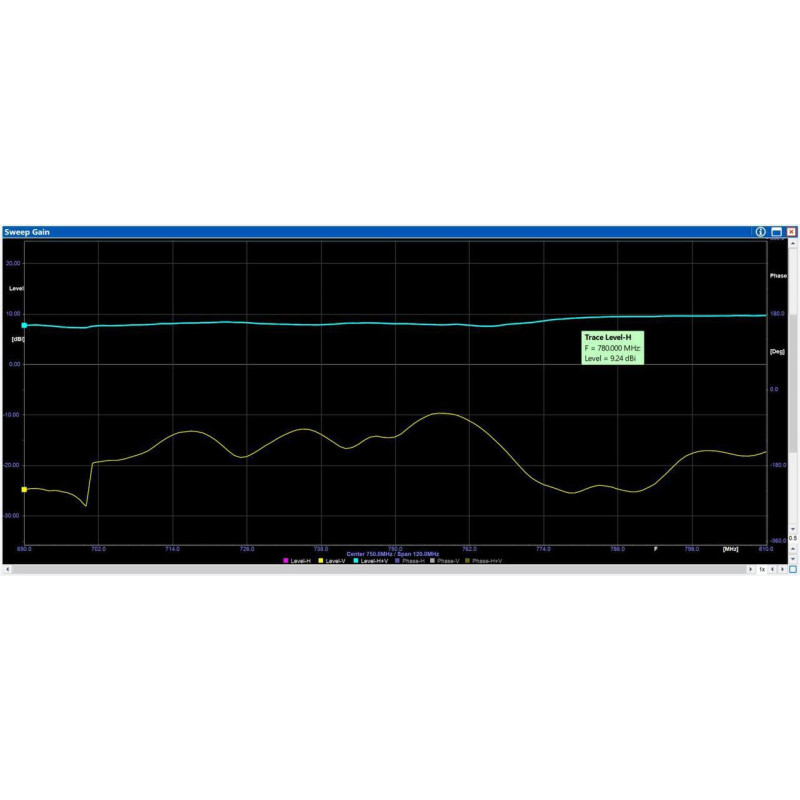

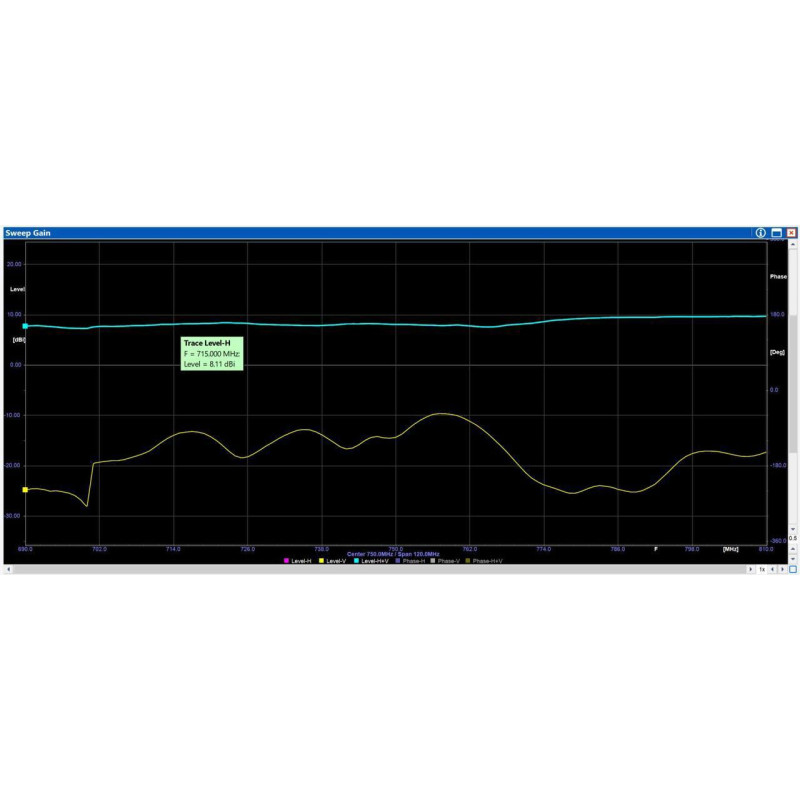

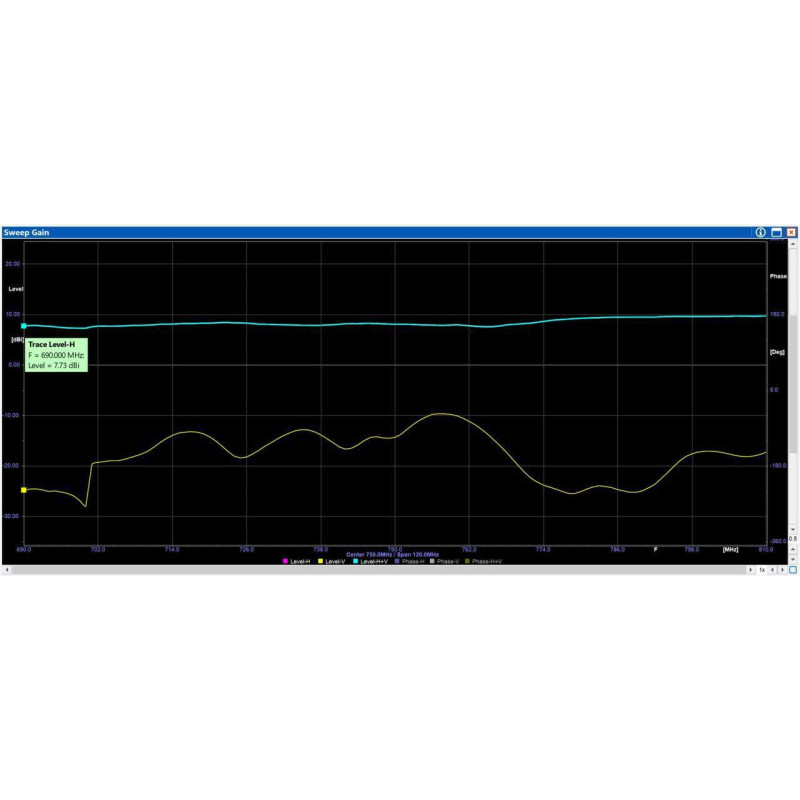

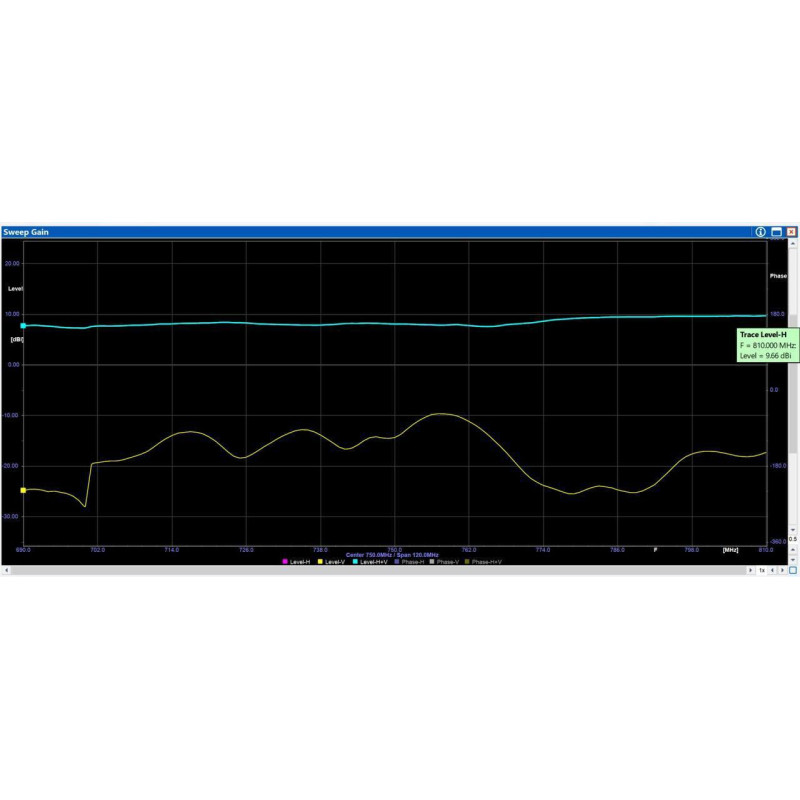

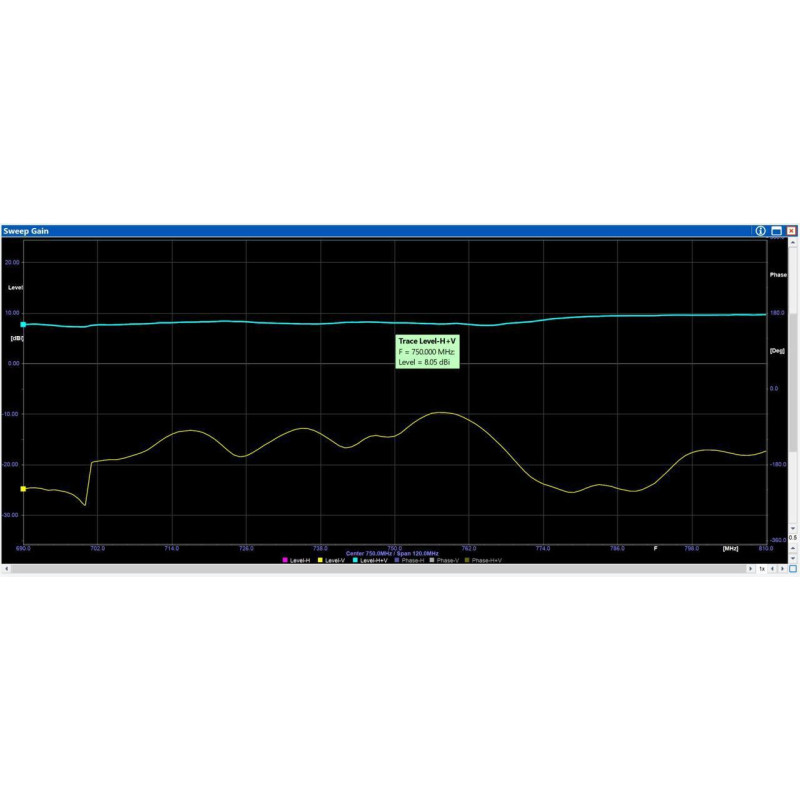

Gain: 10-11 dBi

Polarization: Horizontal (H)

Input Impedance: 50 Ohm

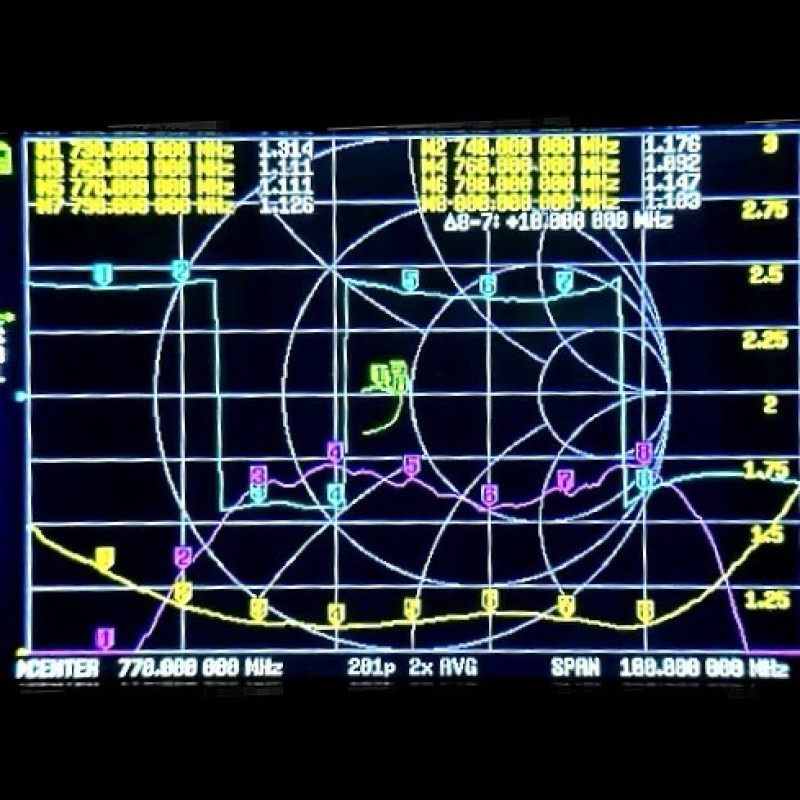

VSWR (Voltage Standing Wave Ratio): 1.0

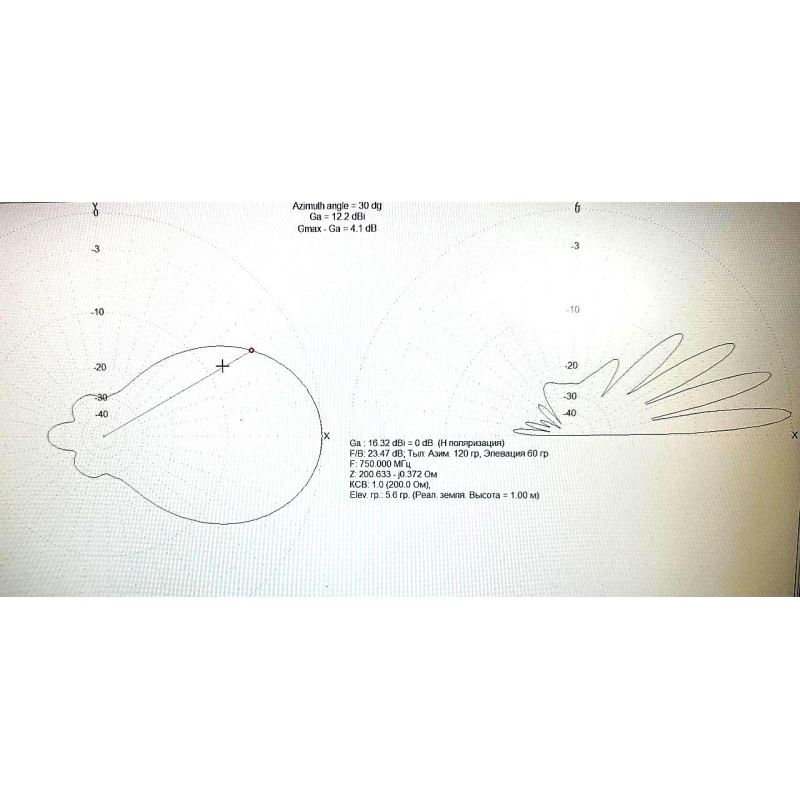

F/B (Front-to-Back Ratio): 23.47 dB

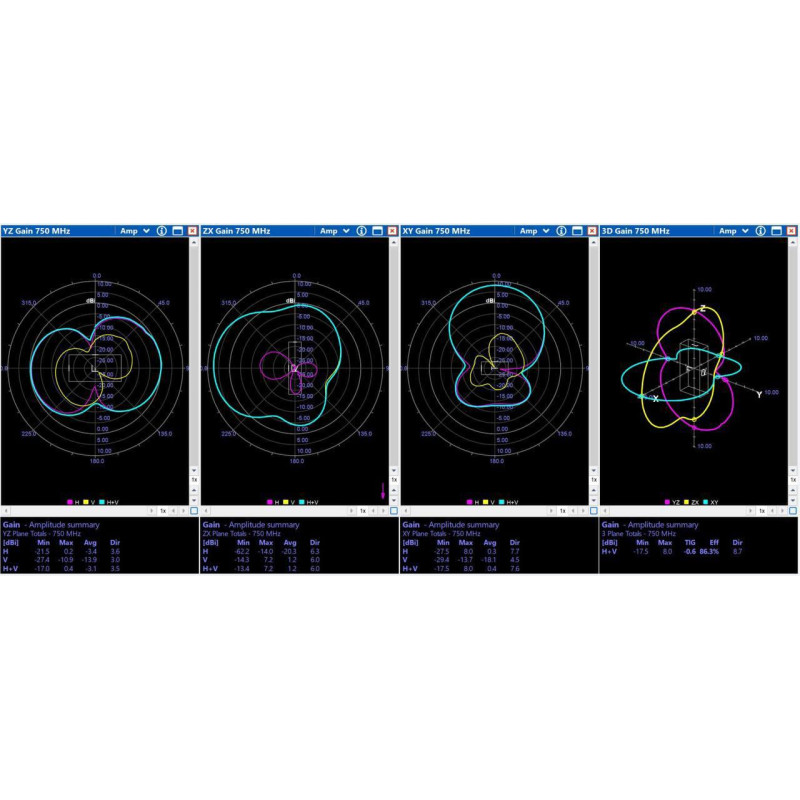

Azimuth Angle: 120°

Elevation Angle: 60°

Operating Height: 1.0 m

Weight: 110 g

Description and Advantages

The antenna combines high gain (up to 11 dBi) and a narrow beamwidth, ensuring stable coverage and long range. Its low weight — only 110 g — and compact 5-section design simplify installation on masts, roofs, or in mobile structures. The SMA connector provides broad compatibility with many receivers and equipment.

This model is ideal for amplifying mobile signals (GSM/3G/LTE 750 MHz), use in amateur radio projects, FPV systems, long-range communication systems, and industrial data transmission solutions. Thanks to optimal matching with transmitters and receivers, the antenna ensures minimal signal loss and high energy efficiency.

Please note: the main operating range is specified as 700-800 MHz, while descriptions separately highlight an effective operating area of approximately 730-810 MHz, indicating good adaptability of the antenna in adjacent frequency bands.

Why Choose This Antenna?

  • Precisely tuned frequency range for stable communication.
  • High signal gain — up to 11 dBi.
  • Lightweight and durable SkyReach construction, capable of operating in challenging conditions.
  • Versatile applications: mobile signal relay, wireless networks, FPV, and industrial applications.

Product category: Yagi Antennas. This Yagi directional antenna is an optimal choice for those who need stable signal, high performance, and easy installation.

Other products in this category here Yagi Antennas

Specifications
Connector type SMA
Housing type directional
Polarization horizontal
Weight (depends on size) 110 g
Antennas
Frequency range 700–800 MHz
Beam angle azimuth 120°, elevation 60°
Enhancements 10–11 dBi
