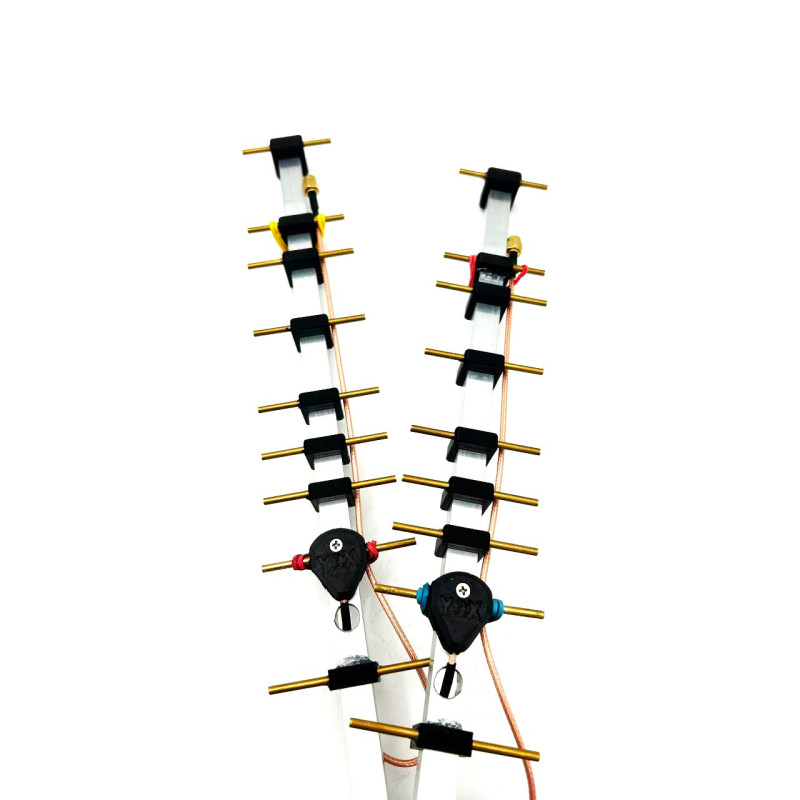

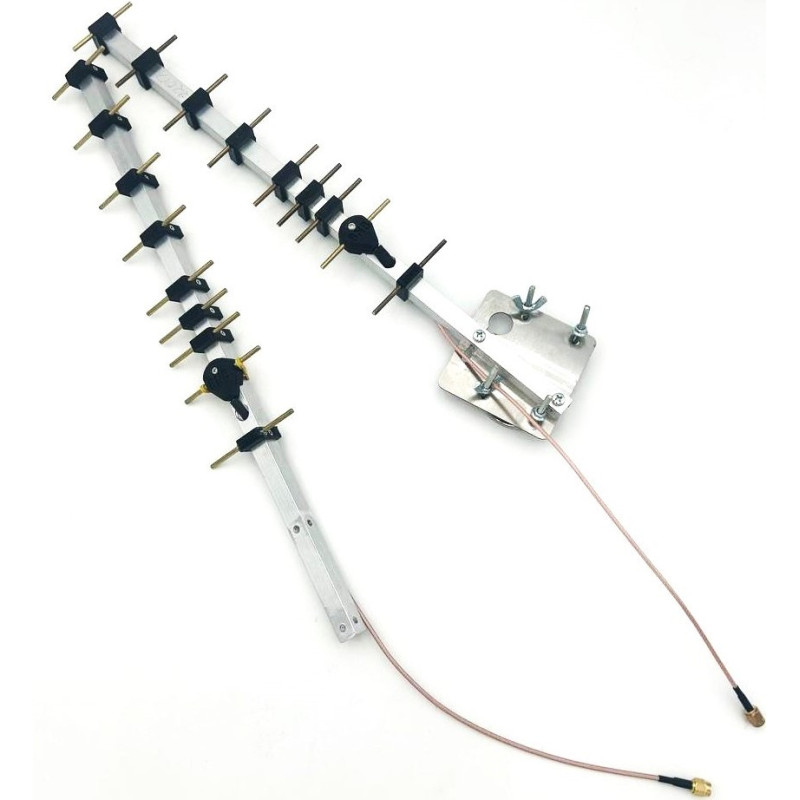

SkyReach Yagi Y9X Directional Antenna for 2.3 GHz — 13.4 dBi, 9 Elements, SMA Connector

Product Overview: The SkyReach Yagi Y9X directional antenna is designed for reliable signal reception and transmission in the 2.3 GHz band. This antenna combines high gain with a compact design, making it an optimal solution for wireless communication systems, telemetry, radio communication, and other projects where directionality and minimal losses are crucial.

Key Advantages:

• 13.4 dBi Gain: Ensures signal amplification over long distances and improves communication quality.
• Precise 35° Beamwidth: Allows focusing energy in the desired direction and reduces interference from the sides.
• Low SWR 1.1: Guarantees minimal reflections and high transmission efficiency.
• Lightweight and Corrosion-Resistant Design: Aluminum body ensures a long service life with a weight of only 180 g.
• Universal Connectivity: Standard SMA connector makes the antenna compatible with many devices.

Technical Specifications:

• Frequency: 2.3 GHz
• Polarization: Linear
• Gain: 13.4 dBi
• Beamwidth: 35°
• Input Impedance: 50 Ω
• SWR: 1.1
• Cable Length: 300 mm
• Connector: SMA
• Material: Aluminum
• Dimensions: 400 × 66 × 22 mm
• Weight: 180 g

Use Cases:

• Wireless communication infrastructure systems requiring a high-gain directional antenna.
• Telemetry solutions and remote sensors where communication channel stability is important.
• Radio networks and amateur radio communication at 2.3 GHz.

Why Choose SkyReach Y9X: This model combines professional-grade technical parameters (13.4 dBi, SWR 1.1, 35°) with easy integration thanks to the SMA connector and low weight. The aluminum construction ensures corrosion resistance and allows the antenna to be installed outdoors without additional protection. Dimensions of 400 × 66 × 22 mm and a 300 mm cable make installation convenient in various configurations.

Product Name: SkyReach Yagi Y9X Directional Antenna for 2.3 GHz with 13.4dBi Gain, 9 Elements, SMA. Manufacturer: SkyReach. Category: Antennas > Yagi Antennas.

The Yagi Y9X antenna — the choice for those who value high performance, precise directionality, and operational reliability.
