SkyReach 750 MHz Yagi Directional Antenna — 13dBi, 1m, 9-Element, SMA

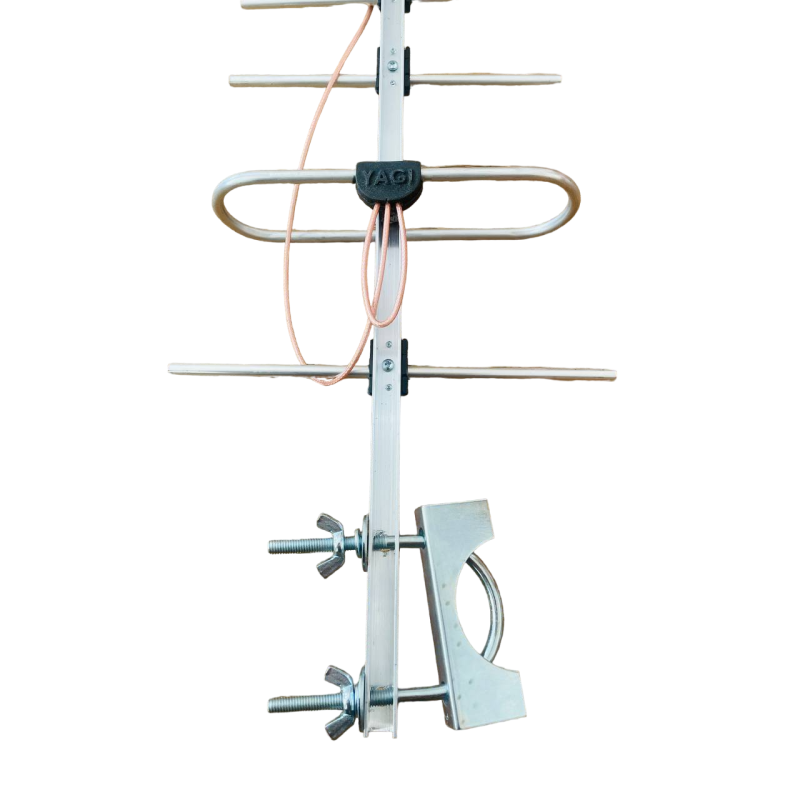

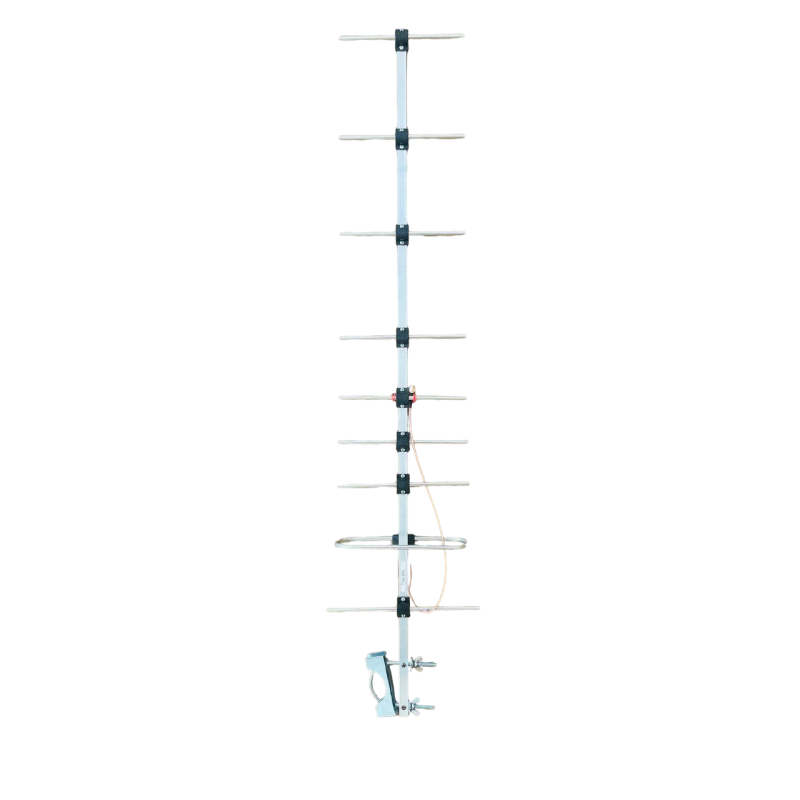

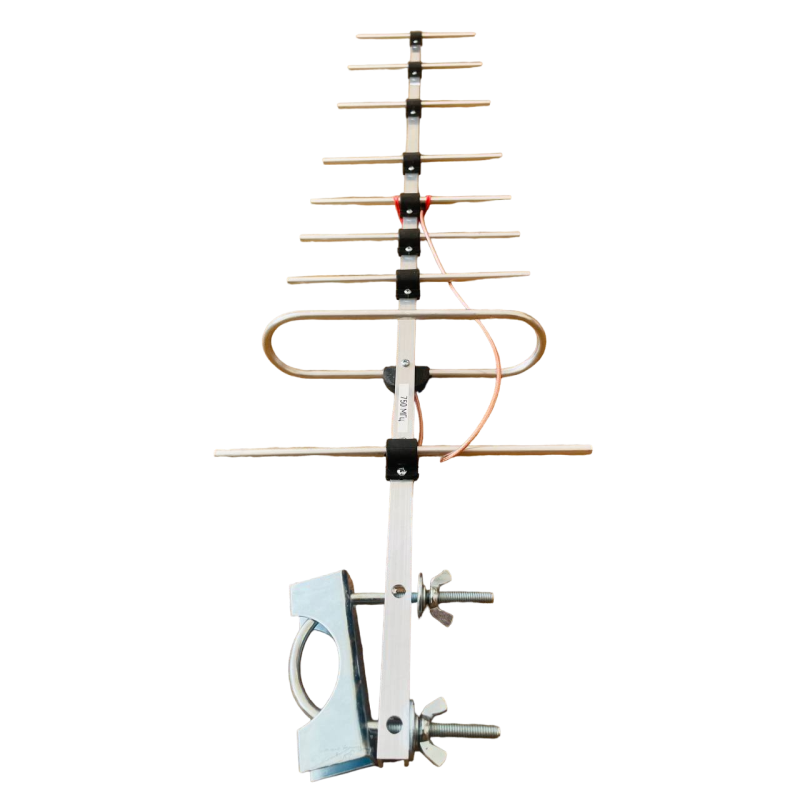

Introducing the SkyReach Yagi directional antenna, designed for operation at 750 MHz. This antenna provides a high gain of 13dBi and a narrow beam angle of 35°, making it an ideal solution for increasing communication range and reducing interference from side signal sources. The 1m long, 9-element aluminum construction ensures lightness, mechanical strength, and corrosion resistance for outdoor use.

Specifications:

• Frequency: 750 MHz
• Polarization: Linear
• Gain: 13dBi
• Beam Angle: 35°
• Input Impedance: 50 Ω
• SWR: 1.1
• Connection Cable Length: 410 mm
• Connector: SMA
• Material: Aluminum
• Dimensions: 1000 x 210 x 60 mm
• Weight: 338 g
• Number of Elements: 9

The antenna is optimized for 50 Ω impedance and has a low standing wave ratio (SWR 1.1), ensuring efficient power transmission and minimal losses. The SMA input connector makes it compatible with many radio and telecommunication devices; the 410 mm connection cable allows for convenient antenna connection in most mounting configurations. The compact dimensions of 1000 x 210 x 60 mm and a weight of only 338 g simplify installation on poles, masts, or building facades.

This SkyReach Yagi model is suitable for applications in networks requiring directionality and increased sensitivity: private and commercial communication systems, repeaters, radio link-based internet provider networks, monitoring systems, and other industrial solutions. The aluminum construction guarantees a long service life even with outdoor operation.

By ordering this antenna, you receive a technically well-designed device with clearly specified parameters: 750 MHz frequency, 13dBi gain, linear polarization, 35° beam angle, 1.1 SWR, 50 Ω input impedance, SMA connector, 410 mm connection cable length, aluminum material, 1000 x 210 x 60 mm dimensions, 338 g weight, 9 elements, 1m antenna length.
