Amulet-2127 40C 4M automotive dome-type EW system offers high-tech solutions for neutralizing kamikaze drones and other UAVs, designed for use in complex combat conditions. Thanks to innovative technologies, these devices provide full protection within a radius of up to 150 m.
• Spherical protection field: A complex of four or six antennas (depending on the model, one or three compact "buckets" on the roof) creates an ideal dome field that effectively blocks drone control signals.
• High reliability: Resistance to vibrations and shocks ensures stable operation even in harsh front-line conditions.
• Energy efficiency: The devices are equipped with autonomous batteries that are easily charged both from a vehicle and from a standard power grid.
• Possibility of restoring all elements and components in case of damage or impact.
Key features:
«AMULET- 2127 40С 4М»
- Suppression frequency range: 2.1 - 2.7 GHz
- Angular radiation sector 360 degrees
- Protection class IP 21
- Radiation generator power - 40 W
- Range: up to 150 m
- Operating time: up to 55 min.
- Weight: 15 kg
- Audio and diode indication of battery discharge
Advantages of AMULET devices
LED notification in case of module(s) malfunction. There is no need to check the device before each deployment; in case of malfunction or partial damage, antenna loss, or device damage for other reasons, the LED indicator will notify which module and at what frequencies is not working. There were many requests when ordering, now there is no need to bother the EW chief on every occasion.- Versatility: Suitable for mounting on equipment or vehicles.
- Autonomy: The battery system supports alternative power sources (ECOFLOW, etc).

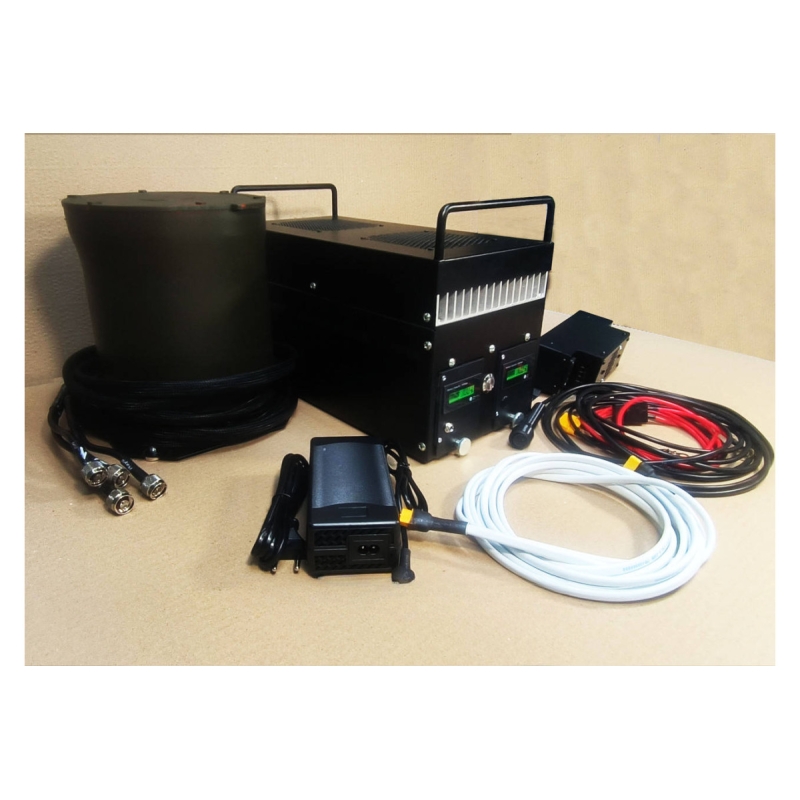

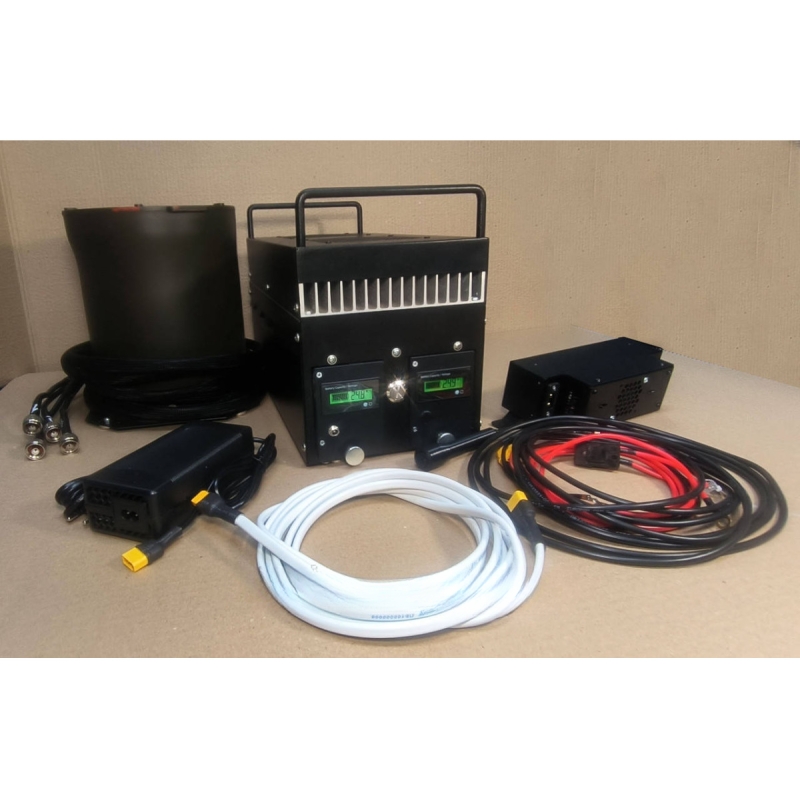

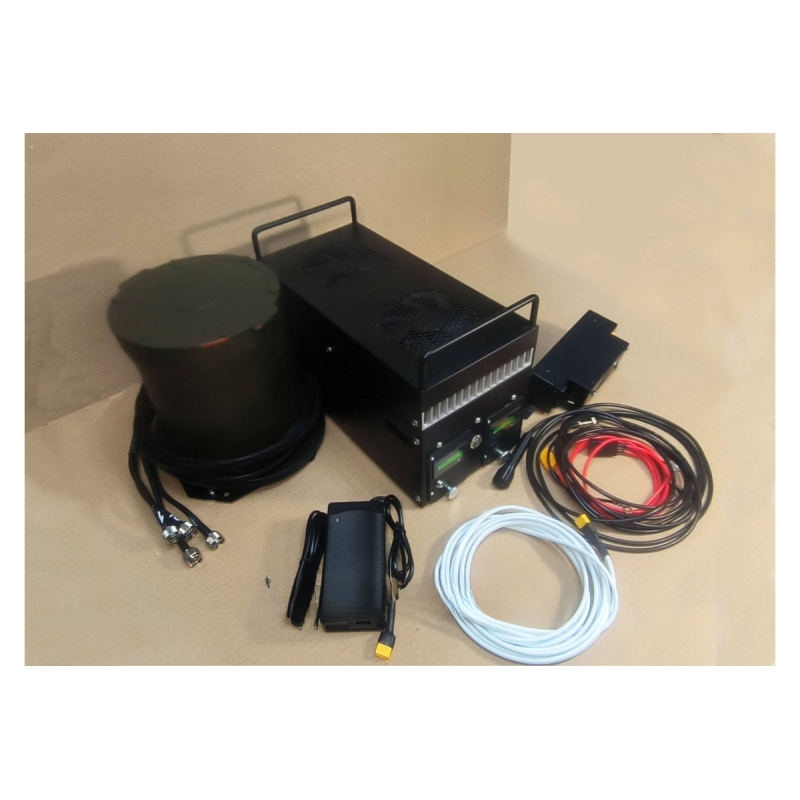

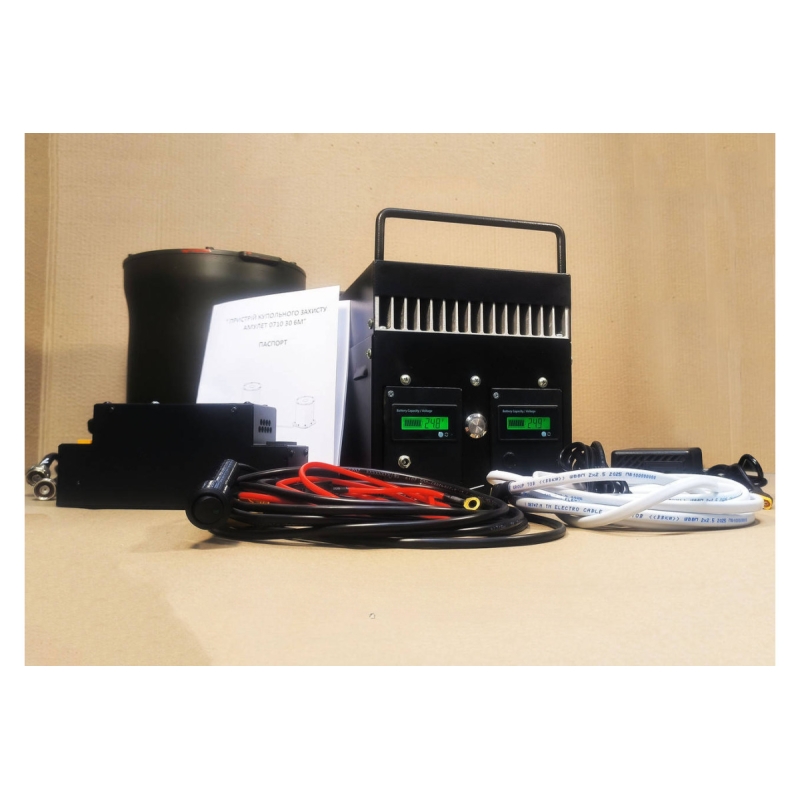

- Full set: Chargers, cables, fuses, manual.
- Easy installation: Does not require special technical knowledge.
- Two chargers for car and mains
- External spherical action antennas
- Remote on-off button
- Calibration of each module, output power corresponds to the declared, we do not assemble "out of the box" without measuring the actual output power.
- Calibration of each antenna with VSWR not higher than 1.5 (we have a full closed production cycle)
Before shipping to the client, each device undergoes a series of checks:
• checking fasteners, components, dimensions, wires
• checking frequency range and radiation power
• automated 45-minute on-off stress test
• separate antenna check
