Product Code: FA33-23192-33
1 403 грн.
Buy this product in 1 click:
We will deliver this product:
Payment
Description
| Characteristic | Details |
|---|---|

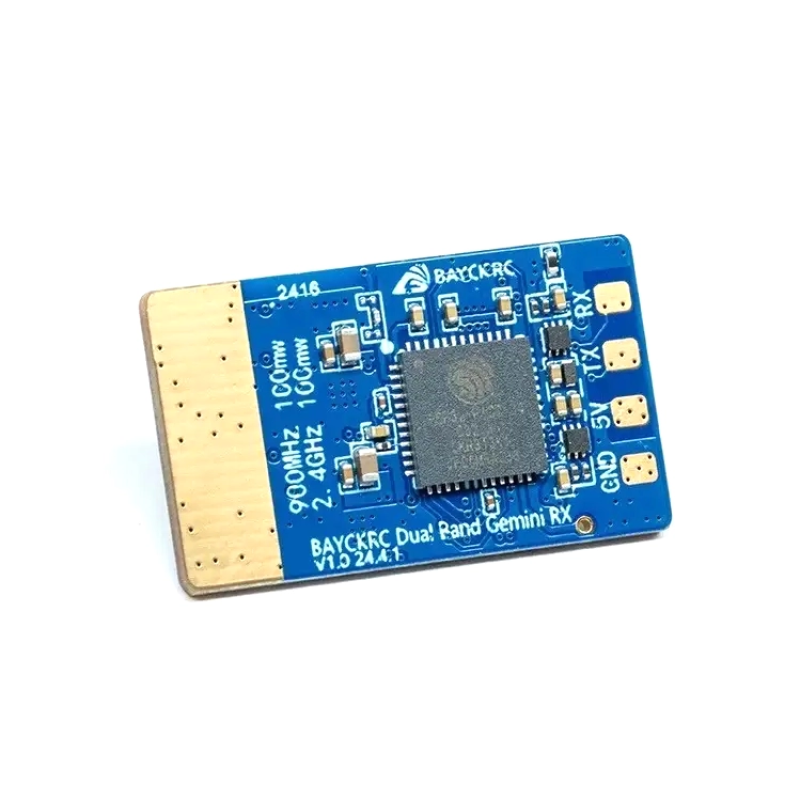

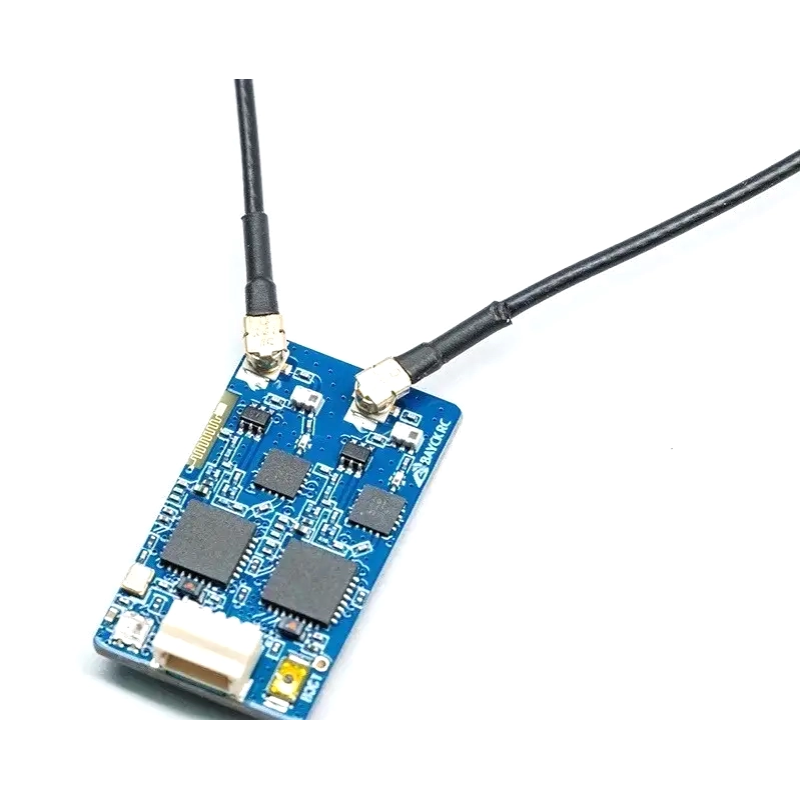

| Type | ELRS Dual‑Band Gemini Receiver |
| Chipset | LR1121 (Semtech), ESP32‑PICO, TCXO |
| Frequency Bands | 900 MHz (Sub-GHz, 150–960 MHz) and 2.4 GHz LoRa |
| Max Power | 100 mW for each band |
| Reception Modes | 5 modes: 900 MHz diversity, 900 MHz Gemini, 2.4 GHz diversity, 2.4 GHz Gemini, 900 MHz + 2.4 GHz Dual-Band Gemini |
| Protocols | ExpressLRS (LoRa), FLRC not supported; 2.4 GHz D and F modes — not supported |

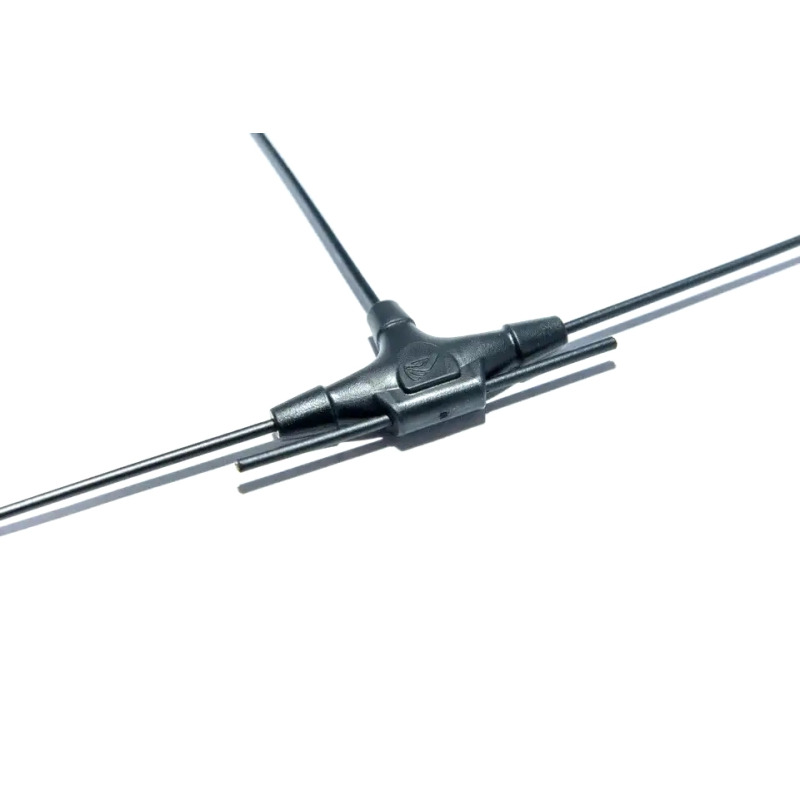

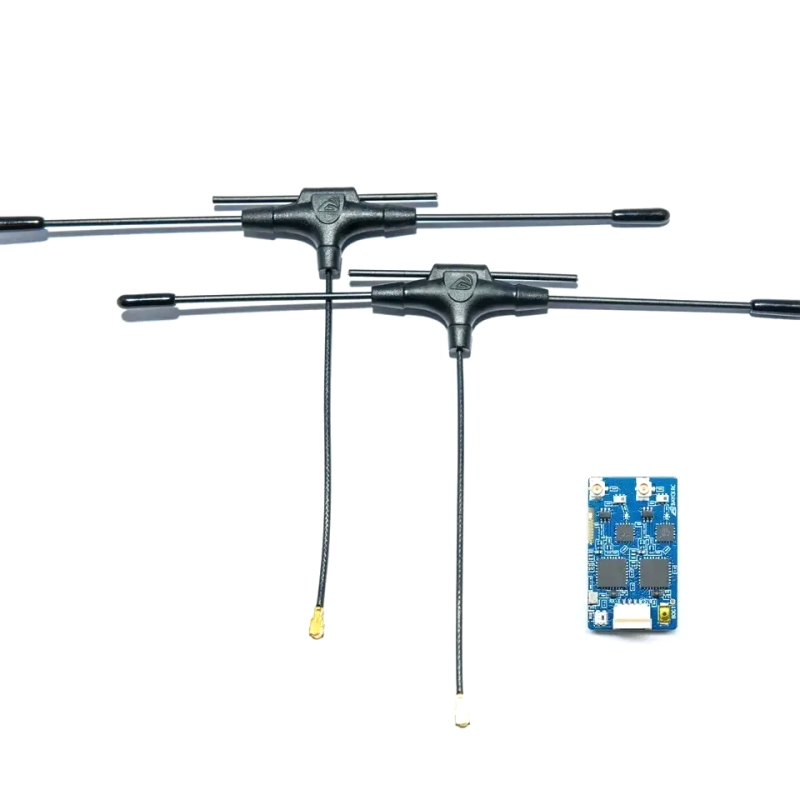

| Antennas | Two T-shaped connected antennas (IPIEX) |
| Input Power | 3.6 V – 5.5 V |
| Number of Antennas | Dual-antenna support, diversity/colocation configuration depending on mode |
| Dimensions / Weight | 27 × 16 mm, 1.8 g without antenna |
| Indicator | RGB indicator for connection status, binding, and updates |
Advantages
-
Maximum Communication Reliability — Gemini mode provides simultaneous transmission in two bands, significantly reducing packet loss and interference
-
Flexible Configuration — the choice between diversity and Gemini modes allows adaptation to specific flight conditions (e.g., long distances or dense RF environments).
-
Compactness and Low Weight — easily integrated into drone designs with limited space and weight.
-
Ease of Use — standard CRSF protocol for FC connection, Wi‑Fi firmware update support, RGB indicator for intuitive status control
