Product Code: 64787-999
In Stock
240 000 грн.
Buy this product in 1 click:
Main specifications
Cooling type:
Active + Passive
Frequency range:
300 – 5800 MHz
Jamming range:
50 – 300 m
Power source:
DC
Power Supply:
24 / 28 V
All specifications
We will deliver this product:
Payment
Description

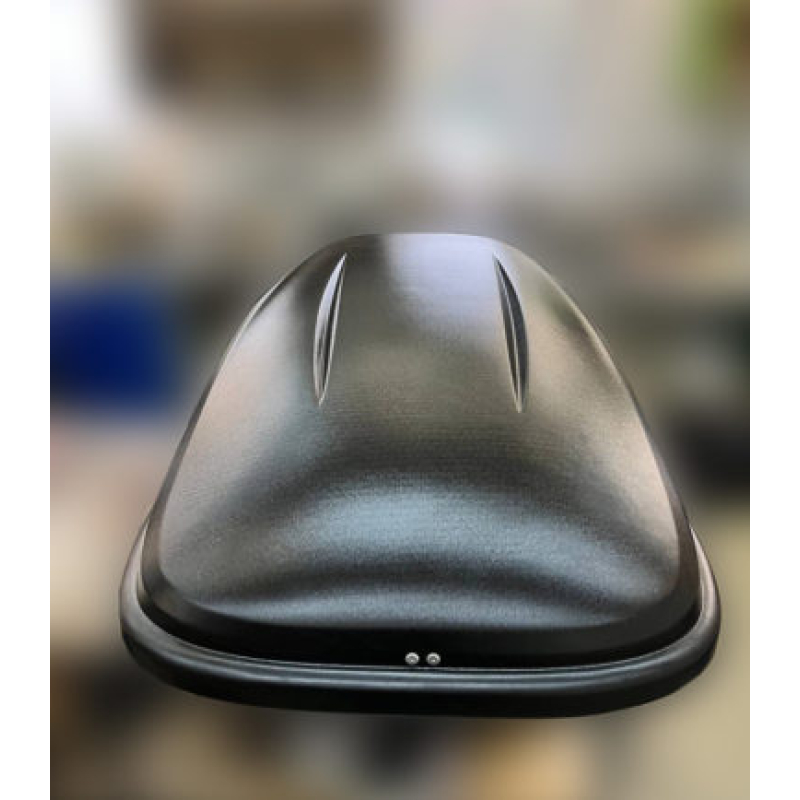

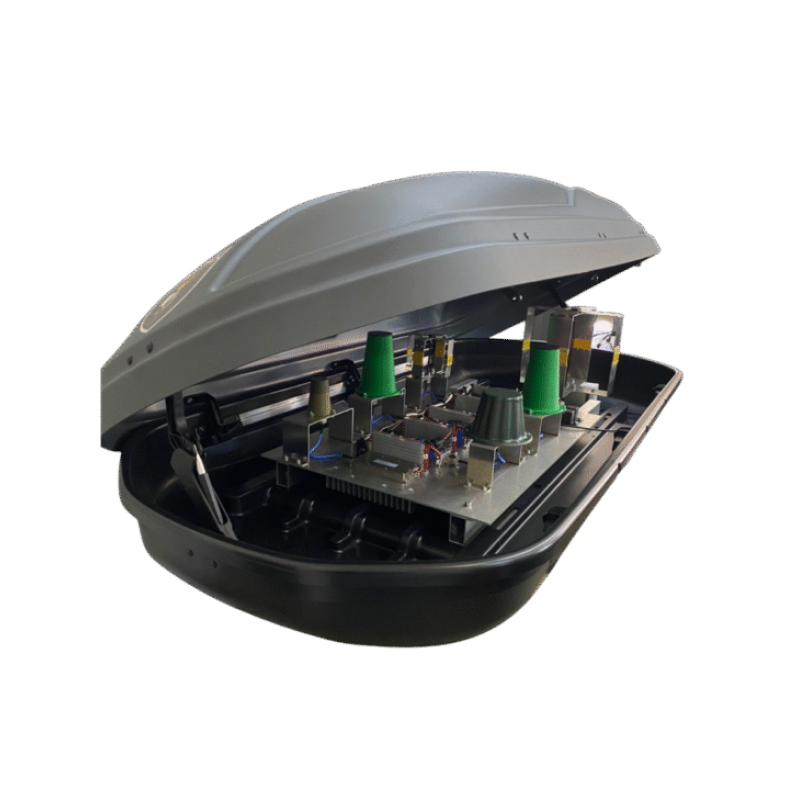

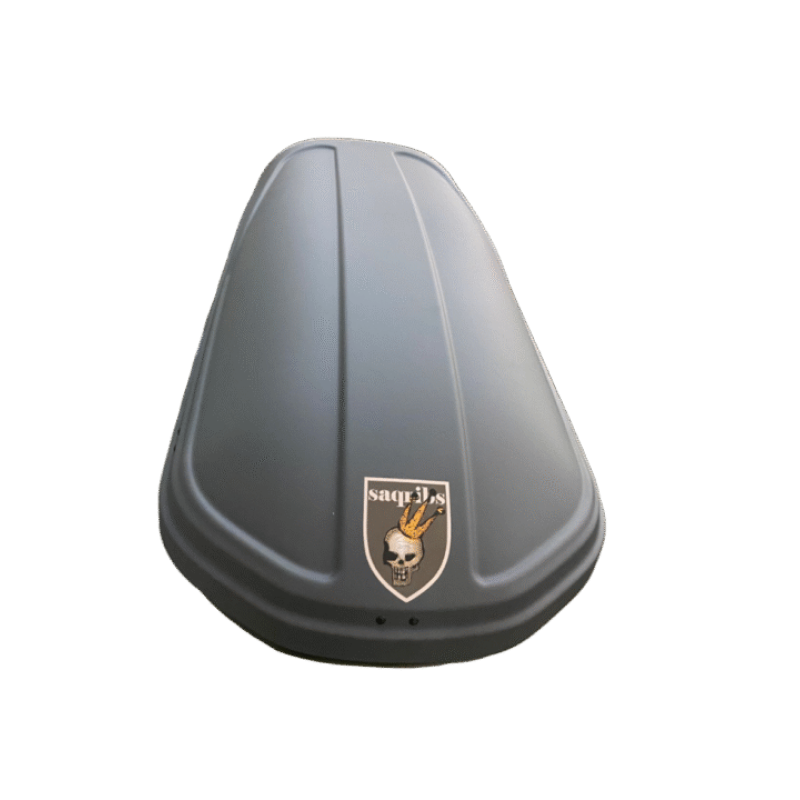

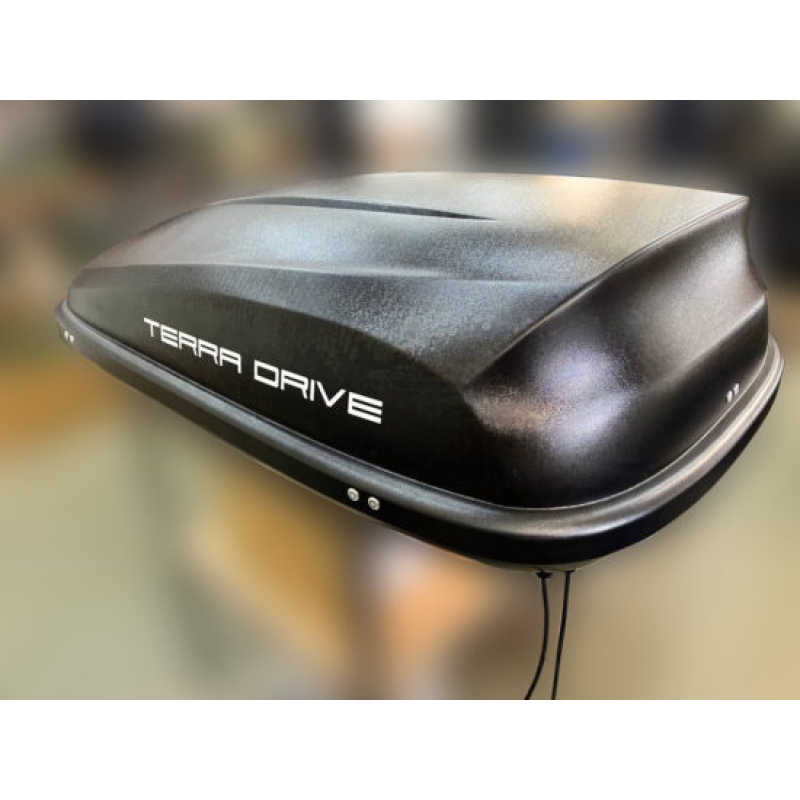

EW Jammer «Saqribs» 6 (300-5800 MHz) (vehicle-mounted – car box)

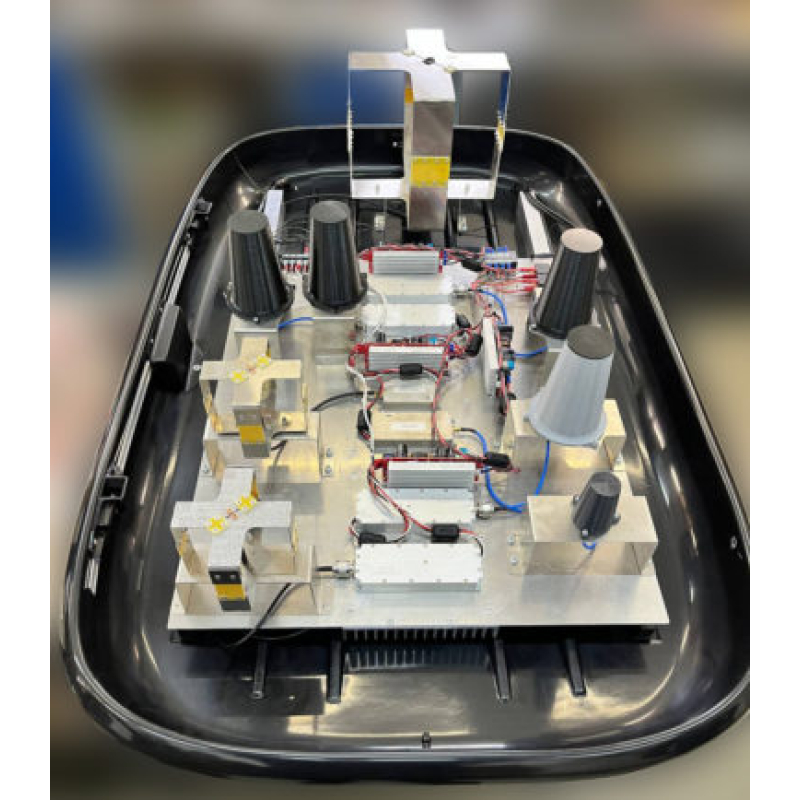

The «Saqribs» 6 EW jammer (car box) is designed to suppress control channels of FPV and "kamikaze" drones. Equipped with quadrifilar omnidirectional and helical antennas, it provides effective protection within a radius of 50 to 300 meters.
Saqribs 6 (car box) package contents:
- EW device «Saqribs» (car box) — 1 pc.
- omnidirectional antenna (quadrifilar) — 2 pcs.
- helical antenna — 4 pcs.
- control panel (5 m) — 1 pc.
- car mounting kit — 1 set.
- passport and manual — 1 pc.
- power cable to battery (5 m) — 1 pc.
- LiFePO4 24V 160A battery (recommended, external) — 1 pc.
- charger — 1 pc.
- EW diagnostic device MINI BOB — 1 pc.
Specifications
| No. | Name | Value |
| 1 | Weight | 22.5 kg |
| 2 | Box dimensions | 1470×750×440 mm |
| 3 | Total output power | 400 W |
| 4 | Operating voltage range | 20–28 V DC |
| 5 | Power per channel | 50/100 W |
| 6 | Blocking radius | 50–200 m (* assuming 1–4 km to 1W remote) 150–300 m (* assuming 5–10 km to 1W remote) |
| 7 | Omnidirectional antennas | quadrifilar, vertical helical |
| 8 | Power supply | onboard power 24/28 V or from external 24 V battery |
| 9 | Casing | metal, IP65 |
| 10 | Number of suppression bands | 6 |
| 11 | Operating temperature | -20…+50 °C |
| 12 | Frequency blocking ranges | 50 W — 300–400 MHz 50 W — 1000–1100 MHz 100 W — 2100–2300 MHz 100 W — 2300–2600 MHz 50 W — 3100–3300 MHz 50 W — 5700–5800 MHz |
| 13 | Consumption | 900 W / 70 A·h |
| 14 | Cooling | active + passive |
Specifications
Cooling type
Active + Passive
Frequency range
300 – 5800 MHz
Jamming range
50 – 300 m
Power source
DC
Power Supply
24 / 28 V
Trench EW Jammer
Number of jamming channels
6
Total system power
400 W
Power per channel
50W / 100W
Suppression Frequencies
300–400 MHz; 1000–1100 MHz; 2100–2300 MHz; 2300–2600 MHz; 3100–3300 MHz; 5700–5800 MHz
Antenna type
Omnidirectional (quadrifilar) + helical
