Omnidirectional dome protection system had-5 (omni) "Closed Sale"

Manufacturer: Piranha-Tech

The price is indicated for marketing purposes. Please inquire about the actual price with our manager. The calculation is made individually according to your request!

Product ID: 4705

Product type: EW Jammers > Trench EW Jammers

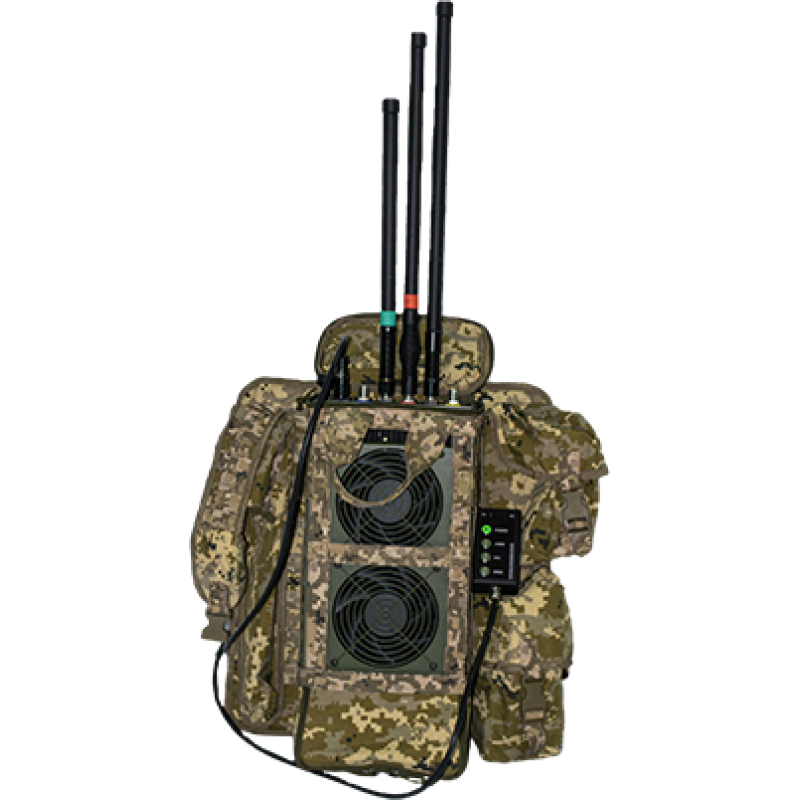

The had-5 (omni) omnidirectional dome protection system is a mobile backpack-format device designed for professional counteraction against unauthorized UAV flights. This portable solution combines compactness, high power, and rapid deployment in the field, making it an effective tool for perimeter defense, protection of critical facilities, and quick response to aerial threats.

Technology Description

The device uses directional radio jamming technology with a narrow beam angle, allowing it to block drone operation in selected frequency bands. Due to the directional nature of the jamming, the risk of affecting adjacent systems is reduced, and the backpack format ensures operational mobility and rapid deployment to necessary locations.

Specifications

Key technical parameters:

• Maximum output power: 30/50W per channel
• Maximum number of simultaneously operating channels: 5
• Antenna polarization: vertical, horizontal
• Backpack weight with battery: up to 12kg, rifle: up to 5kg
• Battery life: at least 30 minutes*
• Protection rating: IP55

Operating Principle

The system's operating principle involves generating directional radio interference with a narrow beam angle in selected frequency bands. The system focuses on drone communication and navigation channels, neutralizing their ability to receive commands from the operator or correct navigation signals, which leads to disruption of the autopilot and navigation modules.

Counteraction Effect

After exposure to had-5 (omni), the following consequences are possible for uncontrolled UAVs:

• Loss of operator control or significant difficulties in control
• Loss of video signal from the drone
• Inability for drones to use geopositioning systems
• Loss of telemetry from the drone, which may lead to a crash, loss of orientation, mission interruption, or forced return to the takeoff point

Using the system can disrupt drone piloting or make it impossible. In particular, loss of connection with geopositioning systems significantly complicates autopilot operation and can lead to an emergency situation or forced landing of the aircraft.

The backpack format and optimal weight (up to 12kg with battery, rifle up to 5kg) ensure convenient transportation and rapid deployment even in hard-to-reach areas. The IP55 protection rating guarantees resistance to dust and moisture during operation in field conditions.

The Piranha-Tech system is designed for professional use by security forces, special units, and security services that require a mobile, reliable, and powerful means of countering drone threats. Other clarifications regarding configuration, charging times, operating modes, and adaptation to specific frequency bands will be provided by our manager during individual calculation.
