Product Code: 64786-999
In Stock
390 000 грн.
Buy this product in 1 click:
Main specifications
Cooling type:
Hybrid
Frequency range:
200–5960 MHz
Jamming range:
50–300 m
Power source:
Automotive / Mains / Battery-Powered
Power Supply:
24V DC
All specifications
We will deliver this product:
Payment
Description

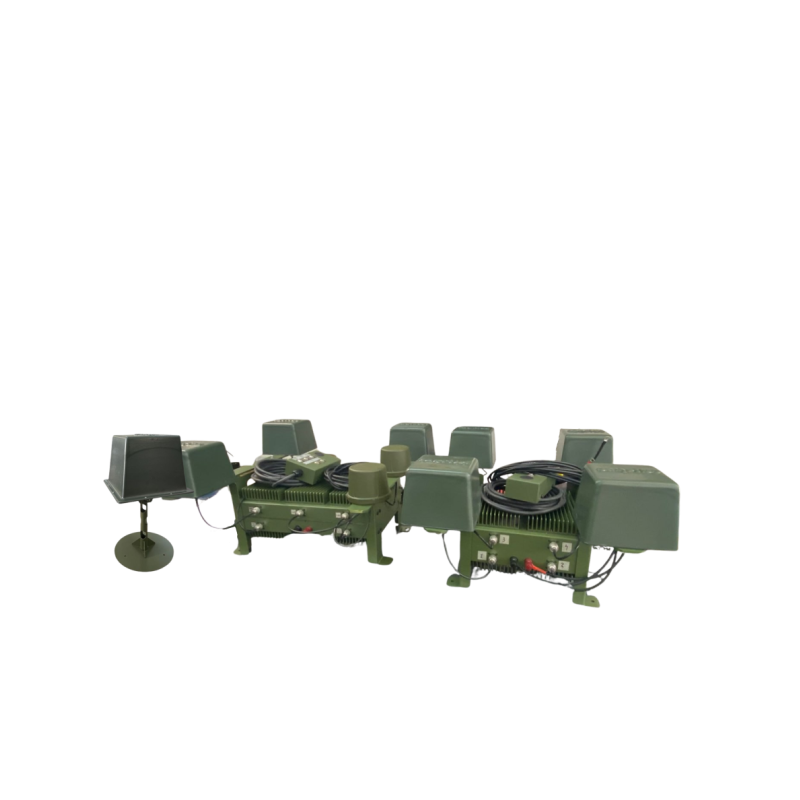

EW System "Saqribs" 10 (Vehicle-Mounted)
The "Saqribs" 10 EW system (vehicle-mounted) is a basic model of an electronic warfare device designed for effective suppression of drone control channels, including FPV drones and "kamikaze" drones. The device creates directional radio interference in a specified frequency range within a radius of up to 300 meters, with the ability to precisely adjust for specific combat missions.
Depending on customer needs, the configuration of blocking frequencies, antenna type (omnidirectional dome, quadrifilar, or directional helical), and cooling system (passive, active, or combined) are determined.
Saqribs 10 Delivery Set:
- EW device "Saqribs" 10 — 2 pcs.
- omnidirectional antenna (dome, quadrifilar, directional) — 10 pcs.
- control panel — 2 pcs.
- magnetic mounts — 1 set
- passport and manual — 1 pc.
- power cable (4 m) — 2 pcs.
Technical Specifications
| No. | Item | Value |
| 1 | Weight | 18.5 kg |
| 2 | Dimensions | 650×400×370 mm |
| 3 | Total Output Power | 500 W |
| 4 | Operating Voltage Range | 24 V DC |
| 5 | Power per Channel | 50/100 W |
| 6 | Blocking Radius | 50–200 m (* assuming 1–4 km to 1W remote) 150–300 m (* assuming 5–10 km to 1W remote) |
| 7 | Omnidirectional Antennas | - quadrifilar, horizontal polarization - discone, vertical polarization - helical directional (1–6 GHz range) (selectable) |
| 8 | Power Supply | onboard power or mains can be charged from external battery |
| 9 | Casing | metal, IP65 |
| 10 | Number of Suppression Bands | 10 (selectable) |
| 11 | Operating Temperature | -20…+50 °C |
| 12 | Frequency Blocking Bands | Selectable: 200-300 MHz 50/100 W 300–400 MHz 50/100 W 400–500 MHz 50/100 W 500–600 MHz 50/100 W 600–700 MHz 50/100 W 700–800 MHz 50/100 W 800–900 MHz 50/100 W 900–1000 MHz 50/100 W 1000–1100 MHz 50/100 W 1160–1280 MHz 50/100 W 1420–1530 MHz 50/100 W 1550–1650 MHz 50/100 W 2100–2300 MHz 50/100 W 2400–2480 MHz 50/100 W 4500–4700 MHz 50/100 W 5150–5250 MHz 50/100 W 5550–5570 MHz 50/100 W 5750–5860 MHz 50/100 W 5860–5960 MHz 50/100 W |
| 13 | Consumption | 10×100–110 W |
| 14 | Cooling | passive / active / combined |
Specifications
Cooling type
Hybrid
Frequency range
200–5960 MHz
Jamming range
50–300 m
Power source
Automotive / Mains / Battery-Powered
Power Supply
24V DC
Trench EW Jammer
Number of jamming channels
10
Suppression Frequencies
200–5960 MHz
Antenna type
Quadrifilar, discone, helical directional
