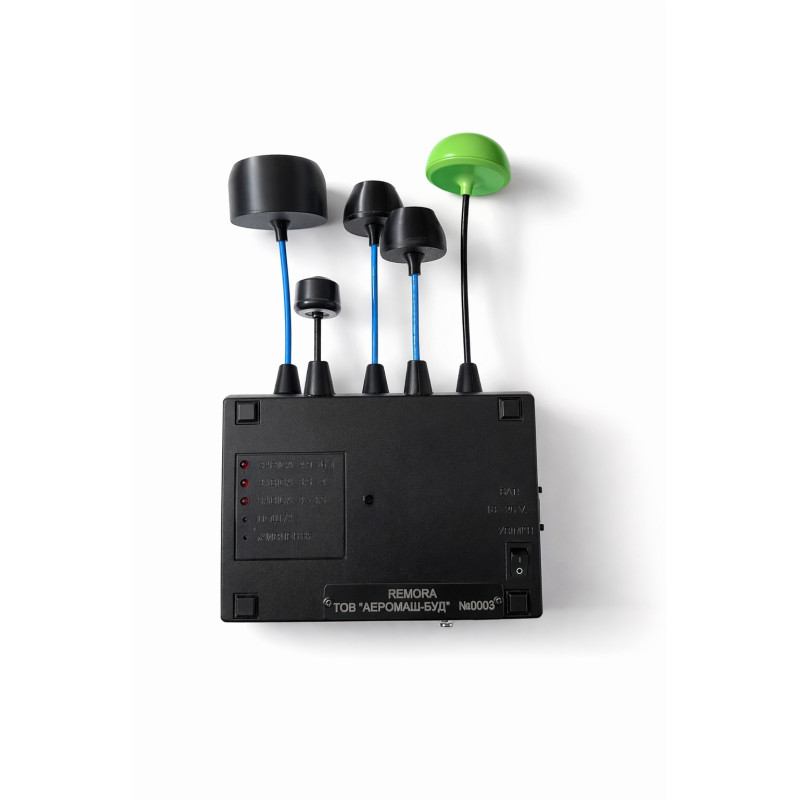

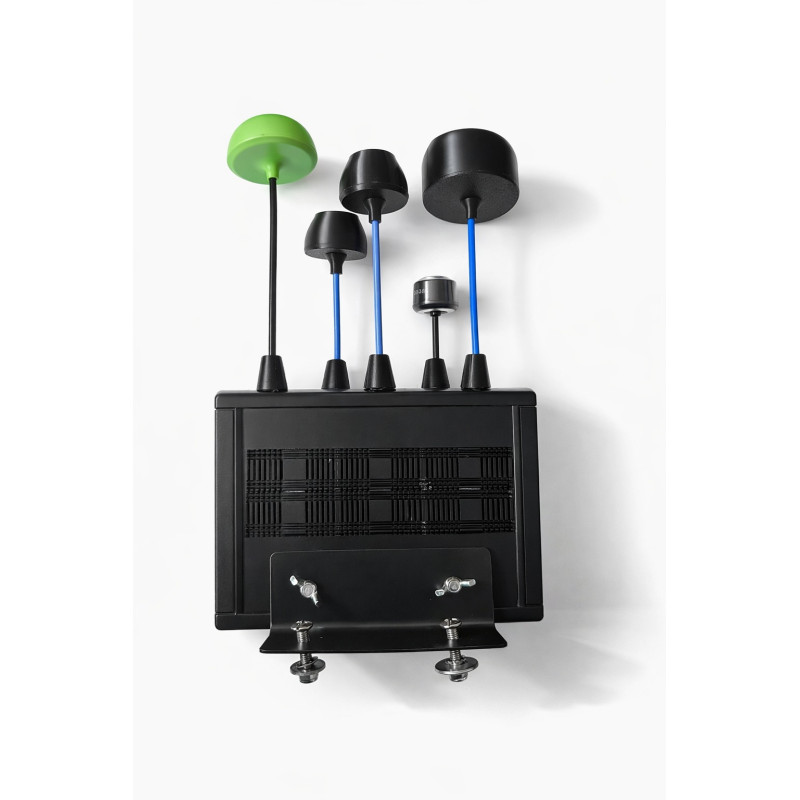

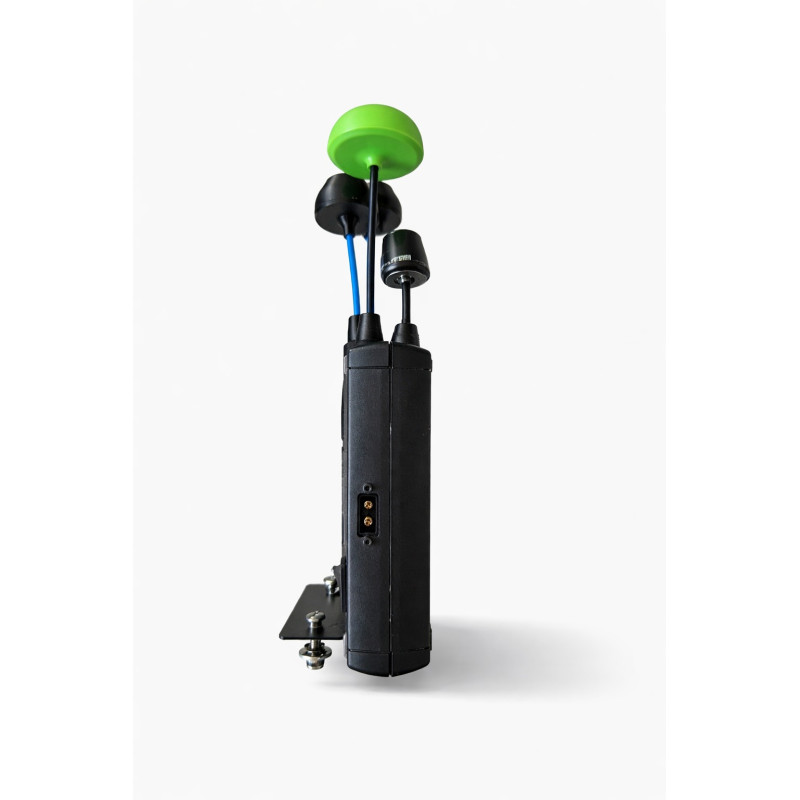

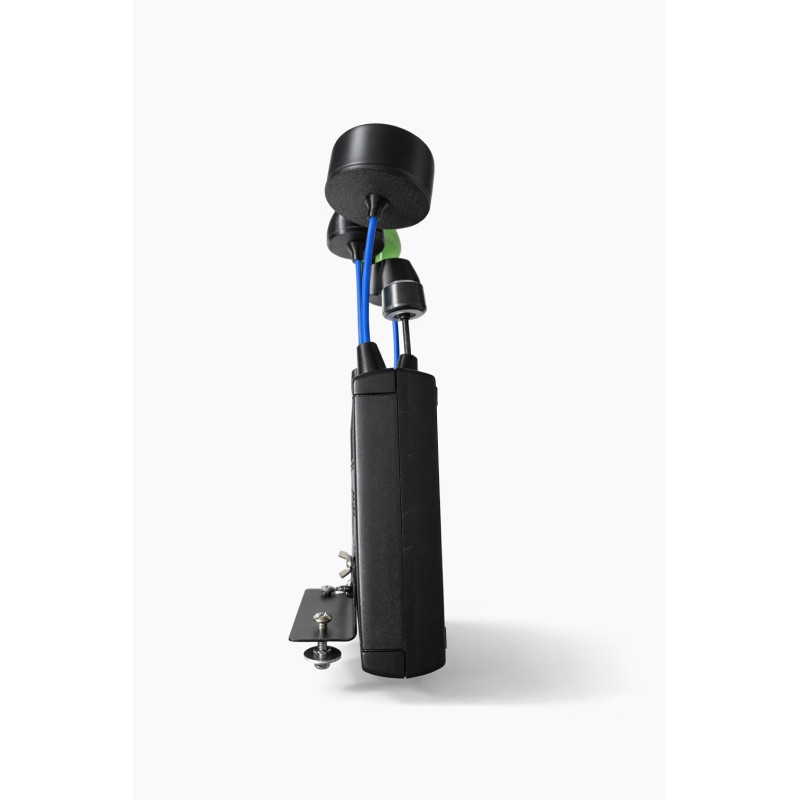

REMORA 3D Automatic FPV Video Channel Jammer

REMORA 3D is an automatic FPV drone video channel jamming device designed to independently search for an analog video signal source and jam it with its own transmitter in the detected channel.

The device operates fully automatically, requires no setup, and begins performing tasks immediately after power is supplied.

Purpose and Application

REMORA is designed for:

• automatic detection of FPV drone video transmitters;
• automatic jamming of the drone's video channel;
• individual operator protection;
• protection of large UAVs;
• protection of vehicles or mobile platforms;
• use by mobile groups and crews.

Jamming is performed by transmitting its own video signal of higher power, causing the drone operator to lose video feed.

Operating Frequency Ranges

The standard configuration supports automatic search and jamming in the following ranges:

• 3000–3500 MHz
• 3500–4000 MHz
• 4900–6060 MHz

Jamming frequencies can be changed according to customer needs (adaptation to specific ranges or application scenarios).

Jamming Power

• 3000–3500 MHz — 4 W (96 channels)
• 3500–4000 MHz — 3 W (17 channels)
• 4900–6060 MHz — 8 W (96 channels)

Power parameters depend on the installed transmitter and can be changed according to the task.

Sensitivity and Efficiency

• Receiver sensitivity: 95 ±3 dB
• Reliable FPV drone detection: up to 1 km
• The further the drone operator is — the more stable the jamming

Operating Algorithm

The jamming algorithm is implemented with signal tracking when the drone operator changes frequencies.

1. automatically finds an active video channel;
2. performs jamming;
3. tracks frequency changes without operator intervention.

Operating Mode (no setup required)

The device operates fully automatically:

• after power is supplied, the POWER indicator lights up;
• after ~30 seconds, SEARCH mode is activated;
• when an FPV transmitter is detected, the JAMMING indicator lights up.
• The operator performs no actions during operation.

Dimensions and Weight

• Weight: 664 g (without battery)
• Dimensions with antennas: height — 25 cm, width — 20 cm, depth — 3.5 cm

Compact dimensions allow integration into a vehicle, UAV, or mobile kit.

Power Supply

• Operates from onboard power
• Autonomous operation capability
• 4S2P battery — optional

Package Contents (delivery)

The standard kit includes:

• REMORA device;
• user manual;
• adapter cable for connecting to onboard power;
• mounting hardware.

Optional:

• 4S2P battery for autonomous operation. 72 000,00 UAH

Key Advantages

• fully automatic operation;
• no setup required;
• adaptation to frequency changes by the operator;
• range customization capability;
• mobile and vehicle application;
• real combat use scenario.

Summary

• REMORA — is a compact automatic FPV video countermeasure device that:
• finds the target itself;
• performs jamming itself;
• operates without operator involvement;
• adapts to the unit's tasks.
