EW Shelter 12-Band AM Series Universal

EW Shelter 12-Band AM series from DH is a universal anti-drone system for stationary and vehicle use. The basic configuration comes WITHOUT BATTERY (optional built-in battery installation is possible for an additional +24,000 UAH), but when ordered with a battery, the device provides full autonomous operation.

Description and Purpose

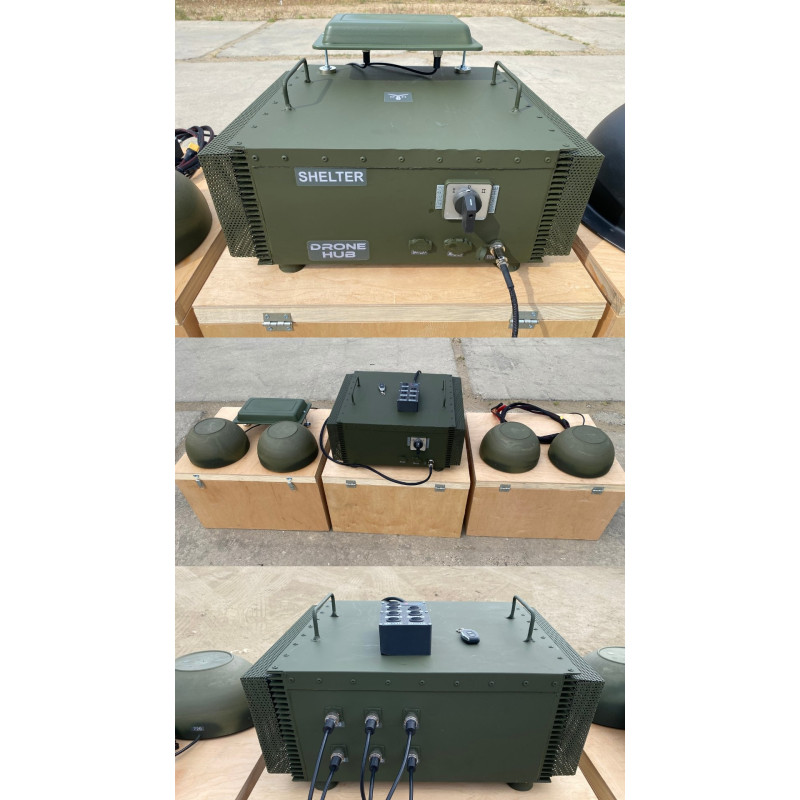

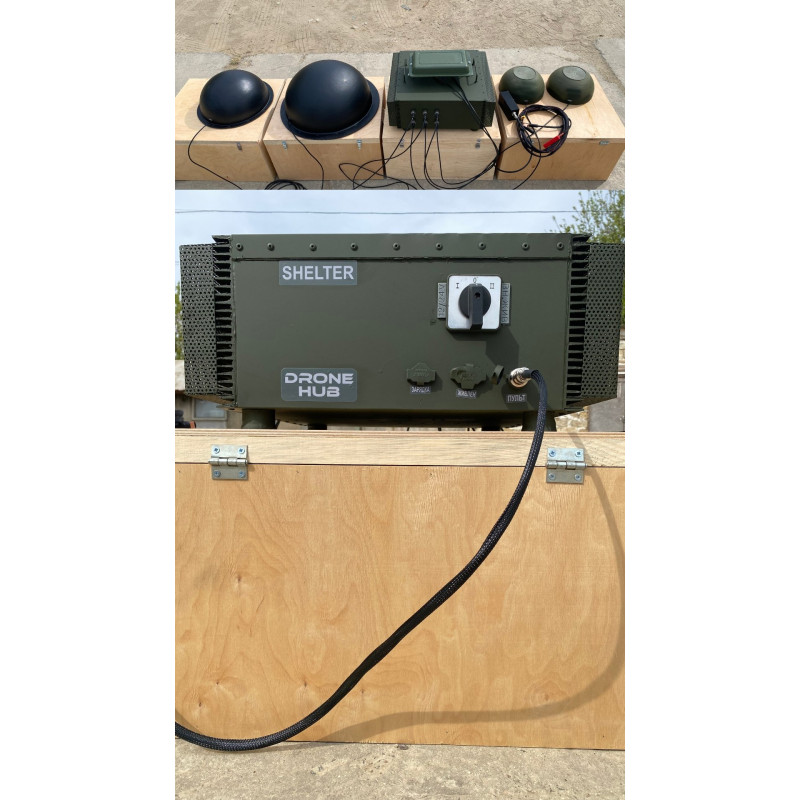

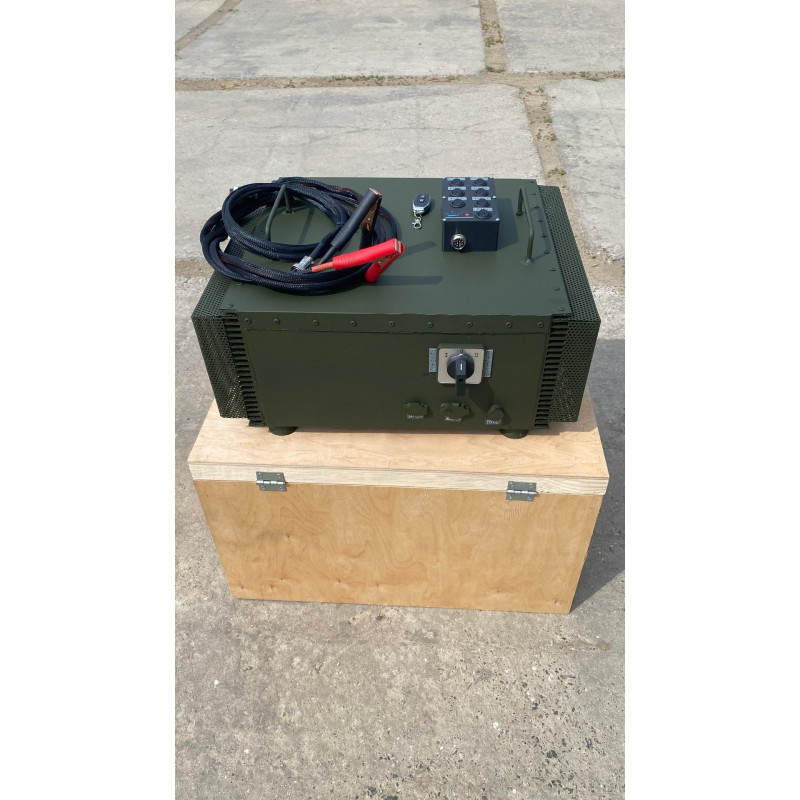

This device is designed for effective counteraction against FPV and Mavic drones. The construction is based on a proprietary durable steel casing for increased resilience in extreme conditions and uses aluminum for reliable heat dissipation. Thanks to a combined set of antennas and up to 12 separate bands, the Shelter provides flexible and effective jamming of drone signals on various frequencies.

Advantages

• Completely universal — suitable for both trench installation and vehicle mounting;
• Supports up to 12 active frequency bands with the ability to individually enable each one;
• Quick and convenient installation, mobile mounting;
• Includes a remote control for convenient remote operation.

Key Features

• Autonomy: basic — without built-in battery; can be equipped with a built-in battery (optional) for autonomous operation;
• Power supply: built-in and/or from 12V/24V (vehicle and heavy equipment);
• Operating frequency range: configurable within 100–6000 MHz;
• Antennas: cloverleaf, quadrifilar, inverted-v, patch — supplied according to the number of bands;
• Control: via external control panel or remote control;
• Cooling: combined — active and passive; dust and rain protection ensures operation in challenging conditions;
• Power: up to 50 W per band, GaN technology used in frequency generation modules;
• Effective jamming range: 150–250 m against FPV drones; 200–300 m against Mavic when using a patch antenna.

Package Contents

• Control panel;
• Power cables;
• Electromagnetic field indicator;
• Rechargeable battery and charger — optional (additional option +24,000 UAH for built-in battery);

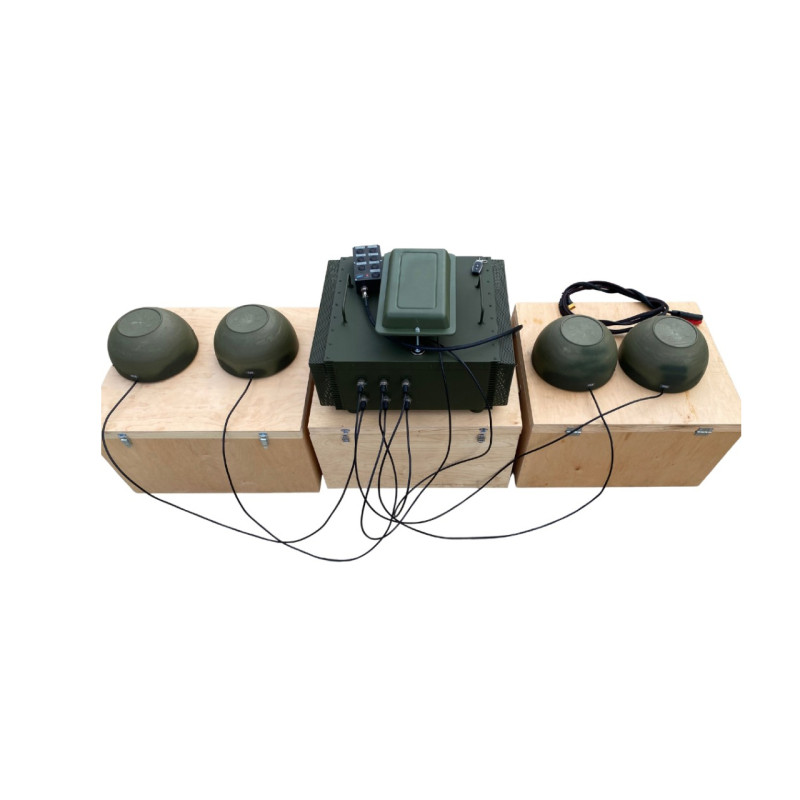

• Antennas (cloverleaf / inverted-v / patch) in quantities corresponding to the selected band configuration.

Product type: EW Jammers > Vehicle EW Jammers. Brand: DH. The device is ideal for military operations, object protection, and equipment defense against unmanned aerial vehicles, where a reliable and configurable electronic warfare system is required.

For additional parameters and custom configurations, please contact our consultants — it is possible to adapt the number of bands and select antennas for specific tasks.
