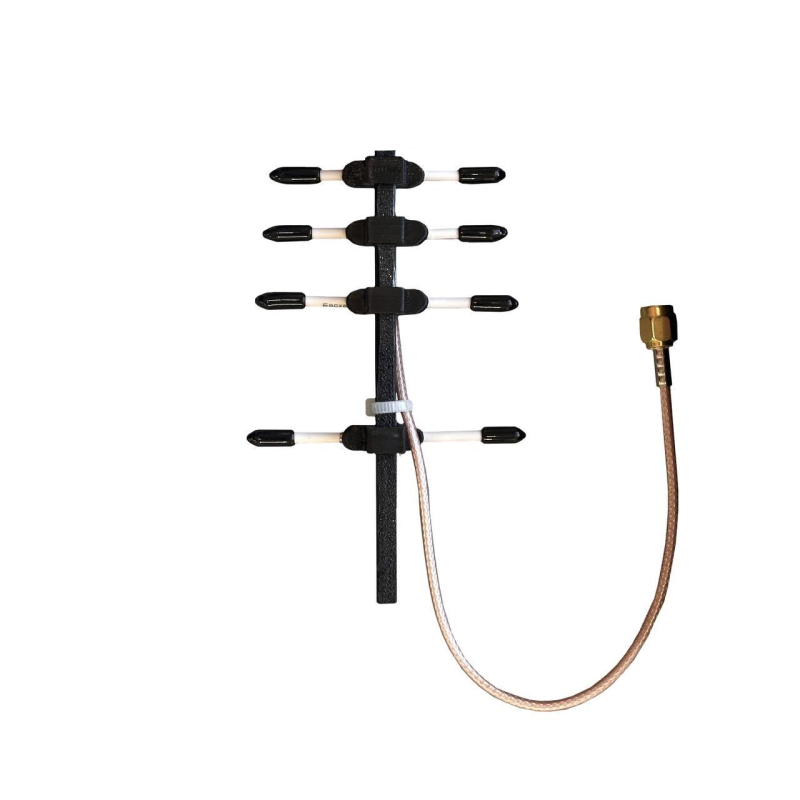

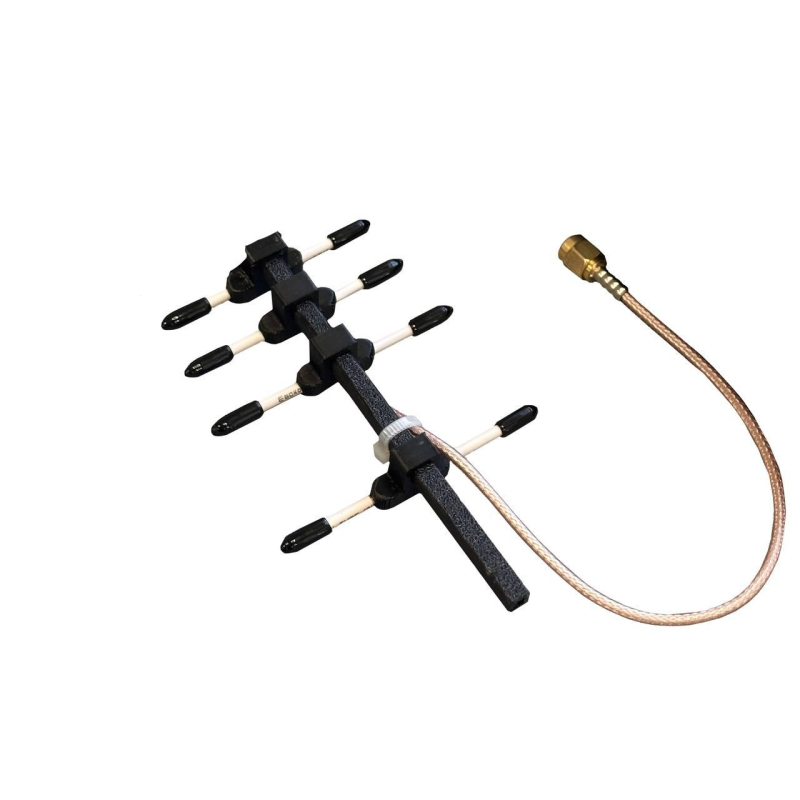

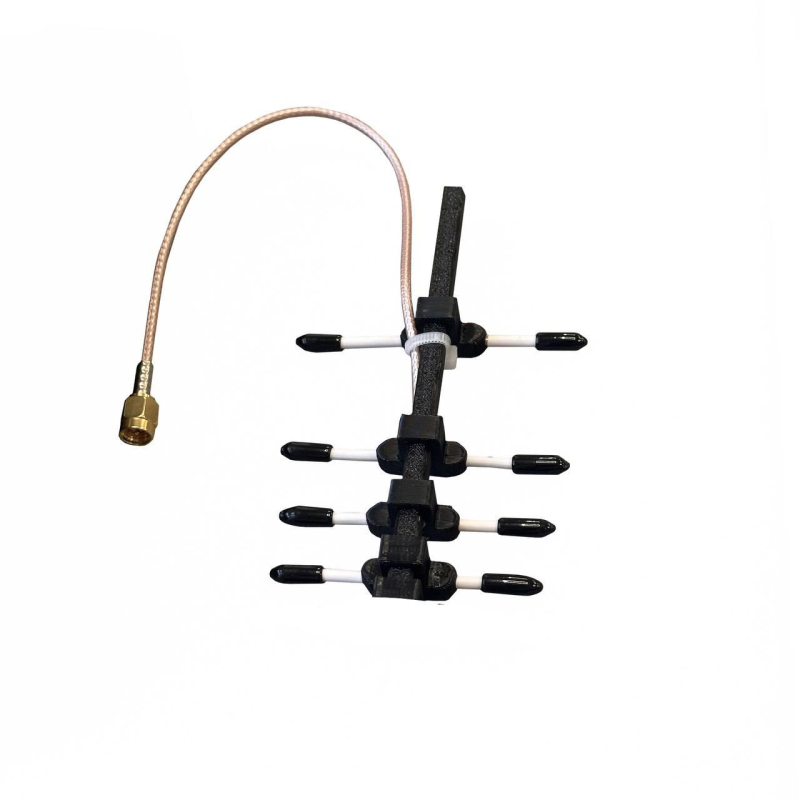

Antenna for FPV Repeater at 2.3GHz with VSWR 1.1 and 9 dBi Gain.
Lightweight and efficient Yagi antenna for use with FPV drones and repeaters at 2.3 GHz. It features 9 dBi gain and VSWR 1.1, ensuring high signal quality, stable connection, and a range of up to 25 km. Ideal for situations with EW or weak signals where standard antennas fail. Weighs only 22 g, with convenient vertical mounting and a 25 cm cable included. Reliability confirmed by combat testing.
Specifications:
1. Gain: 9 dBi
2. VSWR 1.05 at target frequency
3. Weight: 22 grams
4. Impedance: 50 Ohms
5. Material: plastic, copper
6. Default cable length: 25 cm
7. Convenient vertical mounting 5x5mm (tube)
A Yagi antenna for a repeater can be useful for drones where low antenna weight is required for extended operation of the system during a mission. Our antenna is specifically designed for these conditions.
VSWR 1.05 and 9 dBi gain can allow flights up to 25 km when the antenna is extended to increase the line-of-sight range. High gain can also be beneficial in the presence of EW countermeasures, where a dipole or Moxon antenna does not provide adequate field concentration.
The 2.3GHz Yagi antenna for repeaters is manufactured by SKYNOVA engineers and tested in cooperation with the military, so when you buy antennas from us, you can be confident in the result. We work for victory!
