Yagi Antenna 1900 MHz — 9 Elements, 13.4 dBi
offers a high-performance directional Yagi antenna for operation at 1900 MHz. This antenna is designed for stable signal reception and transmission in a specified direction and is suitable for applications in radio communications, television, Wi-Fi, and mobile networks. The design provides a high gain of 13.4 dBi with compact dimensions, making the device an optimal choice for both private use and professional solutions.

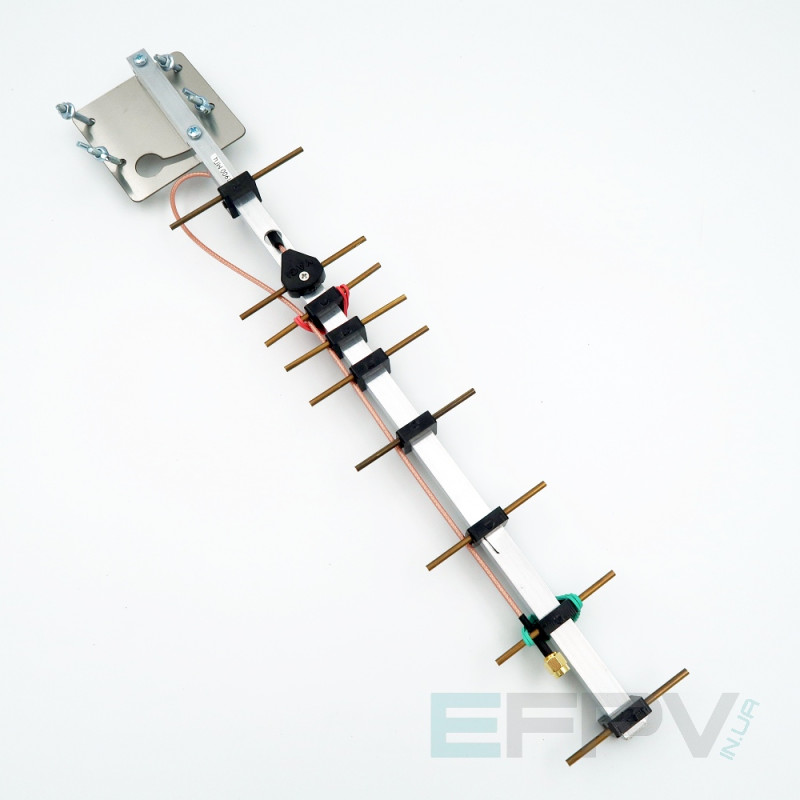

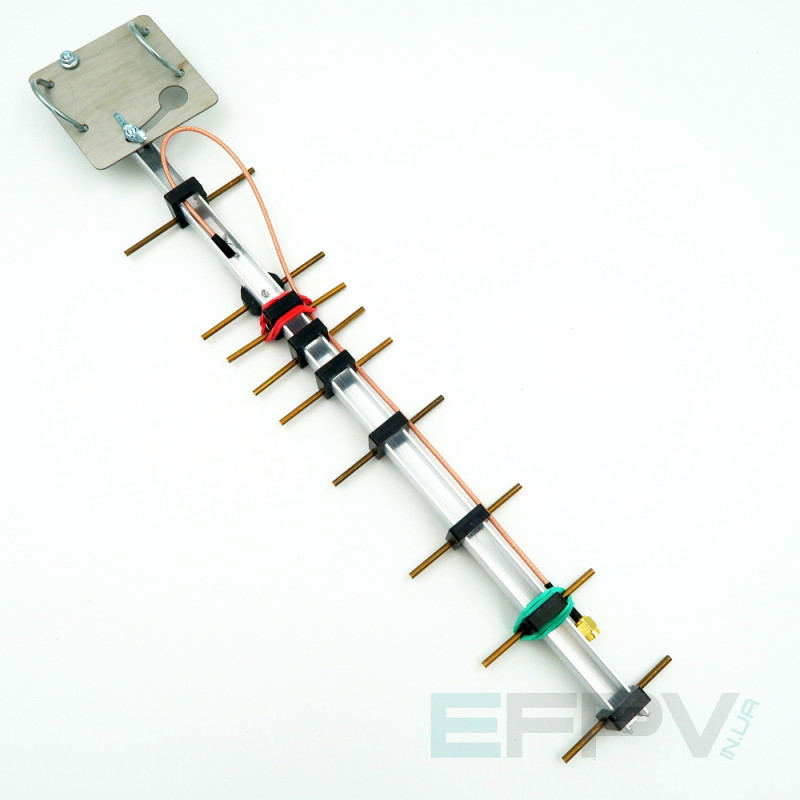

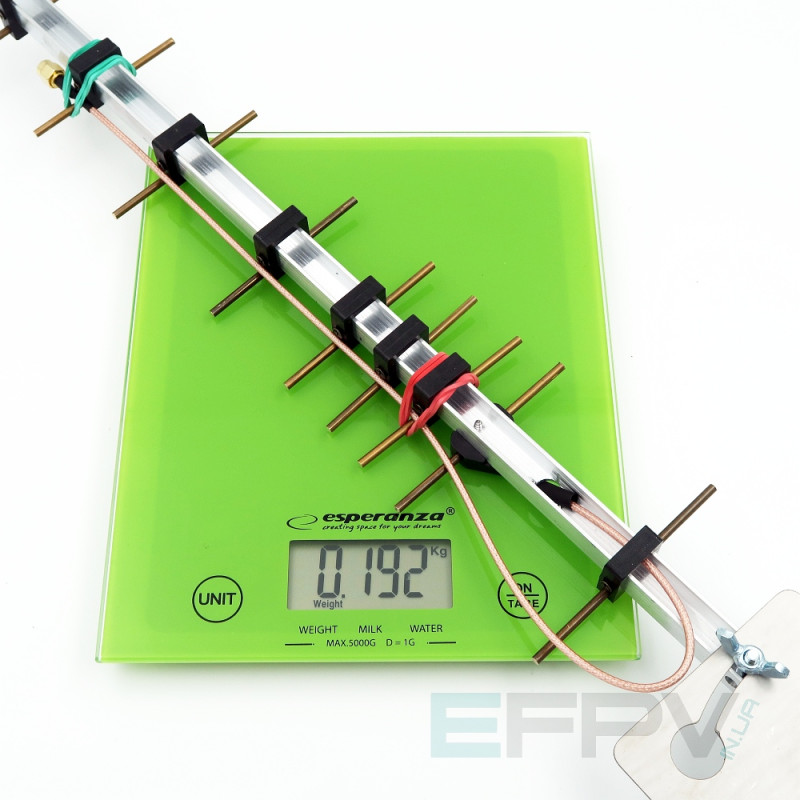

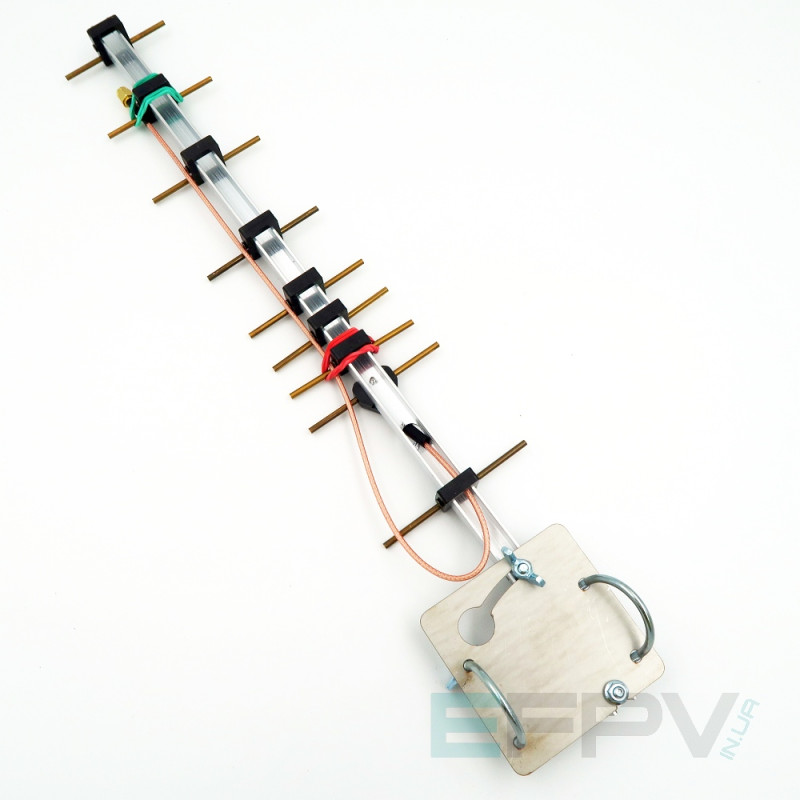

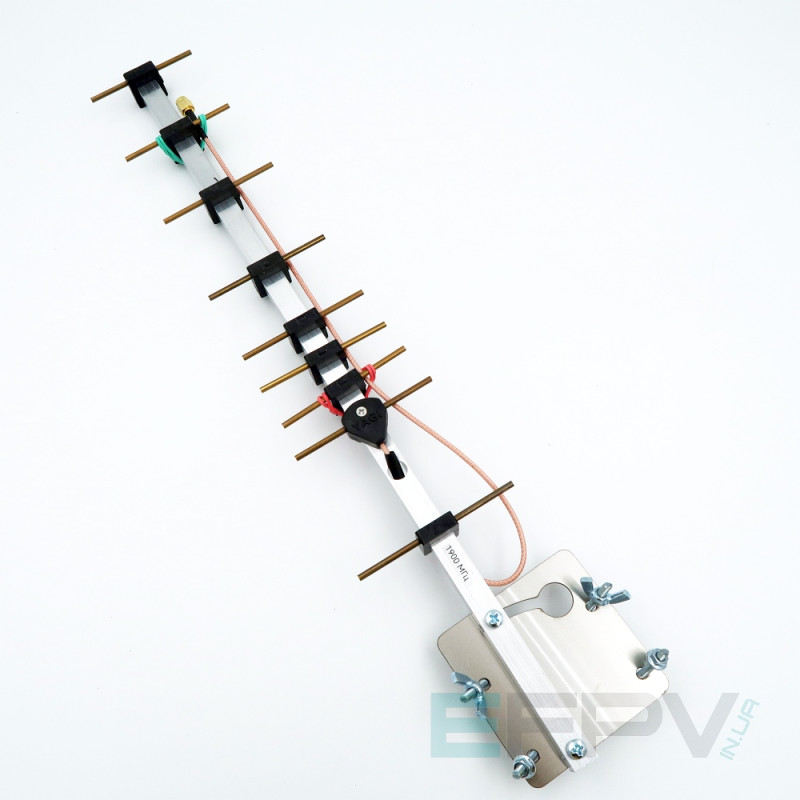

The antenna has linear polarization and consists of 9 elements (directors), forming a concentrated radiation pattern with a beam angle of 35°. The body is made of aluminum, combining strength and low weight — only 192 g, and dimensions of 438*90*38 mm facilitate mounting on a mast or bracket. The universal SMA connector allows for easy connection of the antenna to most devices and cable solutions.
Key Advantages
- High gain of 13.4 dBi for stable long-distance communication;
- Operating frequency 1900 MHz — compatibility with mobile networks and other communication systems;
- Linear polarization for optimal interaction with receivers;
- 9 elements (directors) for sharply directed signal reception;
- Compact dimensions 438*90*38 mm and low weight 192 g — easy installation and minimal load on the mount;
- SMA connector for universal connection to antenna equipment;
- Aluminum body — corrosion resistance and long-term outdoor operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency | 1900 MHz |
| Polarization | Linear |
| Number of elements (directors) | 9 |
| Beam angle | 35° |
| Connector | SMA |
| Material | Aluminum |
| Gain | 13.4 dBi |
| Size | 438*90*38 mm |
| Weight | 192 g |
The Yagi Antenna 1900 MHz 9 elements 13.4 dBi from [brand] is a reliable solution for improving reception quality in the desired direction: from home systems to industrial facilities. Thanks to durable materials and simple installation, the device ensures long-lasting outdoor operation and minimizes maintenance costs. The 13.4 dBi gain and narrow beam pattern make it effective for connecting base stations, amplifying mobile signals, and use in communication systems where high reception selectivity is required.
When choosing an antenna, pay attention to the compatibility of the 1900 MHz frequency with your equipment and the presence of an SMA connector for compatible connection. The lightweight aluminum body and compact dimensions of 438*90*38 mm facilitate installation even in confined spaces.
You can buy the Yagi Antenna 1900 MHz 9 elements 13.4 dBi from [brand] at the Flash Army online store — it's a profitable investment in stable and high-quality communication.
