Yagi Antenna 2300-2600 MHz Plastic 8-9dBi — Overview

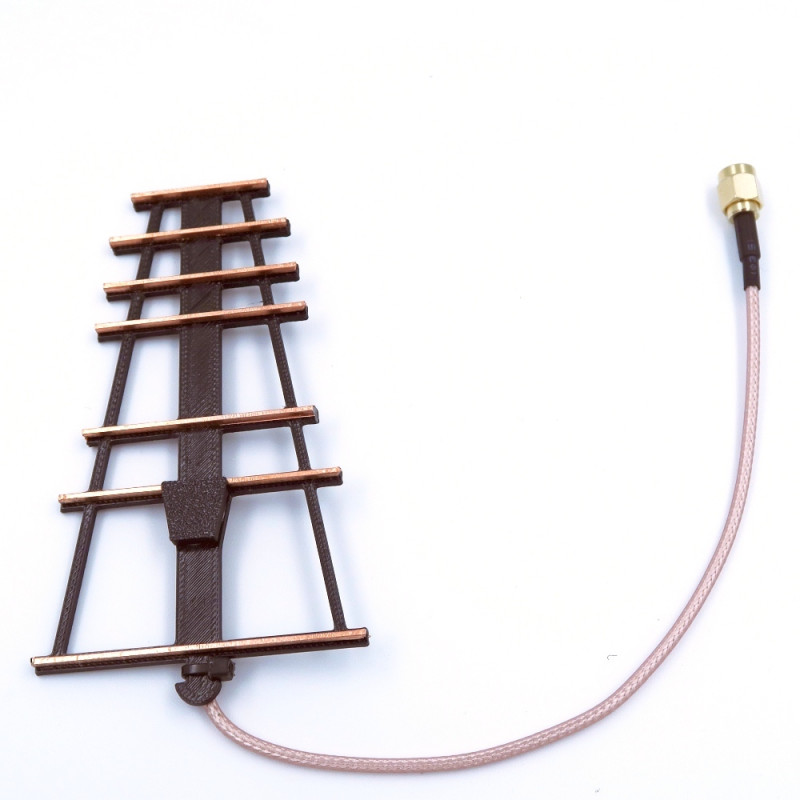

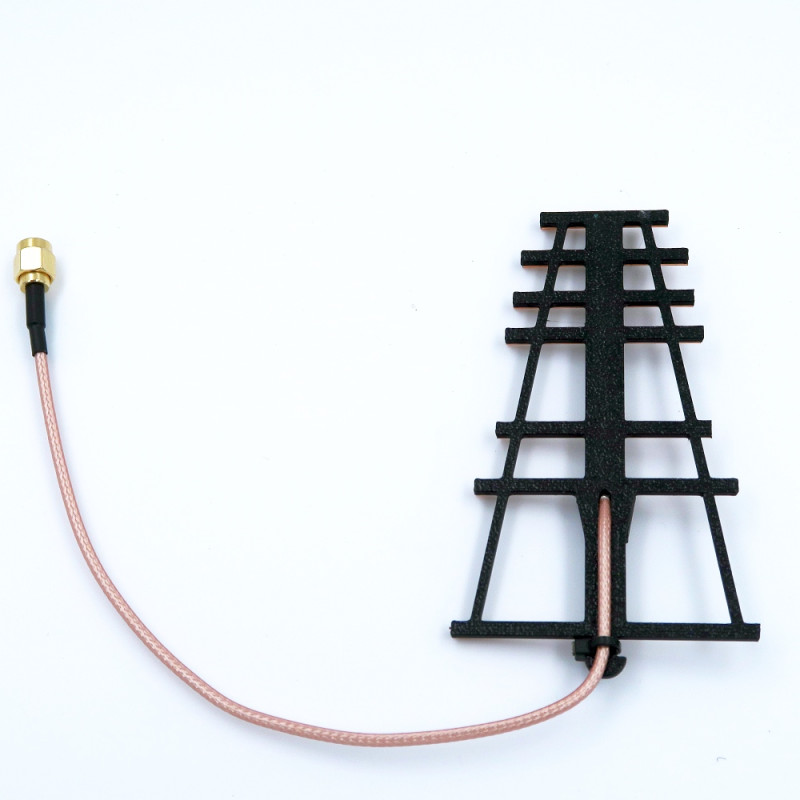

Yagi Antenna 2300-2600 MHz Plastic 8-9dBi from the manufacturer — is a directional lightweight antenna designed for reliable signal reception and transmission in the 2300-2600 MHz range. The design combines a classic Yagi scheme (active element, reflector, and directors) with a plastic support base to which thin metal conductors are attached. This solution offers a combined benefit: the electrical efficiency of metal elements and low weight and corrosion resistance thanks to plastic.

Manufacturer and Category

Manufacturer:. Product type: Antennas > Yagi Antennas. The model is compatible with a wide range of receivers and transmitters that have an SMA connector.

Key Technical Specifications

• Frequency range: 2300-2600 MHz.
• Gain: 8-9 dBi — provides a directional signal over medium distances.
• Material: plastic base with integrated metal conductors — lightweight and durable construction.
• Number of sections (directors): 7 — for increased directivity.
• Beam angle: 37° — concentrated beam in the target direction.
• Polarization: linear.
• Cable characteristics: flexible pigtail — convenient for mounting and adjusting antenna position.
• Connector: SMA — high compatibility with receivers/transmitters.
• Size: 108*58*4 mm — compact dimensions for easy mounting.

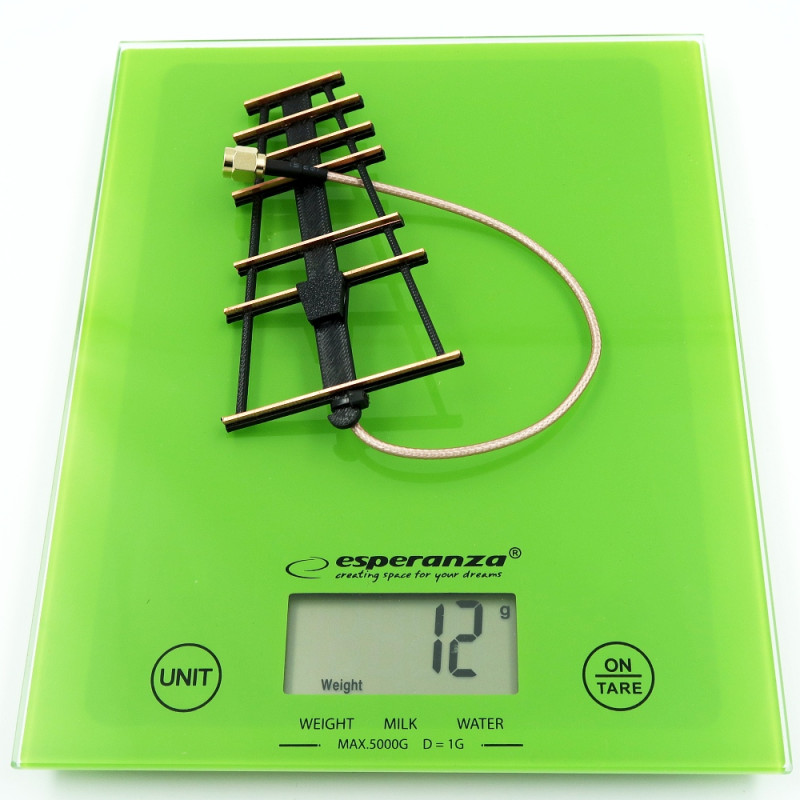

• Weight: 12 g — minimal load on the carrier, such as a drone.

The plastic base design provides a smaller visual profile, which is important for operational and field tasks. Metal conductors are responsible for high-quality signal radiation and reception, while plastic adds resistance to external influences and reduces the risk of corrosion.

Areas of Application

• Radio communication and telecommunications in conditions requiring directivity and mobility.
• Installation on unmanned aerial vehicles for reconnaissance and signal relay.
• Providing communication between mobile units in field conditions.
• Directional interception or reception of radio transmissions in tactical tasks.
• Situational use in conditions where antenna weight, dimensions, and low visibility are critical.

The antenna is compatible with equipment with an SMA connector and easily integrates into projects where compactness and directivity are important. Thanks to its 8-9 dBi gain and narrow beam angle, it is suitable for relaying signals over medium distances and for directional reception amplification.

This model can be purchased at the Flash Army online store. For technical questions, compatibility with specific equipment, or assistance with antenna selection, please contact our store — we will suggest the optimal option for your tasks.

Technical parameters: range 2300-2600 MHz; gain 8-9 dBi; linear polarization; 7 directors; beam angle 37°; flexible pigtail; SMA connector; plastic material with metal conductors; size 108*58*4 mm; weight 12 g; manufacturer ; product type: Antennas > Yagi Antennas.
