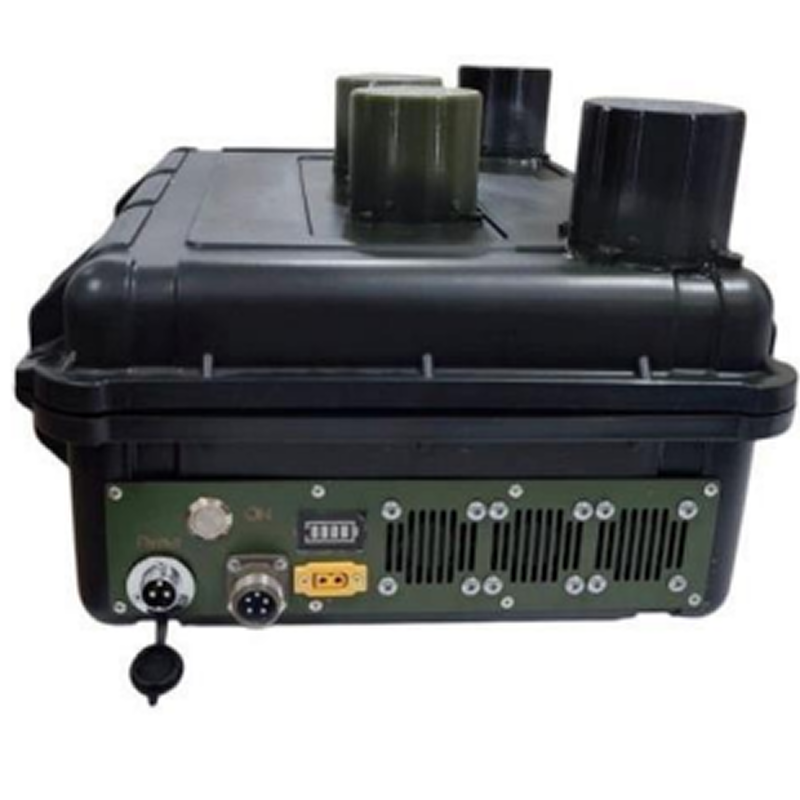

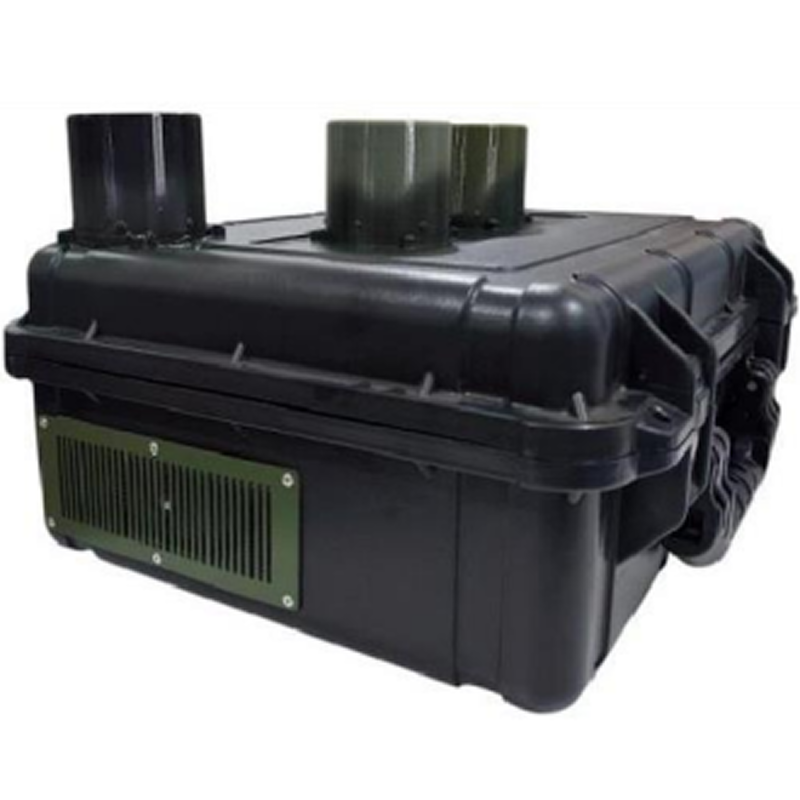

EW SYSTEM «SMERT RUBIKONA»
«Smert Rubikona» is an ultra-compact tactical solution for spot suppression of FPV drones, video links, and control channels of the enemy. The device is focused on the most relevant frequency bands actively used by modern unmanned aerial vehicles — specifically 2100–2700 MHz.
The system is designed for maximum mobility and autonomy, has a built-in battery, does not require external power, and is easily transported and installed anywhere.
OPERATING PRINCIPLE:
The device is equipped with 4 jamming modules, each with 50 W power, covering the following ranges:
- 2100–2250 MHz
- 2250–2400 MHz
- 2400–2550 MHz
- 2550–2700 MHz
The signal in the form of GUN-type white noise is transmitted through dome-shaped omnidirectional antennas, installed directly on the housing with minimal RF cable length (15 cm), which reduces losses.
The system begins generating continuous jamming immediately after activation, blocking video, telemetry, and command signals within a range of up to 300 meters.
If necessary, integration with the «KOZHAN» drone detector is possible to enable automatic activation upon detection of an enemy signal.
POWER AND MOBILITY:
Power is provided by a built-in Li-Ion battery (1.5 kW / 60Ah). Full charging time:
- From 220V — 3 hours
- From 12V car — 6 hours
The system does not require a constant power source, so it can operate autonomously in field conditions, including dugouts, technical posts, car roofs, or stationary defense points.
ADVANTAGES OF THE «SMERT RUBIKONA» SYSTEM:
- Compactness and mobility — only 14 kg, convenient carrying handle.
- Rapid deployment — less than 1 minute from delivery to activation. Autonomy: operation from high-capacity batteries + charging from car or mains.
- Autonomy — operates without external power for several hours.
- Spot suppression of relevant frequencies — optimized specifically for FPV/video drones.
- Can be installed anywhere — car roof, technical post, trench, dugout.
- Auto-start (optional) — via integration with «KOZHAN».
1. PACKAGE CONTENTS
| Control unit case | 1 pc |
| Omnidirectional antennas (dome-shaped) | 4 pcs |
| Wired remote control 5m | 1 pc |
| Rechargeable battery (built-in) 1.5Kw 60Ah | 1 pc |
| Car charging cable 12V 4m (undervoltage protection) | 1 pc |
| Mains charger 29.4V 20A (XT60 connector) | 1 pc |
2. TECHNICAL SPECIFICATIONS OF THE «SMERT RUBIKONA» EW JAMMER
| Total weight | 14kg |
| EW system dimensions | 46x39x25cm |
| Total consumption | 400W |
| Total jamming output power | 200W |
| Operating voltage range | 24V-28V |
| Active cooling (fans) | 3 pcs |
| Waterproof control buttons | Yes |
| 50W jamming modules (White noise. GUN) | 2100-2250MHz, 2250-2400MHz, 2400-2550MHz, 2550-2700MHz |
| Li-Ion battery (NMC) | 7s1p |
| Charging from 220V mains. Full charging time for 60Ah battery | 3 hours |
| Charging from 12V mains. Full charging time for 60Ah battery | 6 hours |
| Battery charge indicator | Yes |
| Battery discharge controller (charges battery only when engine is running) | Yes |
| Module thermal sensor | 1 pc |
| Housing | Plastic, IP50 |
| Control remote connector | GX-20 3pin |
| Power connector | 220V XT-60 |
3. TECHNICAL SPECIFICATIONS OF THE WIRED REMOTE CONTROL
| Cable type | PVSng-LS |
| Cable cross-section | 4x1 |
| Cable length | 5m |
| Power-on light indication | Yes |
| Auto-detection («KOZHAN»). Automatic system on/off | Optional |
5. TECHNICAL SPECIFICATIONS OF ANTENNAS
| Antenna type | Dome (omnidirectional) |
| Cable type | RG405 |
| Cable length | 15cm |
| Connector type | SMA |
| Suppression range | 100-200m (assuming 1.5-2.5km 1W) 200-300m (assuming 3-4km 1W) |
*The package contents and number of bands may vary, and accordingly, the price also changes. Also, the detection function works in conjunction with the Kozhan detector, so in the maximum configuration, we offer Kozhan and EW as a set.
