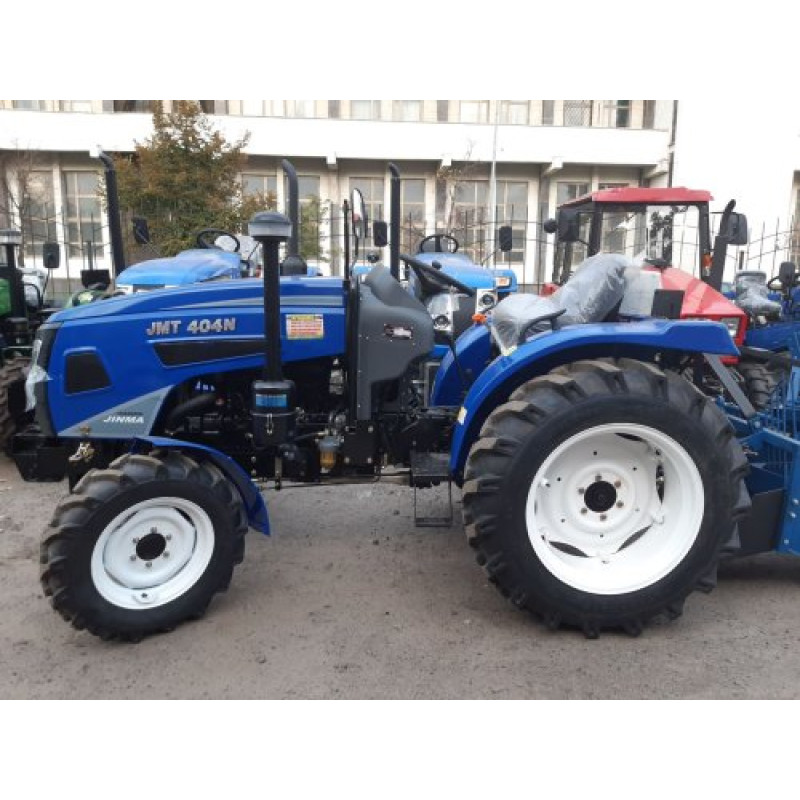

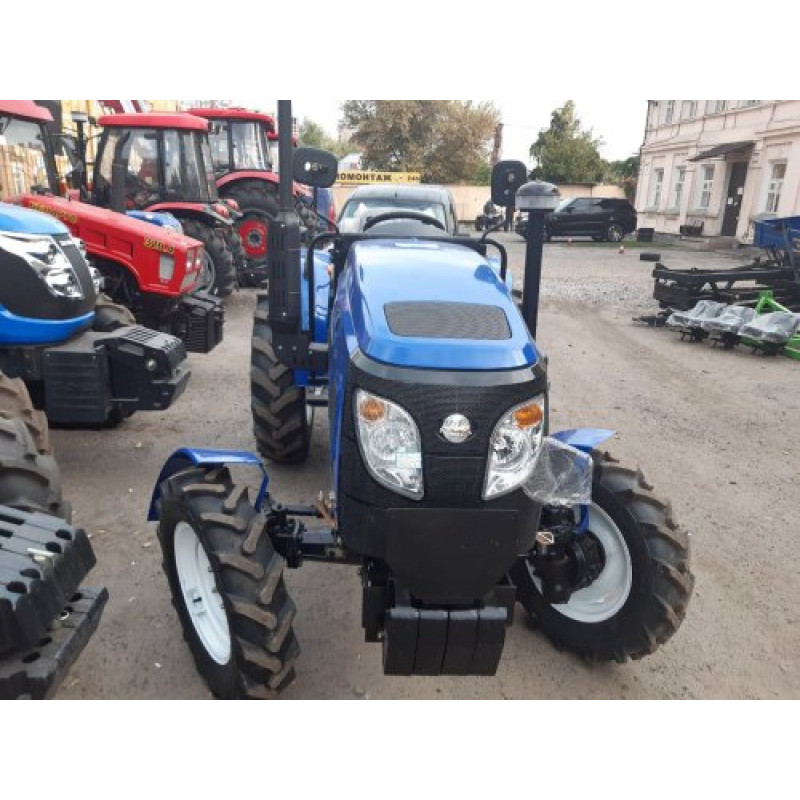

Jinma JMT 404 N Mini Tractor — Power and Reliability for Your Farm
Jinma JMT 404 N is a modern 2019 mini tractor from the manufacturer Jinma, combining high reliability, robust construction, and versatility for agriculture and municipal work. This model features a powerful diesel engine, reinforced axles, and a well-designed transmission, allowing it to perform a wide range of tasks: plowing, harrowing, soil preparation, sowing, spraying, harvesting, cargo transportation, and snow removal.
Why Choose Jinma JMT 404 N

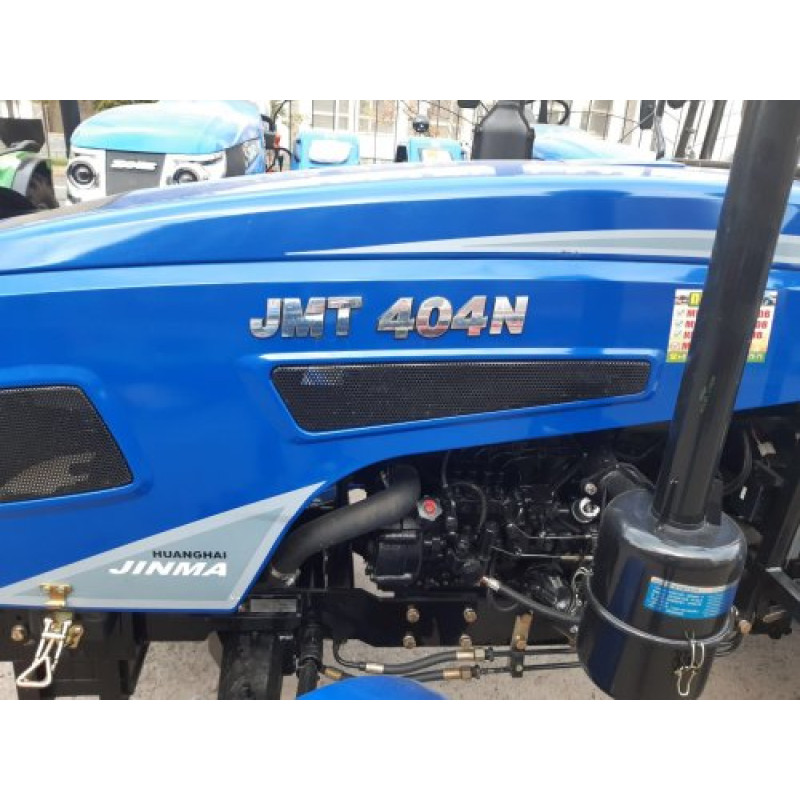

- Engine: Vertical four-cylinder four-stroke diesel with water cooling and pre-chamber injection, 40 hp (29.4 kW) power, 2543 cm3 displacement, 90/100 mm bore/stroke, 4 cylinders.
- Starting: Electric starter with safe start for quick and reliable ignition.
- Cooling: Forced water cooling system with V-belt fan drive for stable operation under intense loads.
- Gearbox and Transmission: Mechanical gearbox (16/4) — (4+1) x2x2 scheme with creeper lever; main drive — pair of bevel gears.
- Drive and Off-road Capability: 4×4 all-wheel drive with differential lock; rear axle differential — four-satellite, conical, closed-type with lock; front axle differential — conical, satellite, self-locking. Minimum turning radius with brake — 3.4 m, without brake — 4.2 m.
- Comfortable Steering: Power steering ensures ease of operation and reduces effort during maneuvering.
- Clutch and PTO: Dry dual-disc clutch; rear power take-off shaft at two speeds 540/1000 rpm.
- Tires: Front 6.5" x 16.0", rear 11.2" x 24.0".
- Dimensions and Weight: Length × width × height 3430×1480×1530 mm, weight 1540 kg, ground clearance 300 mm, wheelbase 1825 mm.
- Operating Fluids and Consumption: Fuel tank capacity 35 L; engine crankcase capacity 7 L; gearbox and axle crankcase capacity 20.2/6.6 L; lift housing capacity 10 L; cooling system capacity 7.2 L; diesel consumption 250 g/kWh; oil consumption 2.72 g/kWh. Mineral or semi-synthetic oils for diesel engines are recommended.
The Jinma JMT 404 N mini tractor is designed for cultivating fields up to 10–15 hectares and for versatile work on farms and in the municipal sector. Thanks to its standard three-point hitch and the ability to aggregate heavy implements, this tractor easily transforms into a multifunctional machine for various tasks.
Flash Army online store offers convenient purchasing conditions: official manufacturer's warranty, order processing with the option to buy on credit or via bank transfer with VAT, as well as free delivery in Kyiv and throughout Ukraine. If you have any questions, please contact our specialists or leave a request on the website.
Specifications:
| Engine type | vertical four-cylinder four-stroke diesel with water cooling, pre-chamber injection |
| Wheel formula | 4×4 (all-wheel drive) |
| Cabin | no |
| Power steering | + |
| Engine power | 40 hp / 29.4 kW |
| Displacement, cm3 | 2543 |
| Cylinder bore / piston stroke | 90/100 |
| Number of cylinders | 4 |
| Pump type | plunger, in-line |
| Crankshaft speed | 2200 rpm |
| Lockable differential | + |
| Diesel consumption | 250 g/kWh |
| Oil consumption | 2.72 g/kWh |
| Engine start | electric starter with safe start |
| Cooling system fan drive | V-belt drive |
| Gearbox | (16/4) |
| Main drive | pair of bevel gears |
| Rear axle differential | four-satellite, conical, closed-type, with lock |
| Front axle differential | conical, satellite, self-locking |
| Minimum turning radius with brake on one wheel / without brake | 3.4/4.2 m |
| Tractor frame | frameless |
| Maximum lifting force of hitch mechanism | 6.7 kN |
| Tractive effort | 8.8 kN |
| Fuel tank capacity | 35 L |
| Engine crankcase capacity | 7 L |
| Gearbox and rear / front axle crankcase capacity | 20.2/6.6 L |
| Lift housing capacity | 10 L |
| Engine cooling system capacity | 7.2 L |
| Oil type in gearbox, rear / front axle | mineral for diesel engines |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Wheelbase | 1825 mm |
| Forward speed | 0.33- 27.19 km/h |
| Reverse speed | 0.44 - 11.35 km/h |
| Track width | front wheels - 1200-1250 mm, rear wheels - 1080 - 1250 mm |
| Ground clearance | 300 mm |
| Clutch | dry, dual-disc |
| PTO | 540/1000 rpm, rear (2 rotation speeds) |
| Dimensions, length * width * height | 3430*1480*1530 mm |
| Weight | 1540 kg |
Summary: The Jinma JMT 404 N is a reliable and versatile mini tractor that combines economy, durability, and the ability to perform a wide range of agricultural and municipal tasks.
