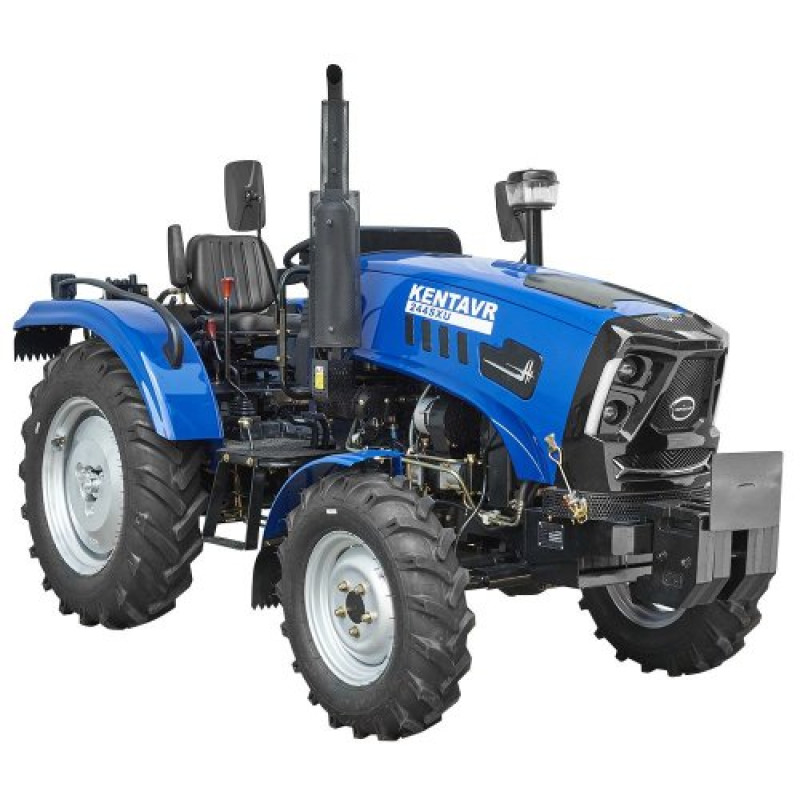

Mini Tractor KENTAVR 244 SDXU

The KENTAVR 244 SDXU mini tractor is a reliable universal assistant for agriculture, utility work, and private farms. This model combines compact dimensions with a powerful diesel engine and 4x4 all-wheel drive, making it effective for cultivating fields, working on slopes, and in difficult soil conditions. Manufacturer: KENTAVR. Category: Tractors > Mini Tractors.

Engine: The KENTAVR 244 SDXU is equipped with a 4-stroke, non-turbocharged diesel engine, with an electric starter and a liquid cooling system with forced circulation. The engine power is 24 hp (17.65 kW), displacement is 1530 cm3, number of cylinders is 3, vertical. Cylinder bore and piston stroke are 85/90 mm. Nominal crankshaft speed is 2300 rpm. Nominal fuel consumption is ≤275 g/kWh, nominal oil consumption is 2.31 g/kWh. To ensure longevity, it is recommended to use mineral or semi-synthetic oil for diesel engines.

Transmission and Chassis: The gearbox (КП) is (4+1)x2, the final drive is direct, the clutch is a dry 2-disc constantly closed type. The front and rear axles have recommended transmission oils: Silver SAE 85W-90, Gold SAE 80W-90, or Platinum SAE 75W-90. There is a rear differential lock, mechanical steering, and brakes on the rear wheels (brake drums). The power take-off (PTO) shaft is rear, splined, with speeds of 540 / 1000 rpm. The hydraulic system has a gear pump, the number of hydraulic outlets is 2, the maximum lifting capacity of the three-point hitch is 420 kg. Power steering and a trailer connector (socket) are present.

Dimensions, Tires, and Operating Characteristics: Minimum ground clearance is 315 mm, wheelbase is 1660 mm, front wheel track is 1220, 1440 mm, rear wheel track is 1200, 1360, 1400 mm. Tire size: front 7.50-16, rear 11.20-24. Minimum turning radius: without brakes 3.5 m, with brakes 3.2 m. Travel speed: forward 0.37-30.64 km/h, reverse 0.49-12.23 km/h. Fuel tank capacity is 18.5 L. Operating weight of the tractor is 1370 kg. Overall dimensions (L x W x H) are 3400x1490x2050 mm.

Detailed technical specifications of the model are listed below:

The KENTAVR 244 SDXU mini tractor is suitable for cultivating small and medium-sized land plots, working with mounted and trailed equipment, snow removal, and utility tasks. Thanks to its 4x4 all-wheel drive and differential lock, it demonstrates good passability in difficult conditions, and the convenient transmission allows for efficient use of engine power in various operating modes. It is recommended to pay attention to scheduled oil consumption and use recommended transmission oils to ensure a long service life of components.
