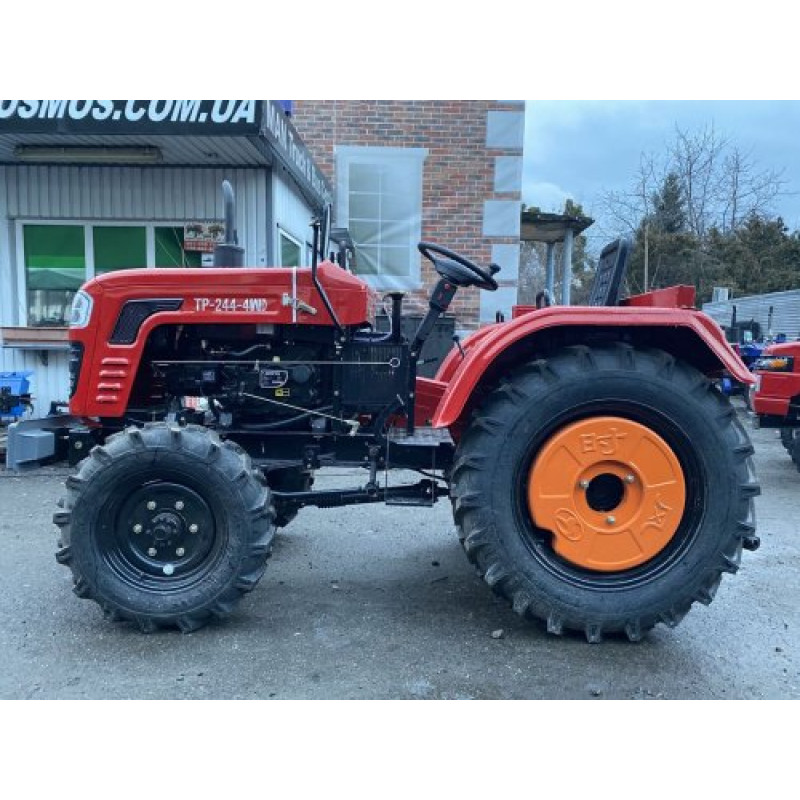

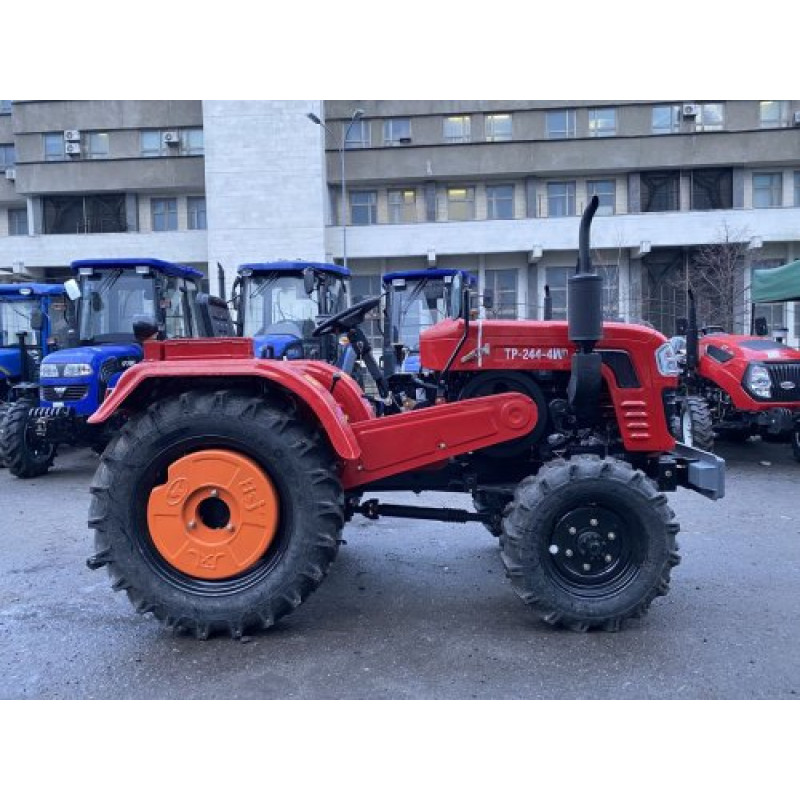

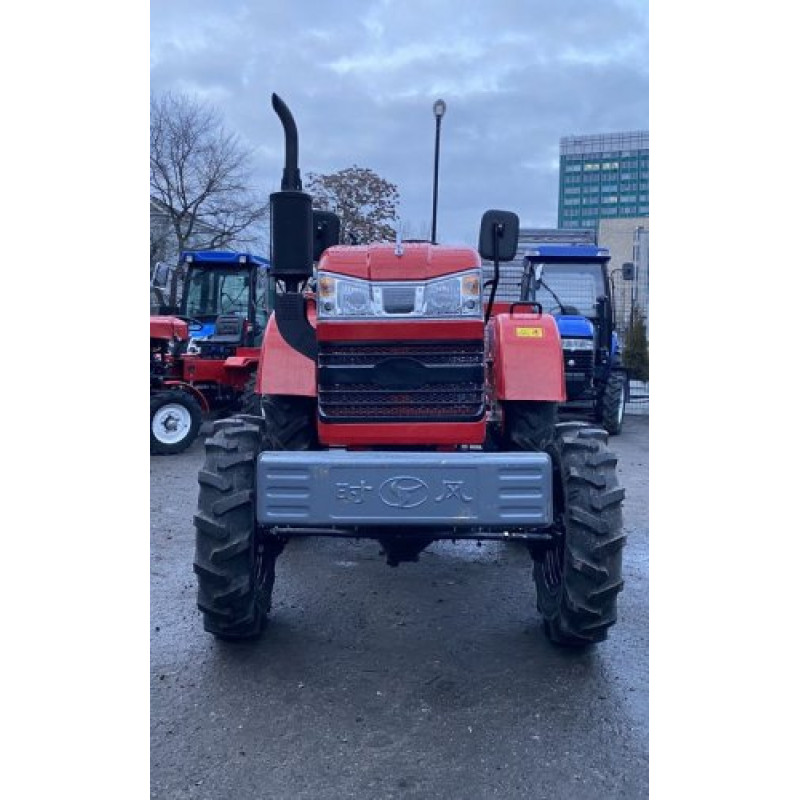

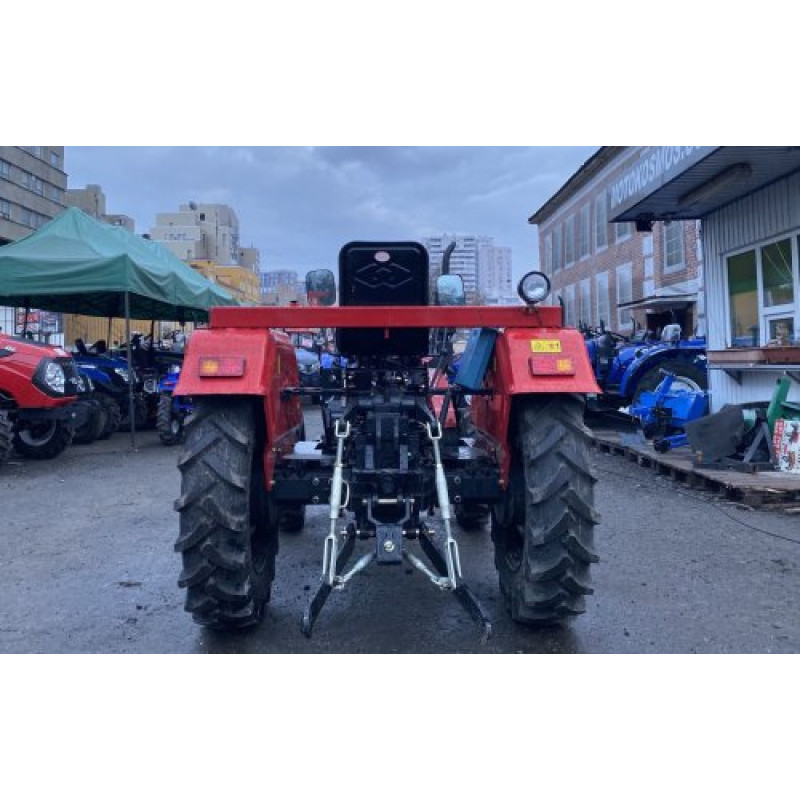

FORTE TP-244-4WD Mini Tractor — A Reliable Choice for Your Farm
The Forte TP-244-4WD is a high-quality, versatile mini tractor that combines an affordable price with a reliable design. This model from the FORTE brand is designed for use on homesteads, farms, and commercial enterprises. It is a powerful tractor with a cast steel frame, a well-engineered transmission, and a high-quality diesel engine, making it suitable for both professionals and beginners.
Advantages and Key Features

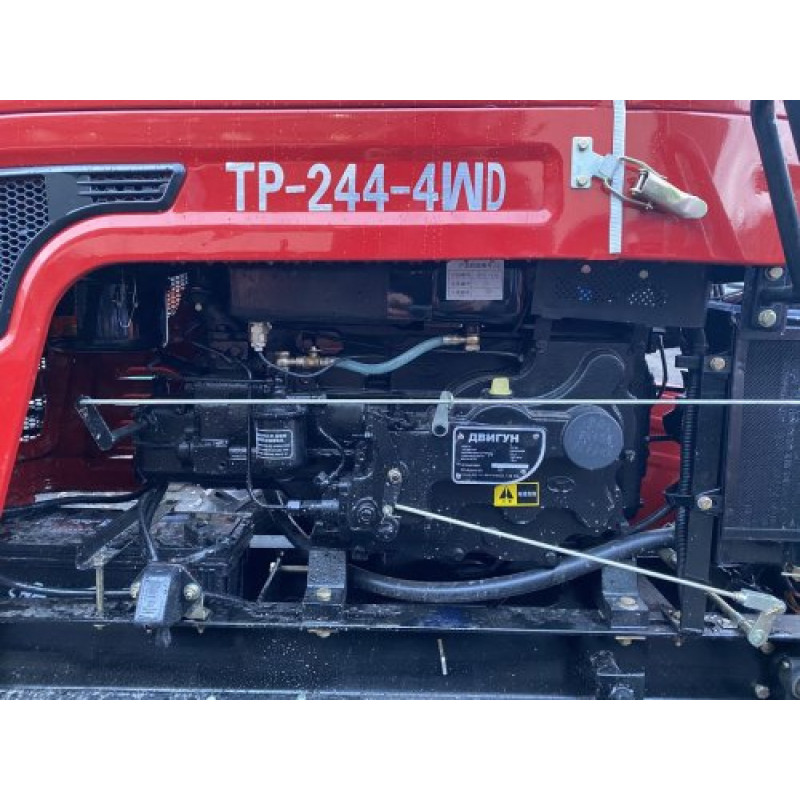

- Engine: Single-cylinder horizontal SF138-2 diesel engine, 24 hp, 1344 cm3 displacement, liquid (water) cooling, ensuring stable operation under intensive loads.
- Gearbox: Non-synchronized mechanical transmission with a (4 + 1) x 2 scheme — effectively 8 forward and 2 reverse speeds for precise speed selection for various tasks.
- Drive and Cross-Country Capability: 4x4 all-wheel drive provides high cross-country capability on rough terrain; the description mentions differential lock to prevent slippage during operation, however, the technical specifications state: "Differential lock — none".
- Adjustable front and rear tracks allow for inter-row cultivation on plots with varying plant spacing without damaging them.
- Power Take-Off (PTO) operates at 540 rpm, compatible with most attachments.
- Tires: Front 6.0-16, rear 9.5-24 with chevron (V-shaped, "herringbone") tread for reliable grip on various soils and in different weather conditions.
- Cast steel frame enhances the machine's reliability and durability.
Purchase Conditions and Service
It is recommended to purchase mini tractors from official importers, including Flash Army. Cooperation with the manufacturer allows us to offer competitive pricing, discounts on attachments, and an extended 24-month warranty. Delivery is free to your home. Purchase is possible on credit or via bank transfer with VAT. To learn more or place an order, submit an application on the website or call company representatives.
Technical Specifications:
| Engine Power | 24 hp |
| Wheel Formula | 4x4 |
| Engine Type | 4-stroke, water-cooled diesel engine |
| Engine Displacement | 1344 cm3 |
| Nominal engine fuel consumption, g/kW*h | ≤252 |
| Nominal traction force, kN | 4.7 |
| Gearbox | non-synchronized, mechanical (4 + 1) * 2 |
| Differential Lock | none |
| Clutch | dry, dual-disc |
| Power Steering | none |
| Cooling System Fan Drive | external in oil bath |
| Braking Mechanism | drum type |
| PTO Speed, rpm | 540 |
| Maximum lifting capacity of attachment mechanism, kg | 4.0 |
| Wheelbase, mm | 1585 |
| Front Wheel Track, mm | 1160-1260 |
| Rear Wheel Track, mm | 1025-1295 |
| Front Tire Size | 6.0-16 |
| Rear Tire Size | 9.5-24 |
| Theoretical Forward Speed, km/h | 31.19 |
| Theoretical Reverse Speed, km/h | 11.25 |
Fuel Tank Capacity, L | 17 |
| Engine Crankcase Capacity, L | 3.5 |
| Gearbox and Rear Axle Crankcase Capacity, L | 19.0 |
| Lift Housing Capacity, L | 5.0 |
| Front Axle Crankcase Capacity, L | 5.0 |
| Engine Cooling System Capacity, L | 15 |
| Overall Dimensions (LxWxH), mm | 2990x1580x2400 |
Brand: FORTE. Category: Tractors > Mini Tractors. The model offers versatile use — from plowing and cultivation to cargo transport and working with attachments. The Forte TP-244-4WD is a smart solution for owners of small and medium-sized farms who value reliability, ease of maintenance, and affordable cost.
