EW SYSTEM «Dokatka»

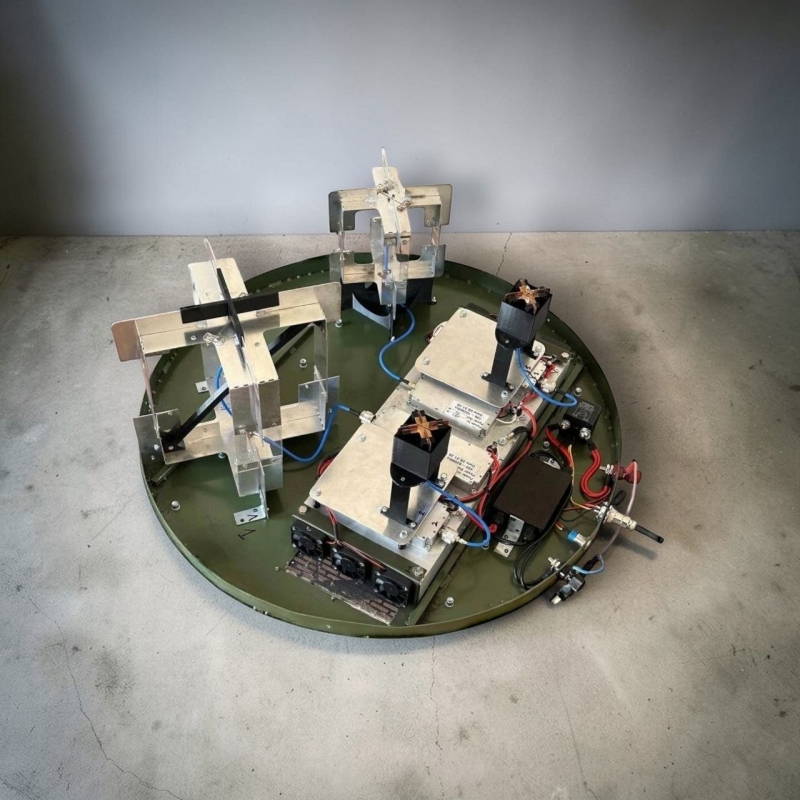

EW «Dokatka» is a unique set of electronic warfare equipment disguised as two truck wheels, ensuring discreet system deployment even in field conditions.
Each wheel contains 4 to 6 50W jamming modules, so a full set of two wheels supports up to 12 simultaneous operating bands in the frequency range from 300 MHz to 6 GHz.
The system is suitable for use on vehicles that require covert placement of EW equipment, as well as for rapid deployment in stationary or mobile positions.
OPERATING PRINCIPLE:
«Dokatka» implements the principle of broadband signal suppression in the operating range of 300–6000 MHz.
Each jamming module transmits 50W of power to the corresponding antenna — omnidirectional (dome) or directional.
Control is carried out via a wired remote with a 5m cable and an auto-detection function:
the automatic system detects enemy activity → activates jamming → deactivates it after the signal disappears.
Built-in thermal sensors, an active cooling system (coolers), and a DC-DC stabilizer guarantee safe and stable operation even under prolonged load.
POWER AND INSTALLATION:
The system is powered by batteries with a capacity from 1.5 kWh to 6 kWh (Li-Ion or LiFePO4), with the possibility of:
- charging from a 220 V mains,
- connecting to a 12 V car (with discharge protection).
Power terminals ensure quick power connection, and cables (4.5 m) allow flexible placement of system components. All control buttons are moisture-protected.
ADVANTAGES OF THE «Dokatka» SYSTEM:
- Disguise as truck wheels — ideal for covert deployment
- Modularity: 4 to 6 bands in each wheel, up to 12 in a set
- Autonomy: operation from high-capacity batteries + charging from car or mains.
- Automatic operation: remote with auto-detection independently turns jamming on/off.
- Easy installation: wheels are easy to transport and install.
- Protection and reliability: active cooling, power stabilization, moisture-protected buttons.
| Control unit optionally: 8 to 12 bands | 300-6000MHz |
| Omnidirectional/directional antenna | Quadrifilar, directional |
| Wired remote with auto-detection 5m | Yes |
| Rechargeable battery (optional) | 1.5Kw 60Ah, 3Kw 120Ah, 4.5Kw 180Ah, 6Kw 240Ah |
| Battery type | Li-Ion, Lifepo4 |
| Car charging cable 12V 4.5m (Car battery discharge module. Low voltage protection) | Yes |
| Mains charger 29.2V | Yes |
| Battery-EW connection cable (PVSng-LS) 4.5m | Yes |
2. TECHNICAL SPECIFICATIONS OF THE EW JAMMER «Dokatka»
| Total weight | 30-40kg |
| Overall dimensions | Ø= 900mm / 720mm |
| Total consumption | 100W per band |
| Total jamming output power | 50W per band |
| Operating voltage range | 24V-28V |
| Active cooling (coolers) | Yes |
| Moisture-protected control buttons | Yes |
| Module thermal sensor | Yes |
| DC-DC voltage stabilizer | Yes |
| Battery power connection | Power terminals |
| 50W jamming modules (optional) | 300-6000MHz |
3. TECHNICAL SPECIFICATIONS OF THE WIRED CONTROL REMOTE
| Cable type | PVSng-LS |
| Cable cross-section | 3x1 |
| Cable length | 5m |
| Power-on light indication | Yes |
| Control remote connector | GX-20 3pin |
| Auto-detection. Automatic system on/off | Yes |
5. ANTENNA TECHNICAL SPECIFICATIONS
| Antenna type | Dome and directional |
| Cable type | RG402/RG405 |
| Connector type | N-Type |
| Suppression range | 100-200m (at 1.5-2.5km 1W) 200-300m (at 3-4km 1W) |
*The configuration and number of bands may vary, accordingly - the price also changes. Also, the detection function works in conjunction with the Kozhan detector, so in the maximum configuration, we offer Kozhan and EW as a set
