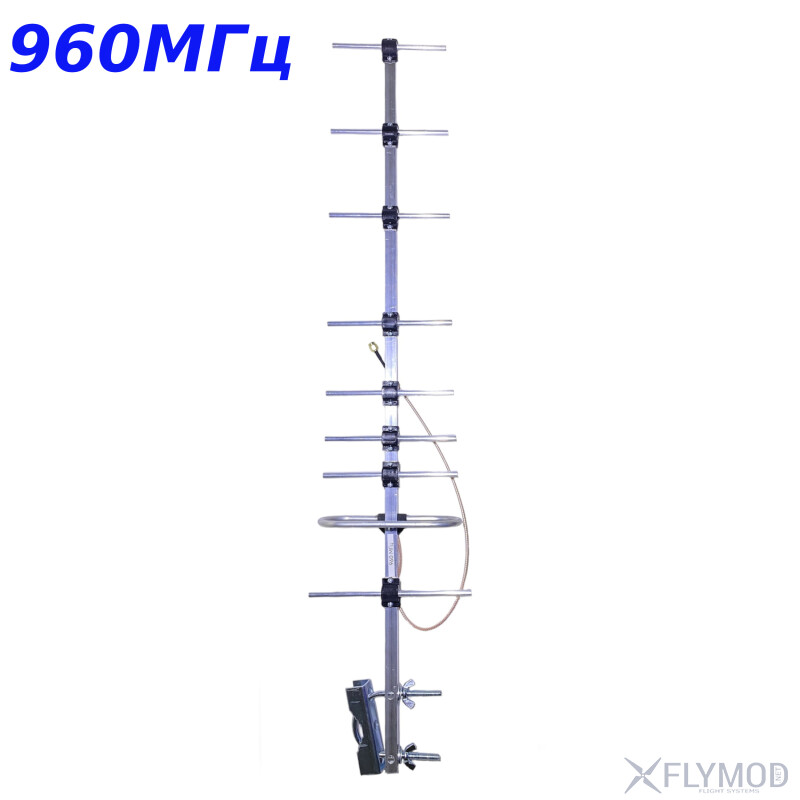

Yagi antenna, designed to operate at 735/750/915/960 MHz frequencies. 13.4dBi gain makes the signal more stable over long distances and minimizes losses. The antenna is made of aluminum and equipped with an SMA connector. The antenna has linear polarization and a beam angle of 35°, which contributes to stable signal reception and transmission. Designed for ground-based radio stations, it can be mounted on a tripod or mast, and is also used in repeaters.

Features

• Powerful 13.4dBi gain
• Antennas designed for longer-range communication
• Made of durable aluminum

Specifications

• Frequency (selectable): 735/750/915/960MHz
• Polarization: linear
• Gain: 13.4dBi
• Beam angle: 35°
• Input impedance: 50 Ω
• SWR: 1.1
• Number of directors: 7
• Connection cable length:
  • 735MHz - 420mm
  • 750MHz - 410mm
  • 915MHz - 450mm
  • 960MHz - 430mm
• Connector: SMA
• Material: aluminum
• Dimensions:
  • 735MHz - 950x205x60mm
  • 750MHz - 900x200x60mm
  • 915MHz - 755x163x60mm
  • 960MHz - 750x157x60mm
• Weight:
  • 735MHz - 354g
  • 750MHz - 341g
  • 915MHz - 312g
  • 960MHz - 303g

Package Contents

• 1 x Yagi directional antenna

SWR Chart 960Mhz Yagi

SWR Chart 750Mhz Yagi
