Product Code: FA100-WHA-4972-17-2-100
2 250 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Polarization:
RHCP / LHCP
Weight (depends on size):
58 g
Frequency range:
4.9–7.2 GHz
Beam angle:
18–38°
All specifications
We will deliver this product:
Payment
Description

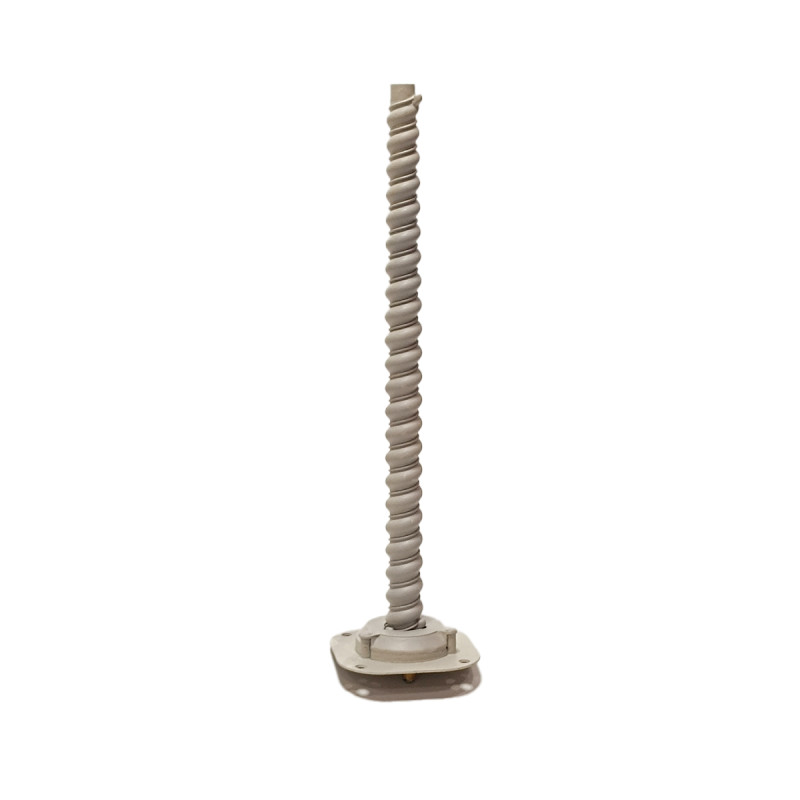

Broadband helical antenna for the 4.9 - 7.2 GHz band, RHCP or LHCP, gain from 13 dBi at 4.9 GHz to 17 dBi at 7.2 GHz. Beamwidth from 18 to 38 degrees. Optimized for use as part of a ground station.
Frequency range: 4.9-7.2 GHz
Beamwidth: 18-38 degrees
Number of turns: 14
Gain: 13-17 dBi
Polarization: RHCP or LHCP
VSWR: not more than 2
Connector: SMA
Dimensions: 64x64x250 mm
Weight: 58 g
Specifications
Connector type
SMA
Polarization
RHCP / LHCP
Weight (depends on size)
58 g
Size
64×64×250 mm
Antennas
Frequency range
4.9–7.2 GHz
Beam angle
18–38°
Enhancements
13–17 dBi
There are no reviews for this product, be the first to leave your review.
No questions about this product, be the first and ask your question.
