Product Code: FA103-17816-103
In Stock
3 192 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Housing type:
Yagi
Material:
aluminum
Polarization:
linear
Weight (depends on size):
169 - 180 g
All specifications
We will deliver this product:
Payment
Description
*** Minimum order - 3000 UAH! Ships from a remote warehouse. Shipping time 2-5 days.

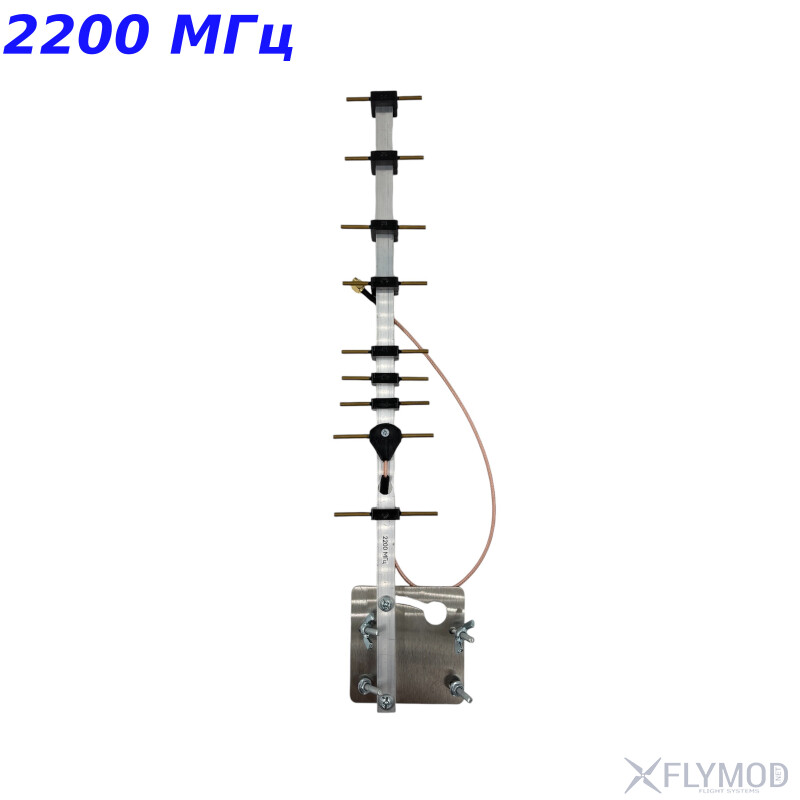

The Yagi directional antenna is designed for operation at 2200/2400/2600MHz frequencies and provides 13.4dBi gain, which increases signal transmission efficiency. A 35° beamwidth ensures signal concentration in the desired direction for optimal performance. An input impedance of 50Ω and a standing wave ratio (SWR) of 1.15 minimize power loss, ensuring system stability and performance. Suitable for ground-based radio stations, it can be mounted and extended on a tripod or mast. Indispensable for use in repeaters.
Specifications
- Frequency: 2200/2400/2600MHz
- Polarization: linear
- Gain: 13.4dBi
- Beamwidth: 35°
- Input impedance: 50Ω
- SWR: 1.15
- Number of directors: 7
- Connection cable length:
- 2200MHz - 330mm
- 2400MHz - 290mm
- 2600MHz - 320mm
- Connector: SMA
- Material: aluminum
- Dimensions:
- 2200MHz - 410x67x23mm
- 2400MHz - 400x68x23mm
- 2600MHz - 370x60x23mm
- Weight:
- 2200MHz - 180g
- 2400MHz - 175g
- 2600MHz - 169g
Package Contents
- 1 x Yagi directional antenna
Specifications
Connector type
SMA
Housing type
Yagi
Material
aluminum
Polarization
linear
Weight (depends on size)
169 - 180 g
Antennas
Frequency range
2200 / 2400 / 2600 MHz
Beam angle
35°
Enhancements
13.4 dBi
