Automotive dome-type EW system «AMULET-0406 2127 40C 6M» + «AMULET-0710 30C 6M» — these are high-tech solutions for neutralizing kamikaze drones and other UAVs, designed for use in complex combat conditions. Thanks to innovative technologies, these devices provide complete protection within a radius of up to 150 m.
• Spherical protection field: A complex of twelve antennas (located in five compact "buckets" on the roof) creates an ideal dome field that effectively blocks drone control signals.
• High reliability: Resistance to vibrations and shocks ensures stable operation even in harsh front-line conditions.
• Energy efficiency: The devices are equipped with autonomous batteries that can be easily charged both from a car and from a standard power grid.
• Possibility of restoring all elements and components in case of damage or impact.
Main characteristics:
«AMULET-0406 2127 420-580 40C 6M»
- Suppression frequency range: 2.1 - 2.7GHz, 420 - 580 MHz
- Angular radiation sector 360 degrees
- Protection class IP 21
- Radiation generator power 40 W
- Operating range: up to 150 m
- Operating time: up to 55 min.
- Weight: 10 kg
- Audible low battery indicator
- LED indication in case of damage to nodes, antenna, cable, which will allow identifying the malfunction and seeking service if necessary.
«AMULET-0710 30C 6M»
- Suppression frequency range: 700–1050 MHz
- Operating range: up to 180 m
- Power: 6m×30 W, (all modules with circulators)
- Operating time: up to 55 min
- Weight: 10 kg
- Audible low battery indicator
- LED indication in case of damage to nodes, antenna, cable, which will allow identifying the malfunction and seeking service if necessary.
Package contents:

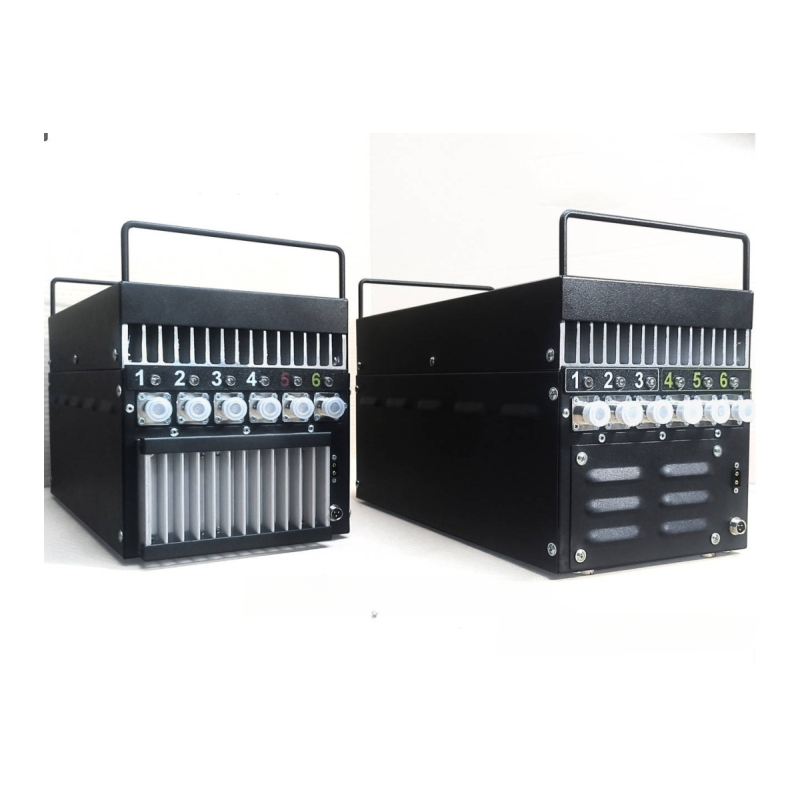

- jamming generator unit with batteries

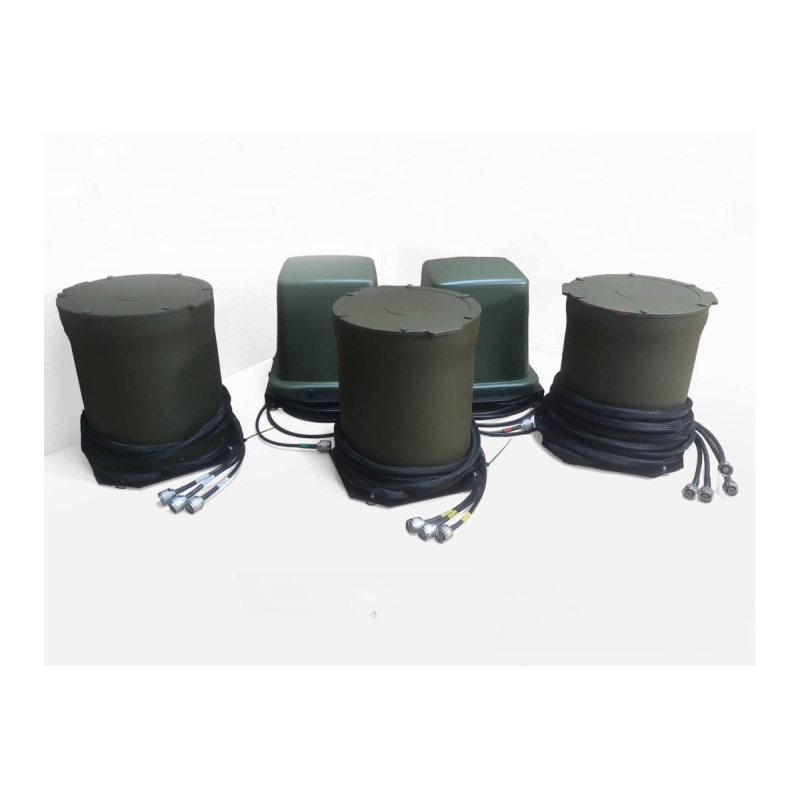

- external antennas in protective casings with 4 m cable each set
- remote start button
- 220 V power cable
- car battery power cable with fuse
- car charger
- passport - instruction manual
Advantages of «AMULET» devices
LED notification in case of module(s) malfunction. Now there is no need to check the device before each trip; in case of malfunction or partial damage, antenna loss, or device damage for other reasons, the LED indicator will notify which module and at what frequencies is not working.- Versatility: Suitable for mounting on equipment or vehicles.
- Autonomy: The battery system supports alternative power sources (ECOFLOW, etc).
- Complete set: Chargers, cables, fuses, instruction manual.
- Easy installation: Does not require special technical knowledge.
- Two chargers for car and power grid
- External spherical action antennas
- Remote on-off button
- Calibration of each module, output power corresponds to declared, we do not assemble "out of the box" without measuring the actual output power.
- Calibration of each antenna with VSWR not higher than 1.5 (we have a full closed production cycle)
Before shipping to the client, each device undergoes a series of checks:
• checking fasteners, components, dimensions, wires
• checking frequency range and radiation power
• automated on-off stress test lasting 45 min.
• separate antenna check
