Wireless Repeater SHEPIT 4.9-5.8 GHz VYRIY

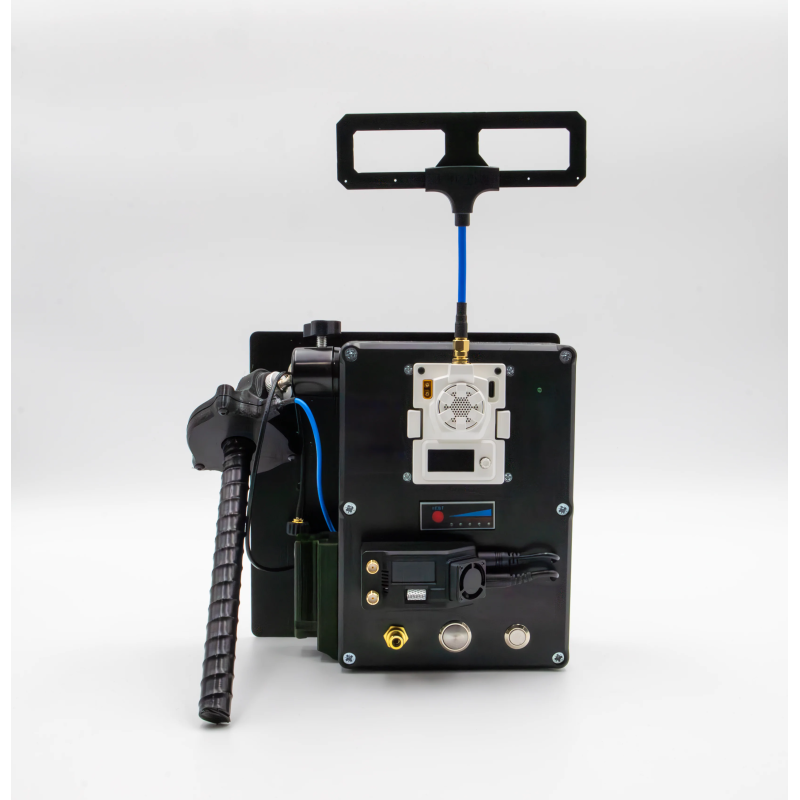

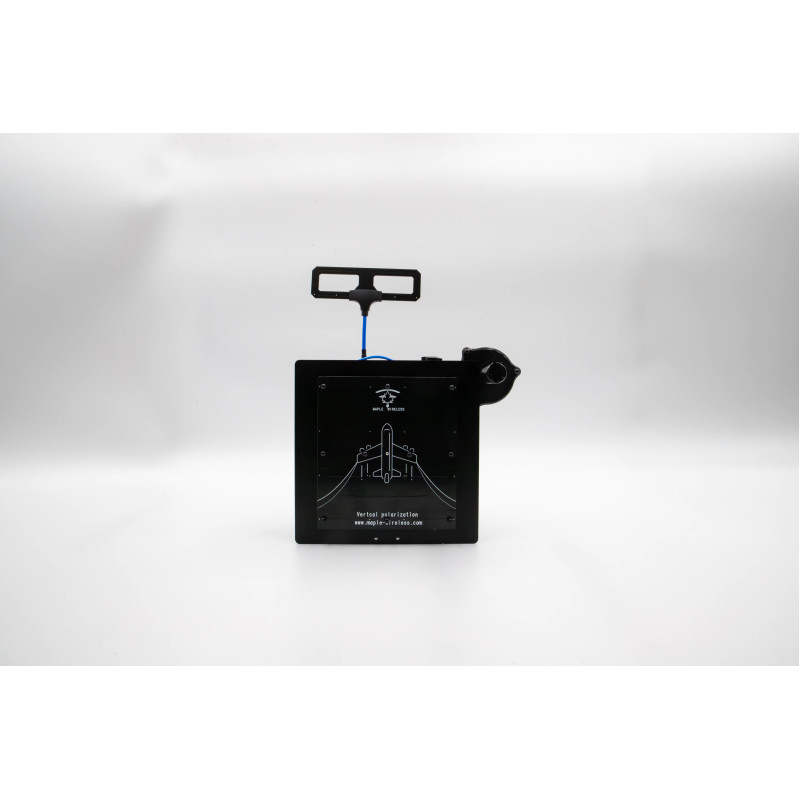

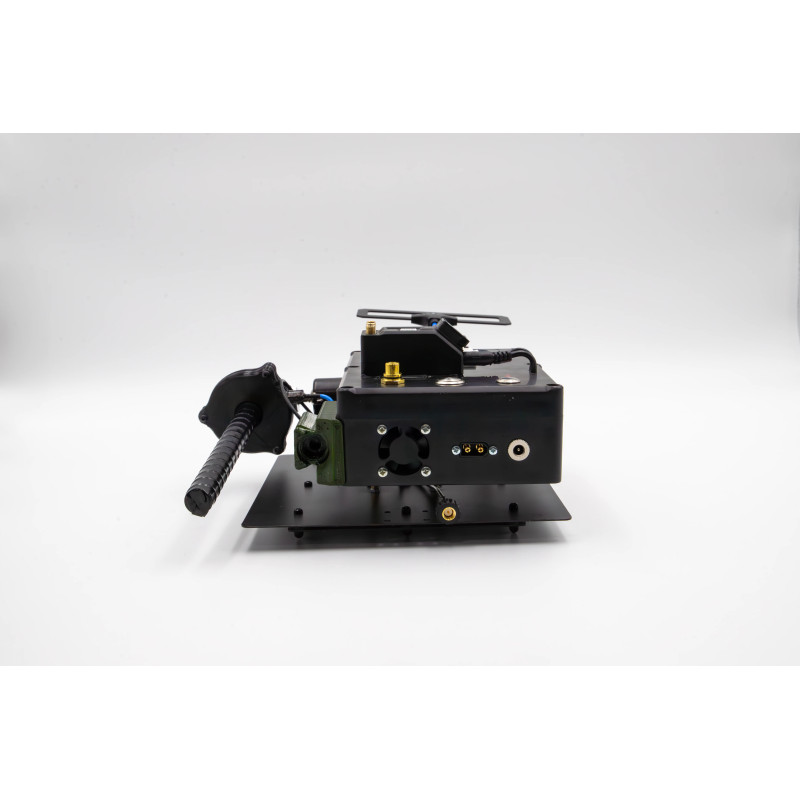

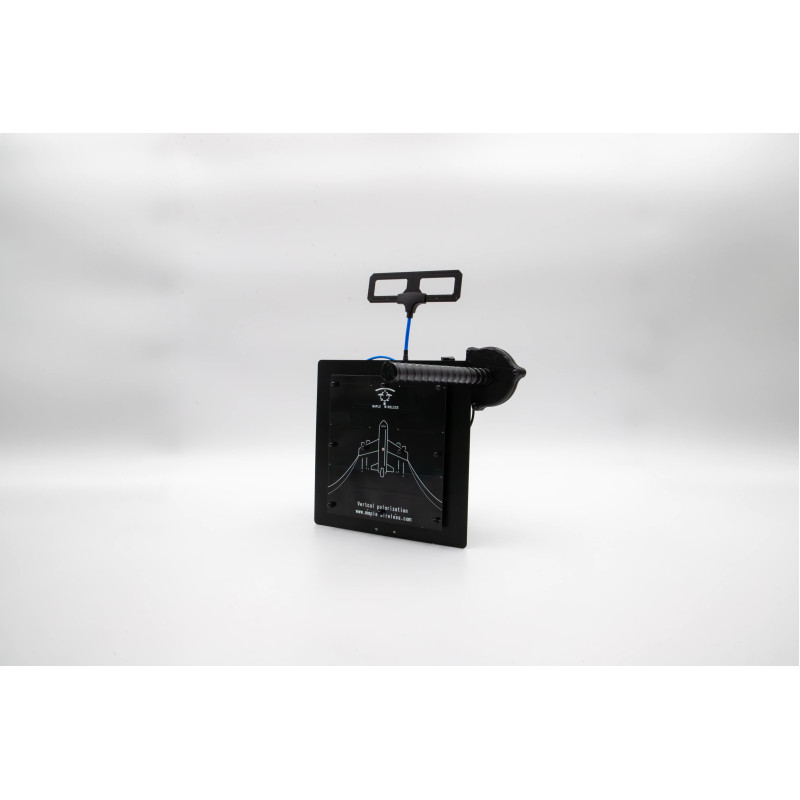

Brand: Vyriy Drone. Product type: Ground Repeater Stations. Introducing the SHEPIT 4.9-5.8 GHz ground-based wireless repeater, designed to establish reliable and stable communication between an FPV drone and the pilot over long distances. The device provides a direct radio horizon and significantly increases the operating range and improves the quality of video and control signals.
The repeater conveniently connects wirelessly to the pilot's equipment and goggles, making operation intuitive and fast. Optionally, it can be equipped with an 8m mast, a BAYBAK protective shelter, and a MARA drone-mounted repeater (depending on the communication module). The repeater supports operation in the 4.990–5.945 GHz video range, ensuring a stable video stream.
Key Advantages
- Reliable video stream in the 4.990–5.945 GHz range;
- Support for various control modules — flexibility in choosing frequencies and protocols;
- Practical high-gain antennas for maximum coverage;
- Built-in rechargeable battery with external power connection capability;
- Compact and lightweight design for quick installation and transport.
| Supports communication modules | ELRS, TBS Crossfire |
| FPV drone control frequency | Quick-change module (735 frequency included) supported frequencies: 735, 750, 868, 915 MHz, 2.4 GHz * |
| Transmitter power | 0.025 - 2 Watts * |
| FPV drone video signal reception range | Stedyview X VRX 5.0 GHz 4990-5945 MHz |
| Receiving antenna gain | 21 dBi patch, 14 dBi helix |
| Communication channel for control equipment | 2.4 GHz, ELRS |
| Video signal transmission channel to drone operator | 1.3 GHz |
| Weight | 1200 g |
| Length with antennas connected | 180 mm |
| Width with antennas connected | 220 mm |
| Height with antennas connected | 200 mm |
| Mounting method to mast | Quick-release |
| Power elements | Built-in 3S1P 21700 Lilon battery |
| Operating time | 3.5 hours, standby mode - 3 days |
| Charger | Included |
| Receiver for pilot's goggles | 1.3 GHz video receiver included |
| External battery connection | XT-60, from 3s to 6s |
| Remote on/off | Present |
The SHEPIT repeater is suitable for both professional operators and FPV enthusiasts who require stable video transmission and continuous communication over long distances. The antenna gain parameters — 21 dBi (patch) and 14 dBi (helix) — allow optimizing the configuration for specific tasks: from maximum range to wider coverage area. Support for quick-change control modules provides flexibility in choosing frequencies (735, 750, 868, 915 MHz, 2.4 GHz), and the transmitter power up to 2 W ensures reliable control channels.
The repeater's design takes into account mobility and quick installation: compact dimensions with antennas (180×220×200 mm) and a weight of 1200 g simplify transport and installation on masts or poles. The built-in 3S1P 21700 Lilon battery provides up to 3.5 hours of continuous operation, standby mode — up to 3 days; if necessary, an external battery can be connected via the XT-60 (3s–6s) connector. The kit includes a charger and a video receiver for the pilot's goggles at 1.3 GHz.
If you are looking for a reliable solution to extend the control and video transmission range of drones — SHEPIT 4.9-5.8 GHz from Vyriy Drone will be the optimal choice for field operations, filming, and reconnaissance missions.
