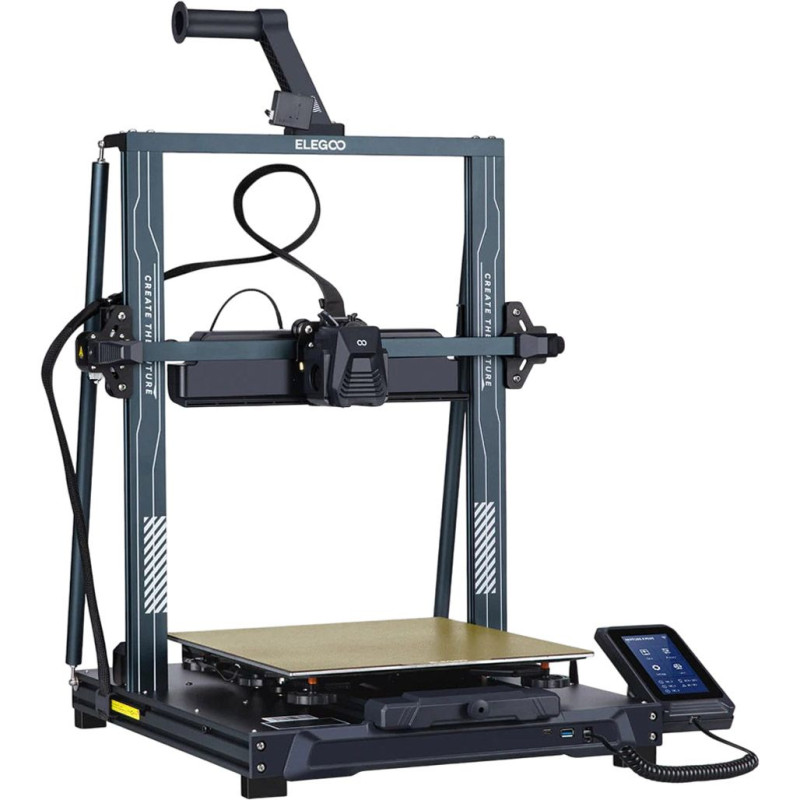

ELEGOO Neptune 4 MAX 3D Printer (Elegoo Neptune 4 Plus) is a powerful FDM printer from the ELEGOO brand, designed for fast and precise printing of various models. The device combines high calibration accuracy, support for thin print layers, and material versatility, ensuring clear detail and a uniform surface for finished products.
The automatic bed leveling system with 121 (11 × 11) points allows for quick and reliable printer preparation, while the removable 4.3ʺ color touchscreen provides intuitive control. An extended hotend capable of operating up to 300°C and an all-titanium alloy thermal barrier allow printing with high-temperature materials, including nylon. A 60W ceramic heating element combined with a brass heating block ensures fast and uniform filament heating even during intensive printing.
The printer is equipped with a Direct extruder, an adaptive pressure function that regulates filament flow based on print speed, a filament run-out sensor, and smooth feeding for stable extrusion. The print resume function in case of power outages saves results and allows the process to continue without loss. File transfer is supported via USB drive and Wi-Fi/WLAN network, with remote control and centralized management of multiple devices simultaneously.

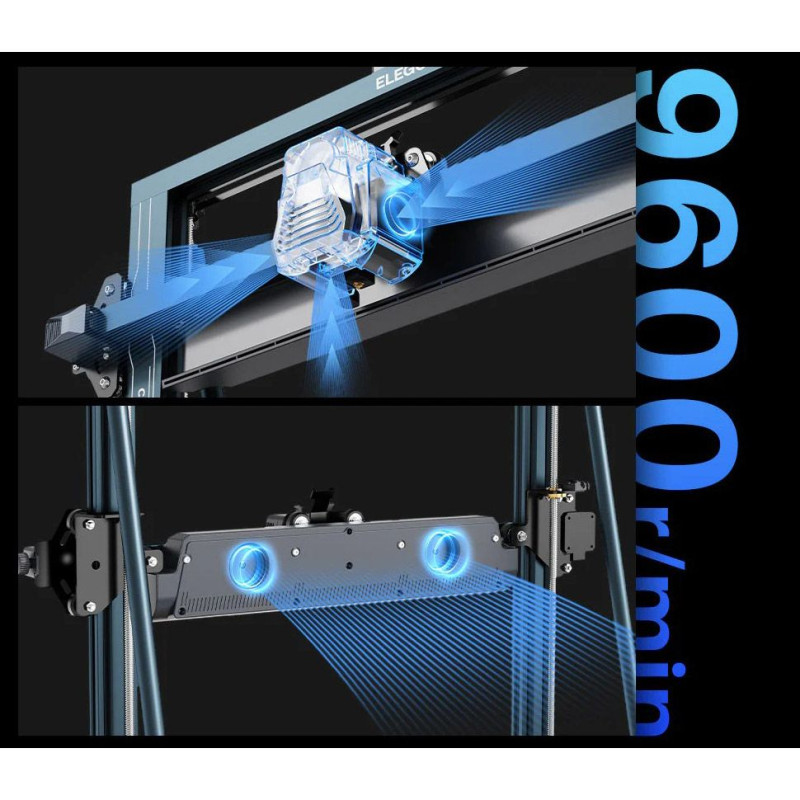

The print bed with a special PEI coating ensures excellent adhesion during printing and easy detachment of finished products after the process, reducing the risk of deformation. A comprehensive cooling system with 4015, 3010, and 6025 type fans cools newly laid layers, improving layer adhesion quality and surface appearance. Additionally, the printer has LED lighting on the extruder head and frame crossbar for convenient monitoring of the printing process.
Features
- Filament compatibility: PLA / TPU / PETG / ABS / ASA / Nylon
- Filament run-out sensor, smooth feeding
- Direct extruder
- Removable touchscreen
- Print resume: saves work results in case of power outages
- Interfaces: Wi-Fi / WLAN / USB
- LED lighting on the extruder head and frame crossbar
- Easy assembly
Specifications
| Extrusion | 5.2 : 1 |
| Printing technology | FDM (Fused Deposition Modeling) |
| Print volume | 420 × 420 × 480 mm |
| Print bed size | 430 × 430 mm |
| Filament diameter | 1.75 mm |
| Nozzle diameter | 0.4 mm |
| Nozzle design | Extended hotend + 60W ceramic heating element + brass heating block |
| Number of nozzles | 1 |
| Thermal barrier | All-titanium alloy |
| Print accuracy | ±0.1 mm |
| Layer thickness | 0.1 – 0.35 mm |
| Maximum print speed | 500 mm/s (default: 250 mm/s) |
| Maximum nozzle temperature | 300°C |
| Maximum bed temperature | 85°C |
| Bed power | 320 W |
| Voltage | 100 – 120 V / 220 – 240 V |
| Automatic leveling | 121 (11 × 11) points |
| Screen | 4.3ʺ color touchscreen |
| Processor | 4-core, 64-bit ARM / 1.5G |
| Firmware | Klipper |
| ROM memory | 8 GB |
| Software | Cura, Simplify3D, PrusaSlicer |
| File format | STL, OBJ |
| Supported languages | English, French, German, Russian, Italian, Spanish, Japanese, Chinese |
| Required printer operating space | 658 × 950 × 960 mm |
| 3D printer dimensions | 658 × 632 × 740 mm |
| Packaging dimensions | 790 × 690 × 960 mm |
| Net weight | 18.1 kg |
| Gross weight | 26.35 kg |
Package Contents
- ELEGOO Neptune 4 MAX 3D Printer — 1 pc.
- Touchscreen with stand — 1 pc.
- Wi-Fi antenna — 1 pc.
- Filament detector — 1 pc.
- PLA filament sample — 1 pc.
- Spool holder — 1 pc.
- Fan unit — 1 pc.
- Support rod — 1 pc.
- Power cable — 1 pc.
- RJ45 cable — 1 pc.
- Memory card — 1 pc.
- Nozzle cleaning needle — 1 pc.
- Cable tie set — 1 pc.
- Card reader — 1 pc.
- Printer assembly tool kit — 1 pc.
- Glue stick — 1 pc.
- Manual — 1 pc.
Brand: ELEGOO. Product type: 3D Printers. The model combines compact external dimensions with a large print volume and a wide range of interfaces, making it an excellent choice for hobbyists, educational institutions, and professional workshops.
