Spektrum Electromagnetic Radiation Indicator

Brand: SPEKTRUM

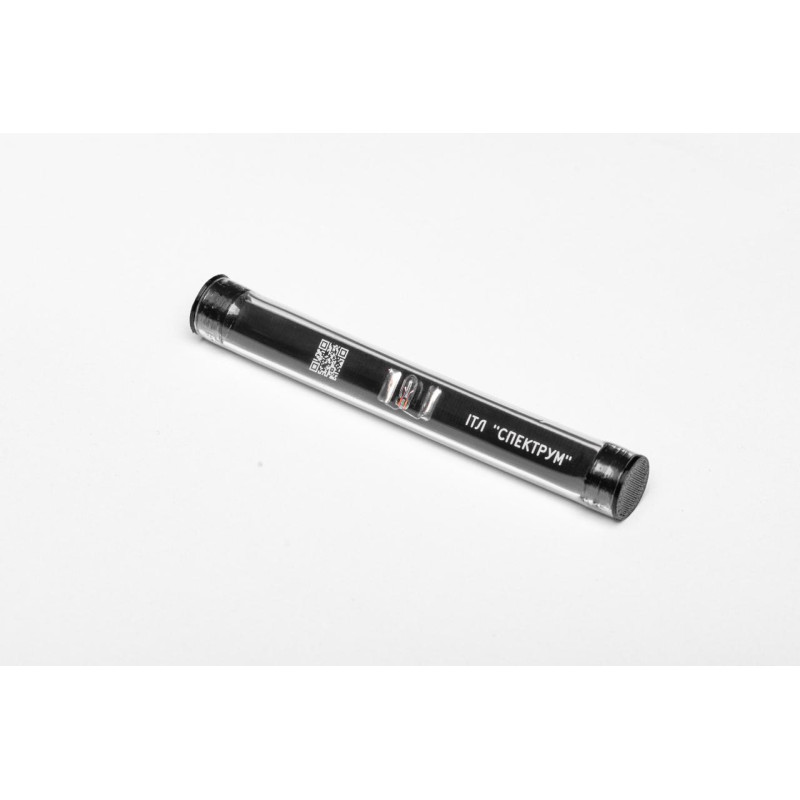

Name: Spektrum Electromagnetic Radiation Indicator
Product Type: EW > Trench EW Jammers
Product ID: 19053

Brief Description

A passive indicator for EW jammer operation from ITL "Spektrum", designed for rapid detection of powerful electromagnetic fields and primary analysis of signal parameters. The device operates without an external power source: the electromotive force (EMF) induced in the antenna by an external field powers the light indicator. The design is focused on ease of use in field conditions, allowing for quick determination of strong radiation presence and primary assessment of its nature.

Precautions

Attention:

• The device is effective only for sufficiently powerful signals.
• Avoid direct contact of the indicator with extremely powerful emitters to prevent damage to the antenna and light indicator.

Care and Storage

To maintain the indicator's functionality and extend its service life, follow these simple care rules:

• Store the device in a dry place.
• Avoid mechanical impacts and deformation of the antenna and casing.
• Clean surfaces with a dry or slightly damp cloth; do not use aggressive solvents.

Capabilities

The indicator allows:

• Detecting powerful electromagnetic radiation across a wide frequency spectrum.
• Determining the polarization of microwave radiation.
• Detecting defects in antenna and feeder channels through indirect analysis of induced EMF and light indicator behavior.

Technical Specifications

Operating Principle: EMF induction in the antenna from an electromagnetic field.
Frequency Range: from low frequencies (approximately several hundred kHz) to the microwave range, up to ~1.2 GHz.
Sensitivity and Operating Conditions: effectively operates in strong radiation zones: from ~5 W in direct proximity to the emitter to hundreds of watts at a distance of several meters. These parameters allow for quick identification of powerful microwave radiation sources and estimation of their approximate intensity in field conditions.

The device is designed for use as a primary detection and diagnostic tool in electronic warfare (EW) systems and related tasks where rapid operational assessment of the presence and nature of electromagnetic fields is crucial. The indicator's design ensures autonomy, ease of operation, and reliability in field conditions. The description includes all provided information: passive operating principle, absence of external power, warnings regarding operation near extremely powerful emitters, care recommendations, a list of capabilities, and technical specifications, including frequency range and approximate sensitivity limits.
