Yagi Antenna 1900 MHz (t) Plastic 8-9dBi

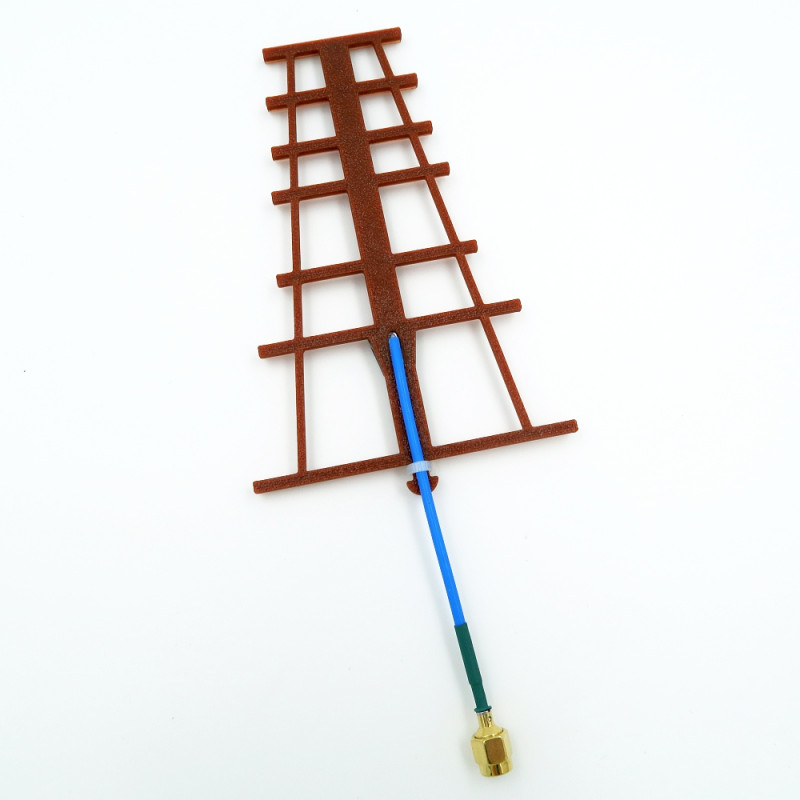

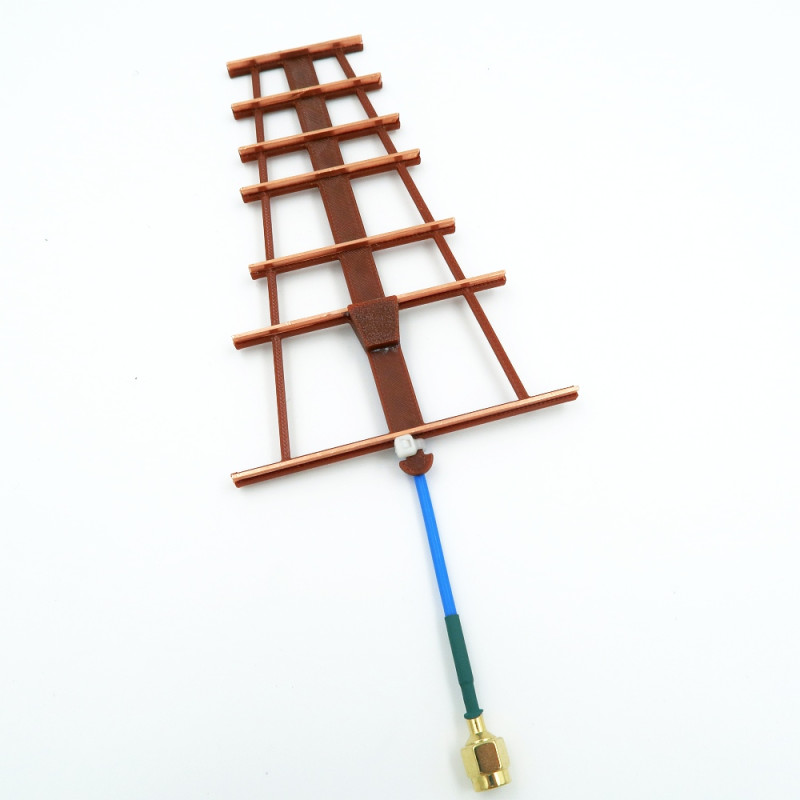

The Yagi antenna from [brand] is a directional outdoor antenna designed for operation in the 1900 MHz band with 8-9dBi gain. The model combines compact dimensions of 122*80*3 mm and a low weight of 11 g, making it an optimal choice for mounting on vehicles, UAVs (drones), or stationary brackets where mobility and low visibility are important.

The antenna body is made of plastic with integrated thin metal conductors, ensuring the necessary electrical characteristics with minimal weight. The plastic enhances resistance to corrosion and atmospheric influences, while the metal conductors reliably form an effective directional radiation pattern. Thanks to its design features, this antenna is less noticeable to reconnaissance equipment and can be used in tasks where low equipment visibility is crucial.

Features and Benefits

• Operating range: 1900 MHz — optimal for many commercial and specialized applications;
• 8-9dBi gain provides increased range and better reception selectivity;
• Linear polarization is suitable for stable unidirectional communication;
• Compact size 122*80*3 mm and weight 11 g for easy mounting and use on mobile platforms;
• Plastic housing with integrated metal conductors — combining environmental resistance and necessary radio engineering characteristics;
• 7-element (director) design forms a narrow beam angle of 37° for focusing energy in the desired direction;
• Equipped with an SMA connector and a solid pigtail cable for reliable connection to equipment.

Practical Applications

• Reliable directional radio communication between units in field conditions;
• Directional interception and signal selection in special operations;
• Installation on drones for reconnaissance, relay, or communication channel amplification;
• Use in industrial telecommunication systems and amateur networks where mobility and resistance to external factors are important.

The antenna is designed for applications where high directivity, compactness, and low weight are important. It is suitable for both military and special operations, as well as civilian engineering solutions and amateur projects.

Technical Specifications

The model is available for purchase at the Flash Army online store, ready for fast delivery and installation. To buy the Yagi 1900 MHz antenna with a plastic support structure or to get advice on compatibility with your equipment, contact Flash Army customer support or place an order on the website.
