Yagi Antenna 780MHz — 4 sections, 8.6 dBi ()
The Yagi antenna from the manufacturer is a directional transceiver designed for stable signal amplification in the 780 MHz frequency band. The model has a four-section (director) design and provides energy concentration in a narrow beam, which reduces interference and improves communication quality over significant distances.
This antenna combines compact dimensions and low weight with a high gain factor. The body and elements are made of aluminum, which guarantees corrosion resistance and long-term outdoor operation. The connection connector is SMA, making the antenna compatible with many receivers, modems, and wireless solutions. The antenna is suitable for stationary and temporary installations: home receivers, fixed wireless links, amateur and professional radio communication.
Key Features
| Parameter | Value |
|---|---|
| Frequency | 780 MHz |
| Polarization | linear |
| Number of sections (directors) | 4 |
| Beam angle | 40° |
| Connector | SMA |
| Material | aluminum |
| Gain | 8.6 dBi |
| Dimensions | 370*189*56 mm |

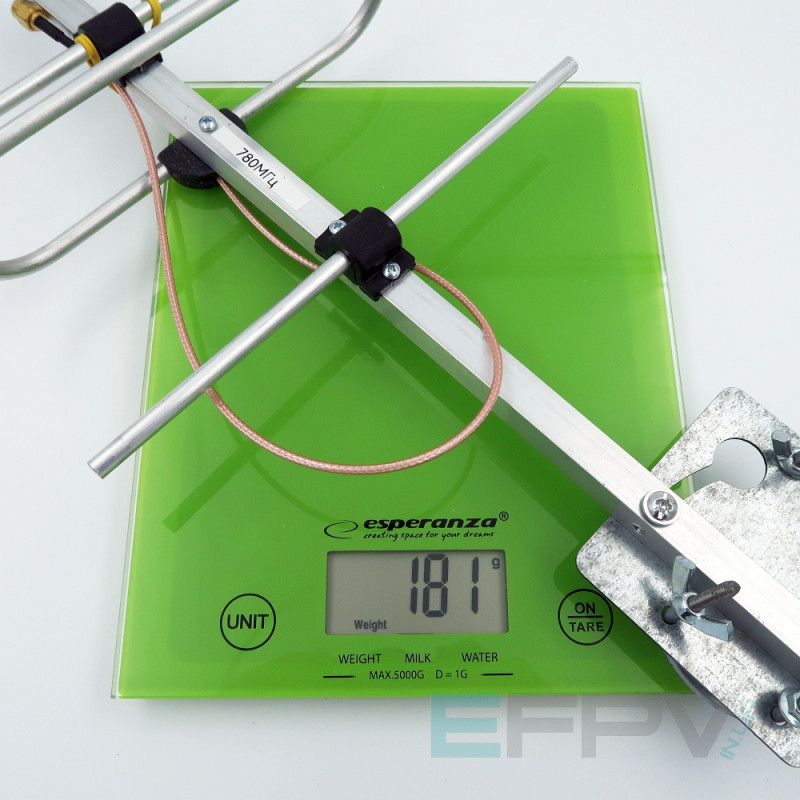

| Weight | 181 g |
| Manufacturer | |
| Product type | Yagi Antennas |
The 780 MHz Yagi antenna is optimally suited for tasks requiring directional improvement of signal reception and transmission. With a gain of 8.6 dBi, it provides increased communication range and connection stability even in environments with interference. The 40° beam angle allows for precise aiming of the antenna at the signal source, reducing the impact of side signals.
Compact dimensions of 370*189*56 mm and a weight of 181 g make installation simple and economical in terms of load on brackets. The aluminum casing ensures durability and reliable protection against atmospheric conditions. The SMA connector guarantees quick connection to a wide range of devices without additional adapters in many cases.
Advantages of this Yagi antenna:
- High gain of 8.6 dBi for improved communication range and reception quality.
- Directionality with a beam angle of 40° for precise aiming at the signal source.
- Lightweight and durable aluminum casing — resistance to atmospheric influences.
- Compact dimensions of 370*189*56 mm and low weight of 181 g facilitate installation and reduce load on brackets.
- Universal SMA connector for compatibility with many devices.
Installation recommendations: before mounting, determine the optimal direction and mounting height to achieve maximum performance, check the compatibility of the SMA connector with your equipment, and, if possible, use a sturdy bracket for fastening to external structures. The antenna is well-suited for home receivers, fixed links, amateur radio, and professional applications where signal directionality and reliability are required.
By purchasing from the Flash Army online store, you receive an original device from the manufacturer with full комплектація and technical support. This model is an excellent choice for users looking for a compact, lightweight, and effective directional antenna for the 780 MHz band.
