Microstrip Dipole 650-3000 (АB48202770000101) by AB-Antennas

Introducing the compact and reliable microstrip dipole antenna model АB48202770000101 from AB-Antennas. This antenna is designed to operate across a wide frequency range and is suitable for FPV applications and other wireless systems requiring high-quality omnidirectional signal transmission and reception. The model combines small dimensions with stable technical characteristics, making it convenient for installation in confined spaces.

Key Features and Parameters:

• Directivity: Omnidirectional (circular)
• Dimensions: 180x80mm
• Polarization: Horizontal/Vertical
• Operating Frequency Range: 650...3000 MHz
• Gain: 2 dBi
• Input Impedance: 50 Ohm
• SWR: 600...3000 MHz 2
• Max Power: 5W
• Connector: SMA female
• Application Area: FPV and others

The antenna features a small, elegant design measuring 180×80 mm, allowing for installation on drones, portable two-way radios, video surveillance systems, or in stationary solutions with limited space. Its omnidirectional (circular) characteristic ensures uniform signal reception and transmission around the antenna, which is particularly useful for FPV flights where the direction of the signal source changes.

Polarization can be either horizontal or vertical, adding flexibility for integration into existing communication systems. A modest gain of 2 dBi indicates a focus on stability and versatility rather than narrow-beam "long-range" communication, making the antenna ideal for local solutions.

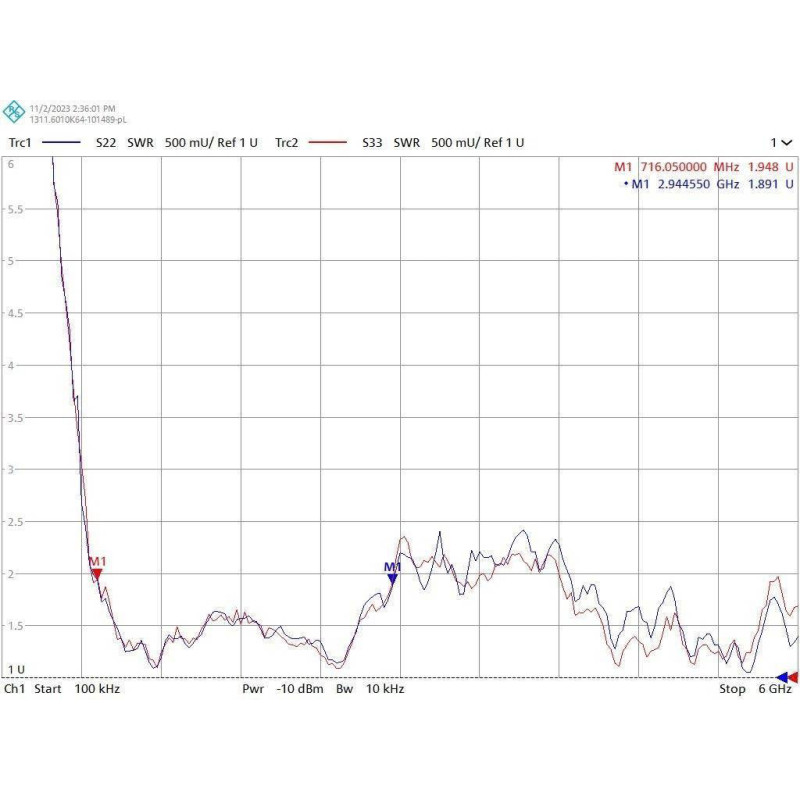

Technical parameters: an operating frequency range of 650...3000 MHz and an input impedance of 50 Ohm ensure compatibility with most modern transmitters and receivers. The SWR is specified as 600...3000 MHz 2, providing an indication of impedance matching across a wide frequency range. A maximum permissible power of up to 5 W ensures reliable operation in amateur and industrial applications without an elevated risk of antenna damage.

The SMA female connector makes connection simple and universal: the antenna easily interfaces with cables and adapters for various types of equipment. Thanks to its size and characteristics, this model is an excellent choice for users seeking a balance between compactness and operating frequency range.

Where to Apply Effectively

The antenna is suitable for FPV systems, portable two-way radios, data transmission devices in urban environments, and small access points. With proper placement and matching with cables and equipment, it provides a stable signal within the specified range.

Model: Microstrip Dipole 650-3000 (АB48202770000101); Manufacturer: AB-Antennas; Category: Antennas > Dipole Antennas.
