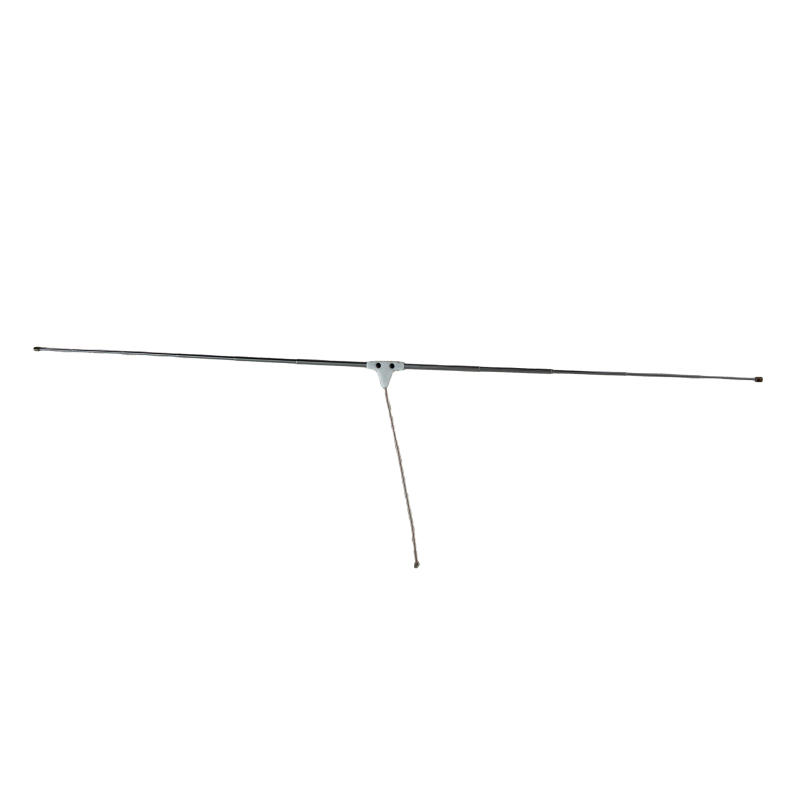

COALAS::TELESCOPE-160 Antenna — Dipole Type for 160 MHz
Model: COALAS::TELESCOPE-160. Manufacturer: Coalas systems. This is a compact, lightweight, and portable dipole antenna designed for reliable reception and transmission in the low-frequency range around 160 MHz. The telescopic design ensures quick deployment and convenient storage, making this antenna ideal for field applications, mobile, and suspended solutions.
Description and Advantages
COALAS::TELESCOPE-160 stands out for its simple design and balanced parameters: low weight, compact dimensions when folded, and sufficient bandwidth for stable operation within 155–165 MHz. The antenna is suitable for communication systems, monitoring, and portable equipment where compactness, reliability, and ease of installation are important.
Technical Specifications
COALAS::TELESCOPE-160 Specifications| Frequency Range | 155 MHz – 165 MHz |
|---|---|
| Resonant Frequency | 160 MHz |
| Bandwidth | 10 MHz (VSWR < 1.5) |
| Gain | 2 dBi |
| Connector | IPEX Female |
| Cable | RG178, length 220 mm |
| Dimensions (unfolded) | 910 mm × 30 mm |
| Dimensions (folded) | 240 mm × 30 mm |
| Weight | 26 g |
| Product Type | Antennas > Dipole Antennas |
| Manufacturer | Coalas systems |
Additional Information

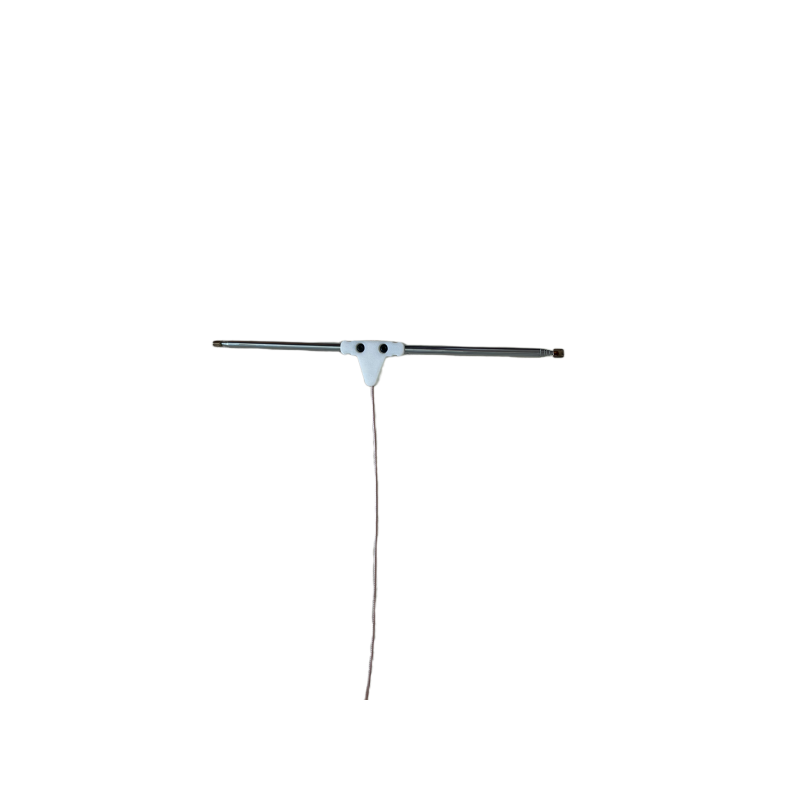

The telescopic design of COALAS::TELESCOPE-160 allows adjusting the antenna length according to operating conditions: when unfolded, the length is 910 mm, when folded — 240 mm, with a section diameter of 30 mm. This design makes it convenient for transport and installation in confined spaces. Thanks to a gain of 2 dBi and a narrow operating bandwidth of 10 MHz, the antenna provides stable and high-quality reception within 155–165 MHz, with optimal performance at the 160 MHz resonance.
The IPEX Female connector and integrated RG178 cable with a length of 220 mm simplify connection to various receivers and transmitters that support this interface. Its low weight — only 26 g — makes COALAS::TELESCOPE-160 a desirable choice for portable systems where minimal load on the device's structure is important. Recommended for use in communication systems, monitoring, and portable equipment where compactness and reliability are key.
Other technical details and compatibility should be clarified according to the documentation of the device to which the antenna is planned to be connected. COALAS::TELESCOPE-160 — a practical solution for users seeking a balance between size, weight, and performance in the 155–165 MHz range.
