Microstrip Trident Dipole Antenna 868-1094/1583-3000 (AB48202770000124) AB-Antennas

Manufacturer: AB-Antennas. Category: Antennas > Dipole Antennas.

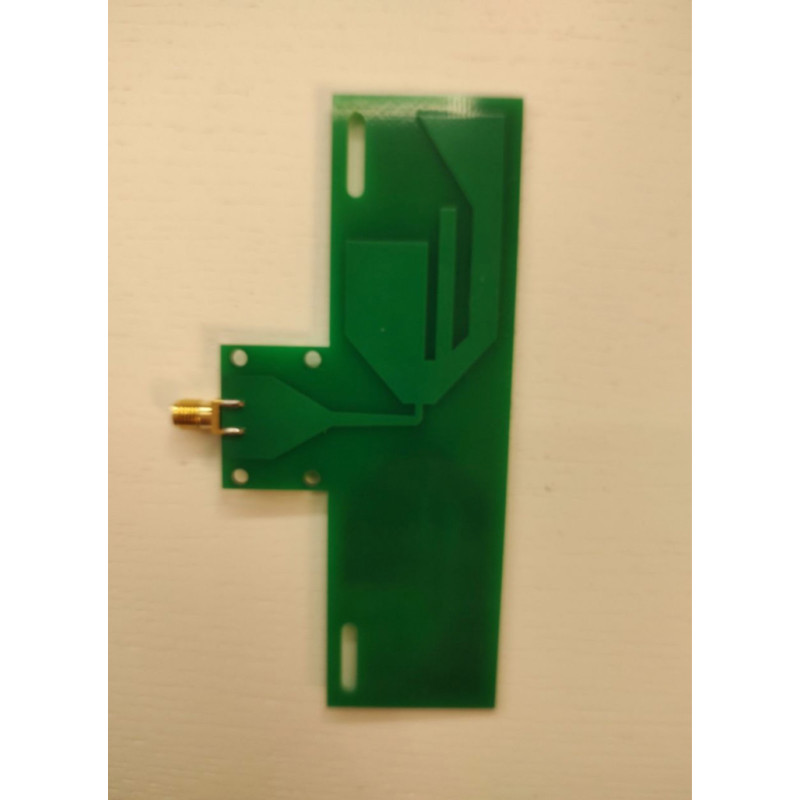

This microstrip dipole antenna combines a compact form factor and technical versatility, making it an ideal choice for applications in modern radio frequency systems. The trident design ensures stable operation in two frequency bands: 868–1094 MHz and 1583–3000 MHz with a standing wave ratio (SWR) of less than 2, guaranteeing efficient signal transmission and reception with minimal losses.

Specifications

• Antenna type: Microstrip dipole antenna.
• Frequency range: 868-1094 MHz and 1583-3000 MHz (SWR < 2).
• Gain: 2 dB.
• Radiation pattern: Omnidirectional, providing uniform coverage in the horizontal plane.
• Polarization: Vertical/horizontal — supports various installation and orientation schemes.
• Input impedance: 50 Ohms, compatible with most RF devices and receivers.
• Dimensions: 120x35 mm — compact and convenient for mounting in confined spaces.
• Connector: SMA female — standard connector for simple and reliable connection.
• Compatibility: The antenna can operate in FPV communication systems, making it suitable for drones, remote control, and real-time video transmission.

The antenna's design ensures low losses and a stable gain of 2 dB across the entire operating range, and its omnidirectional radiation pattern makes it a good choice for mobile or moving objects where antenna orientation may change. Vertical and horizontal polarization allow the antenna mounting to be adapted to specific operating conditions and compatible devices.

Dimensions of 120x35 mm and a standard SMA female connector simplify the integration of the antenna into existing equipment designs: from small drones to stationary receivers. Broadband capability in two bands (868-1094 MHz and 1583-3000 MHz) allows the antenna to be used for various services and communication protocols, including FPV video transmission, IoT devices, and other radio systems.

By choosing this model from AB-Antennas, you get a reliable device with proven parameters: low SWR (
