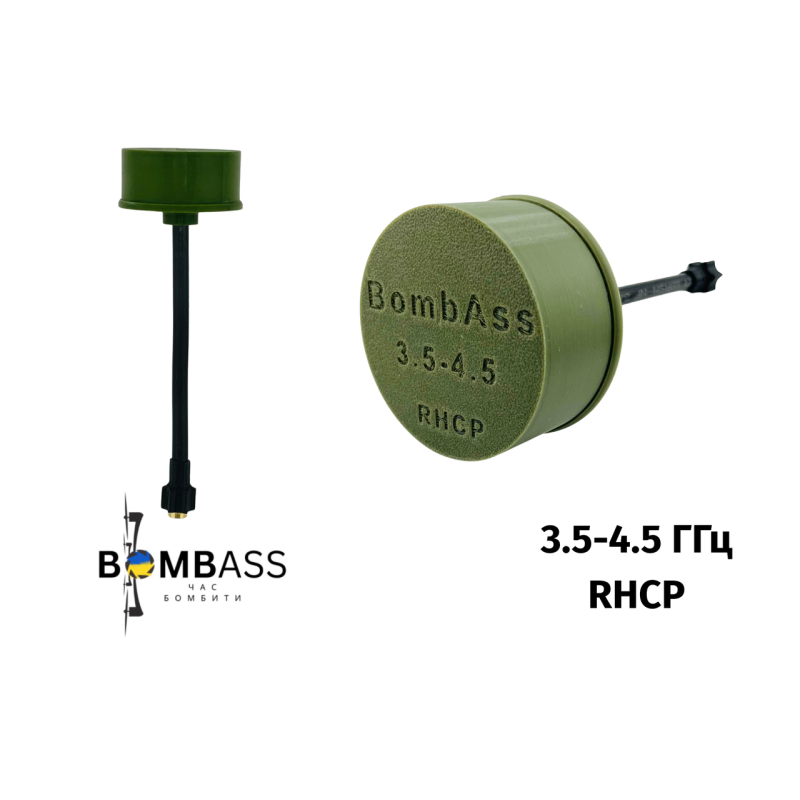

BombAss 3.5-4.5 GHz RHCP Clover Antenna

Introducing a high-quality clover antenna for UAVs and radio systems, combining compactness, reliability, and RHCP circular polarization. Manufacturer: BombAss. Category: Antennas > Dipole Antennas.

Key Specifications

• Antenna type — clover
• Frequency - 3.5-4.5 GHz

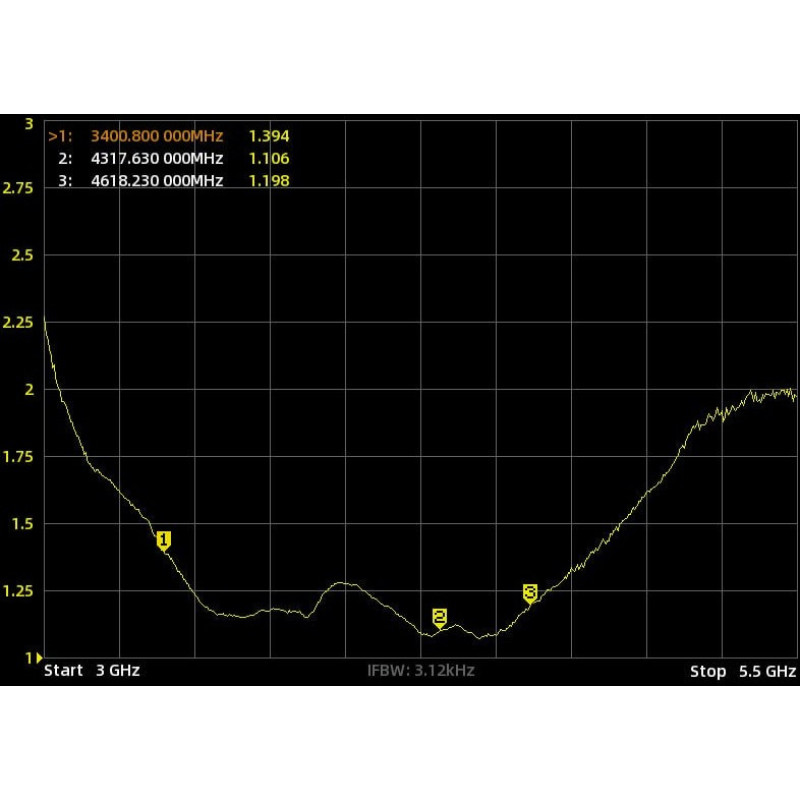

• Bandwidth - (VSWR up to 1.5) 1 GHz
• Connector type - SMA male (RG402)
• Antenna length - 14.5 cm
• Radiation pattern - RHCP circular
• Gain - 3.5dBi
• Moisture resistance - IP65

This clover antenna is designed for stable operation in the 3.5-4.5 GHz range with a bandwidth of approximately 1 GHz, ensuring reliable communication in challenging conditions and reducing interference. RHCP circular polarization mitigates multipath signal propagation effects and improves communication stability during aircraft maneuvers.

The SMA male (RG402) connector provides a strong and reliable connection to transmitters and video transmitters (VTX), while the compact length of 14.5 cm makes the antenna convenient for mounting in confined spaces. The 3.5 dBi gain ensures an appropriate balance between coverage and directivity, which is important for FPV applications.

With an IP65 protection rating, the antenna is resistant to dust and water splashes, allowing for outdoor operation in moderate weather conditions without undue risks to performance.

Compatibility and Application

Excellent for VTX PEAKFVP THOR T35 and similar modules requiring a clover antenna with RHCP polarization, SMA male connector, and an operating range of 3.5-4.5 GHz. An ideal choice for FPV pilots, engineers, and enthusiasts who value reliable signal, ease of installation, and weather protection.

By choosing the BombAss clover antenna, you get a compact and durable component for your radio system with clearly defined parameters: frequency 3.5-4.5 GHz, bandwidth (VSWR up to 1.5) 1 GHz, SMA male (RG402), length 14.5 cm, RHCP circular pattern, 3.5dBi gain, and IP65 moisture resistance.

If you need an antenna to improve video link quality or increase channel stability in noisy environments — this model offers an excellent compromise between size, weight, and performance.

Other important details: BombAss guarantees compliance with technical specifications and assembly quality, making this clover antenna a reliable choice for professional and amateur use.
