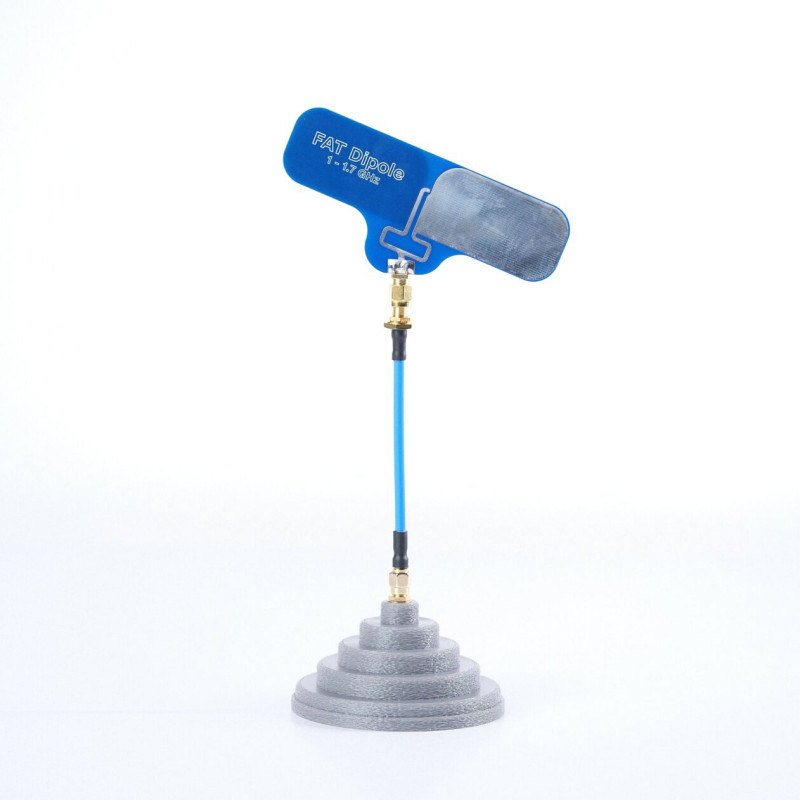

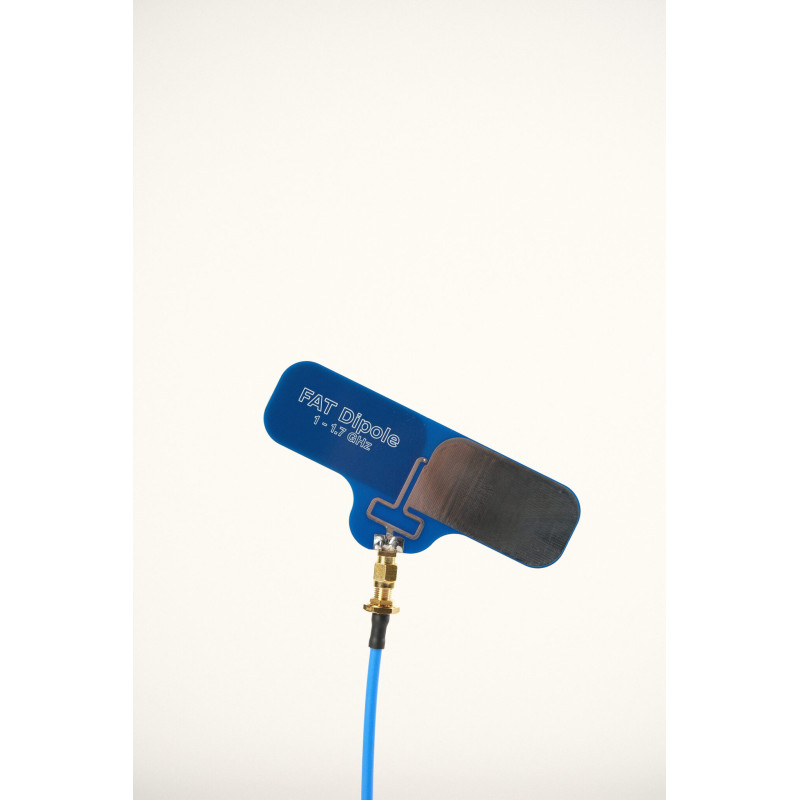

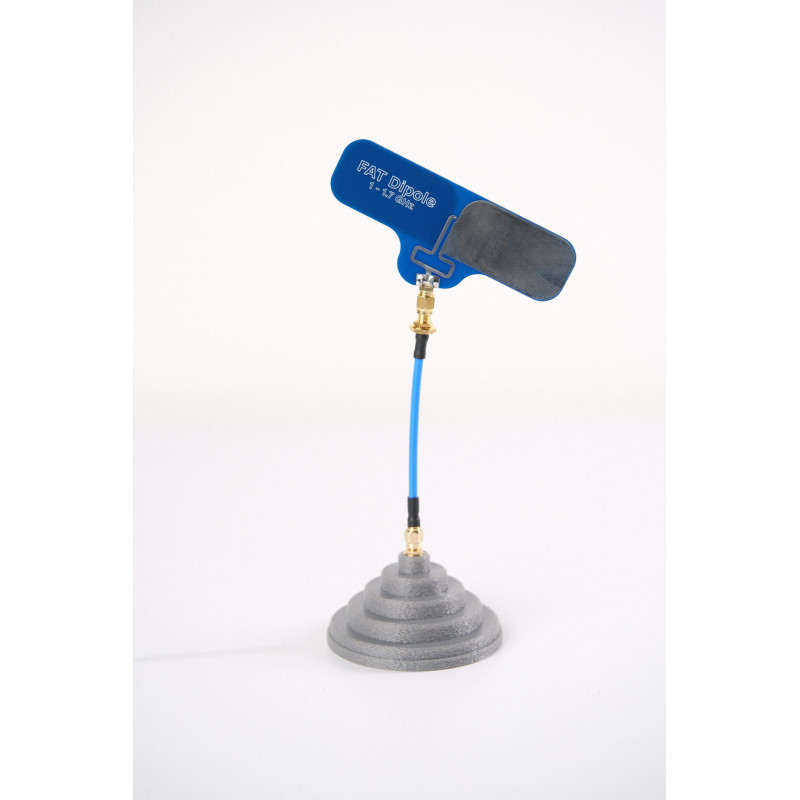

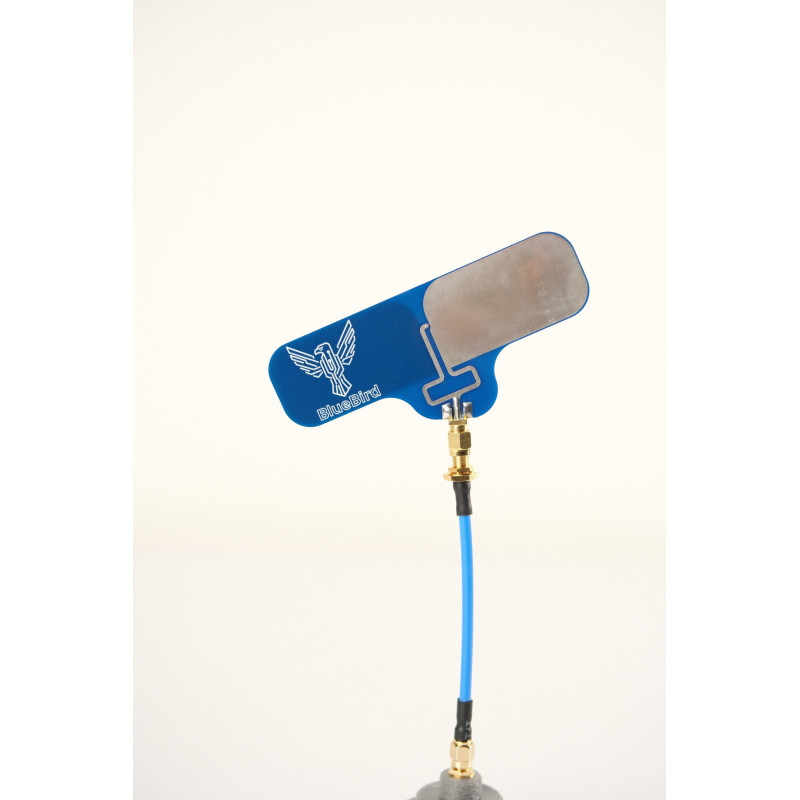

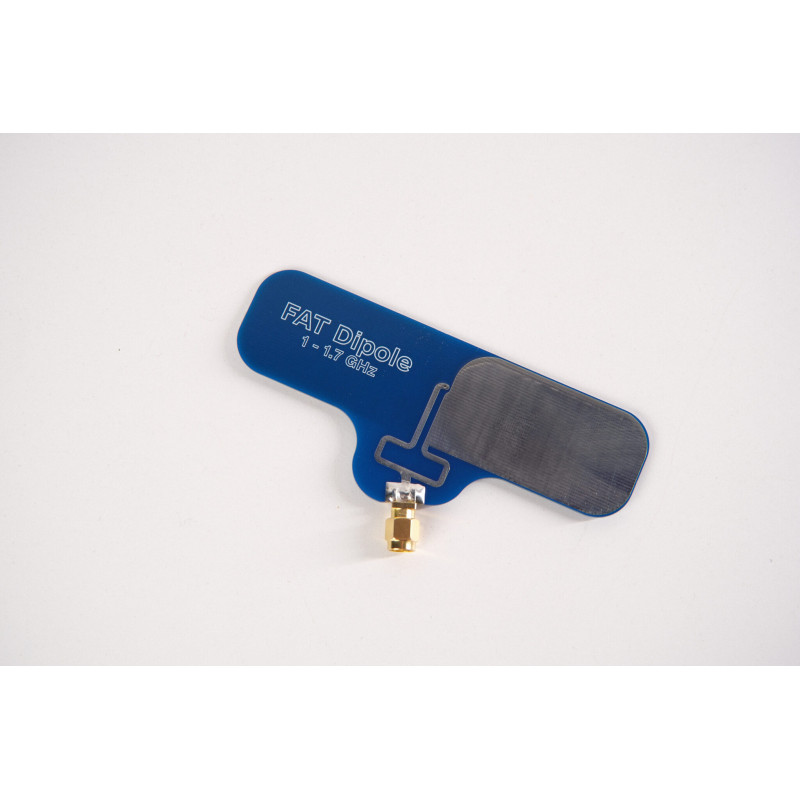

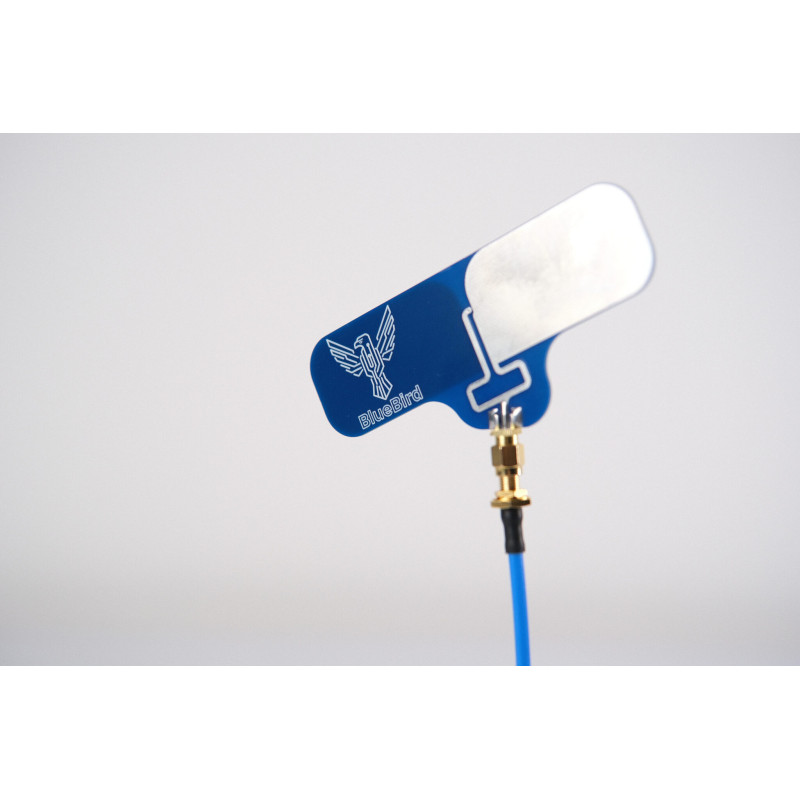

The FAT Dipole 1.2 GHz antenna from BlueBird Tech is an ultra-wideband omnidirectional antenna, implemented on a printed circuit board (PCB).
The special geometry of the FAT dipole allows the antenna to operate effectively in an extremely wide frequency range — from 1000 to 1700 MHz, while maintaining a stable SWR (< 2.0).
Due to the absence of bulky elements and a weight of only 12 grams, the antenna has minimal aerodynamic drag. Unlike classic thin dipoles, the FAT Dipole is less sensitive to the influence of surrounding objects and metal structures, ensuring stable communication in challenging operating conditions.
The antenna forms a classic dipole radiation pattern ("donut") with maximum radiation perpendicular to the antenna axis.
Purpose
The antenna is designed for universal application in radio communication systems where wideband capability and compactness are critical.
Key use cases:
-
Wideband video communication
Ideally suited for transmitting analog and digital video signals in the 1.2–1.3 GHz range. -
Multiband capability
Thanks to its operating band up to 1700 MHz, the antenna can be used in systems requiring rapid changes of frequency channels without replacing antenna equipment. -
Aviation systems and FPV
Ultra-low weight (12 g) and a flat profile make it an optimal choice for installation on drones and wings, where aerodynamics and minimal mass are important. -
Repeaters and ground stations
Can be used as a lightweight airborne or ground antenna to provide reliable omnidirectional coverage in the near and mid-range.
Technical specifications:
| Parameter | Value |
|---|---|
| Nominal frequency range | 1200 MHz |
| Operating band (SWR < 2) | 1000–1700 MHz |
| SWR | < 2.0 |
| Polarization type | Linear |
| Impedance | 50 Ohm |
| Gain | 2 to 2.7 dBi |
| Radiation pattern | Dipole RP, 2-lobe; HPBW (−3 dB) ≈ 82°, maximum ⟂ antenna axis |
| Connector | SMA male |
| Element material | PCB |
| Operating temperature range | −40…+85 °C |
| Weight | 12 g |
| Dimensions | width 115 mm, height 58 mm |
The FAT Dipole 1.2 GHz Antenna includes:
- FAT Dipole 1.2 GHz Antenna – 1 pc.
