SKYNOVA Yagi Antenna, Custom-Made for Any Frequency
This antenna is an excellent solution for drone ground control stations that require a flight range of up to 30-40 km. It enables stable operation over long distances, making it an ideal choice for UAV and UAS systems.
Advantages of this antenna:
✔️ Small size (up to 30 cm) - convenient for transport and installation.
Repeater mount - 15x15 mm tube for easy installation.
SMA-Female connector - for selecting the required cable length.
Rigid construction - withstands even drops.
Azimuth adjustment - with nut fixation for precise tuning.
⚖️ Lightweight (up to 100 g) - minimal impact on device weight.
Technical specifications:
- Frequency: 750 MHz (700-800 MHz)
- Gain: 10 dBi
- VSWR at center frequency: 1.1
- Material: Polymer, aluminum
- Connector: SMA-Female
- Polarization: Linear (vertical or horizontal)
- Impedance: 50 Ohm
- Flight range: up to 40 km
- Weight: up to 100 g

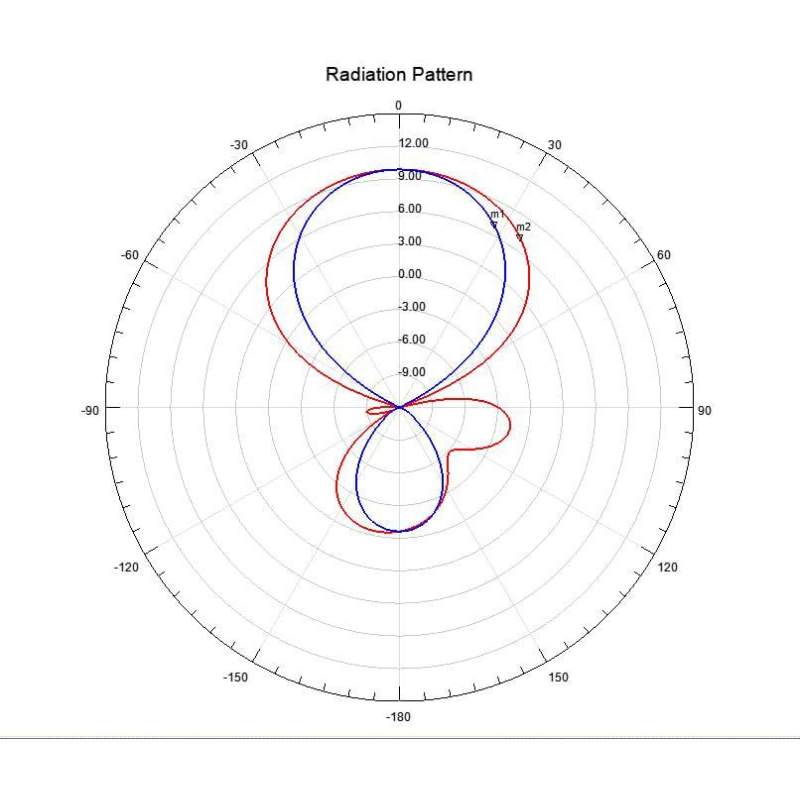

Antenna radiation pattern:
The Yagi antenna is a reliable and powerful solution for ensuring stable long-range communication during your drone flights!
