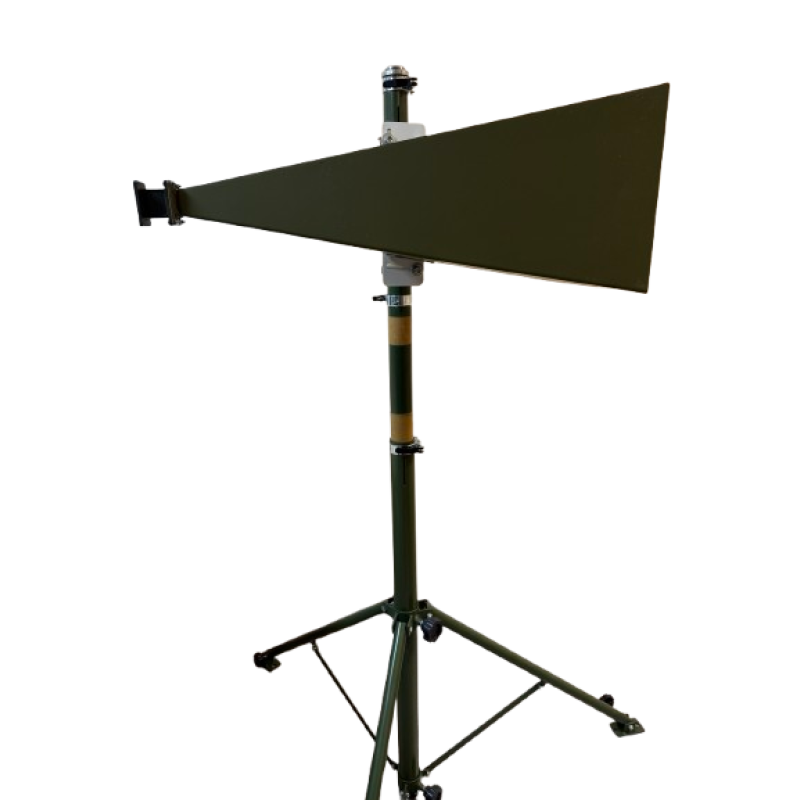

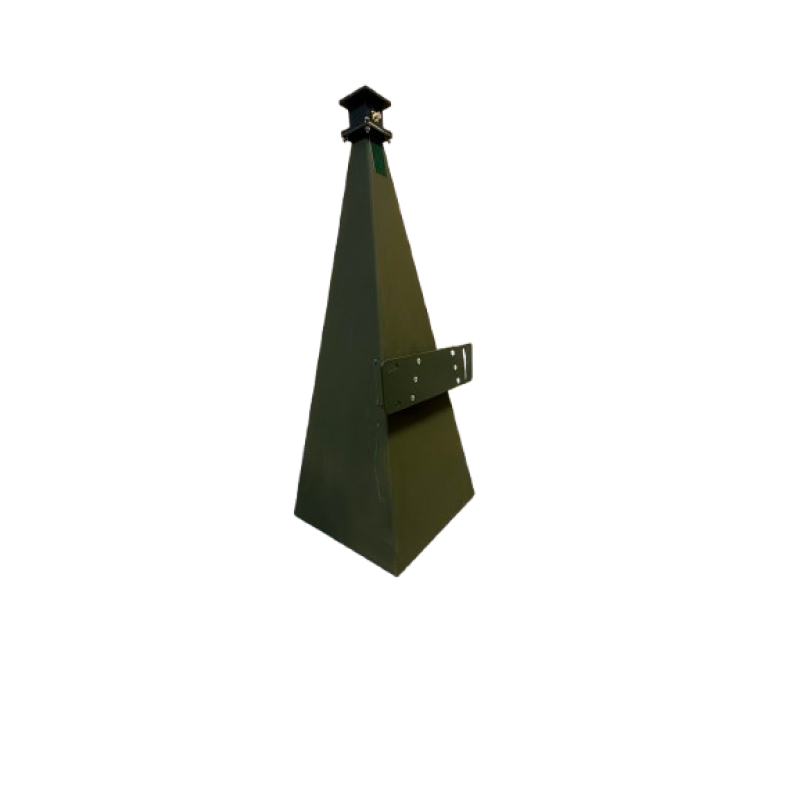

HORN 55_750R N type female (connector-python) horn antenna for UAV video channel is designed for use in UAV video channels. It operates in the frequency range of 4.8...5.9 GHz (center frequency 5.3 GHz).

Key features of HORN55_750R:

• Operating frequency range: 4.8...5.9 GHz


• Gain at 5.8 GHz: 24 dB


• Gain at 4.8 GHz: 23 dB


• Directivity at -3dB level: 11 degrees horizontal, 10 degrees vertical


• VSWR: < 1.5


• Input impedance: 50 Ohm


• Maximum power: 50 W


• Connector: N-type female


• Polarization: right-hand circular (or left-hand circular by order)


• Dimensions (approx.): 305 x 308 x 760 mm


• Weight (approx.): 3.5 grams


• Material: aluminum

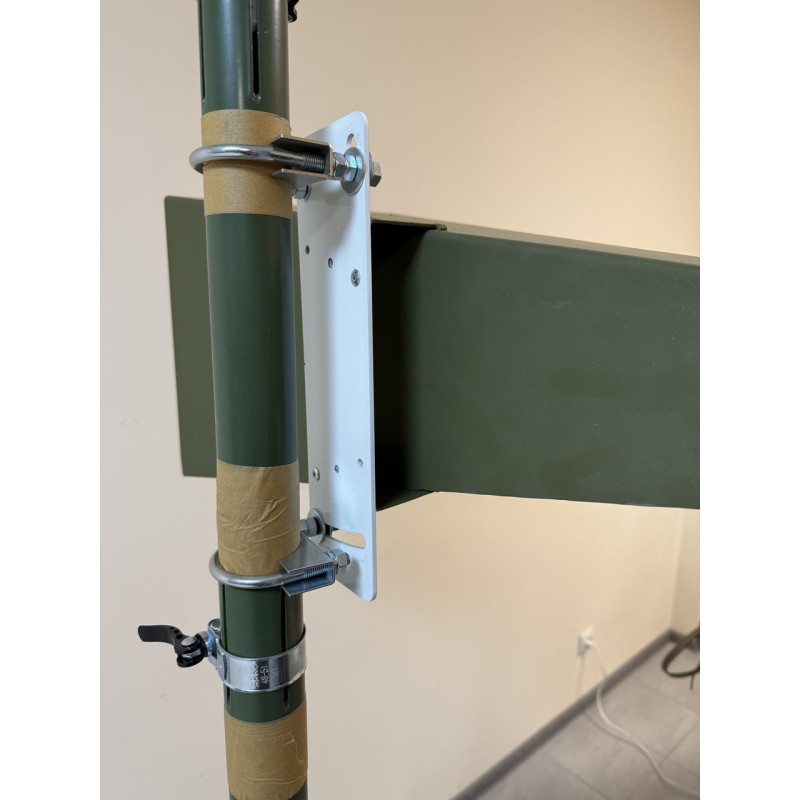

• Mounting type: to mast / wall



•

Features of the HORN55_750R directional base antenna:

• High selectivity: Thanks to its narrow beamwidth, the antenna effectively rejects side and rear interference, ensuring a clean signal.


• Weather resistance: The aluminum construction provides protection against corrosion and other adverse environmental factors.


• Easy installation: The antenna is easily mounted on a mast or wall using standard fasteners.


• Reliable operation in interference conditions: HORN55_750R operates effectively in urban areas and other environments with high levels of radio interference.


• Customization: The antenna can be manufactured with left-hand circular polarization upon customer request.



•

Applications of HORN55_750R:

• FPV (First Person View) flights


• UAV video surveillance


• Video signal retransmission


• Creation of wireless bridges


• Use in security and monitoring systems



•

Advantages of using horn antennas:

• High directivity: Ensures maximum communication range and minimizes interference.


• Stable characteristics: The antenna demonstrates stable operation over a wide frequency range.


• Robust and reliable design: Guarantees a long service life.


• High efficiency: Provides a powerful and clean signal.



•

If you are looking for a reliable and effective antenna for your UAV, HORN55_750R will be an excellent choice. It will provide a stable and high-quality video signal over significant distances. For more detailed information and to order the antenna, please contact our specialists. We will be happy to assist you with your choice and provide professional consultation.
