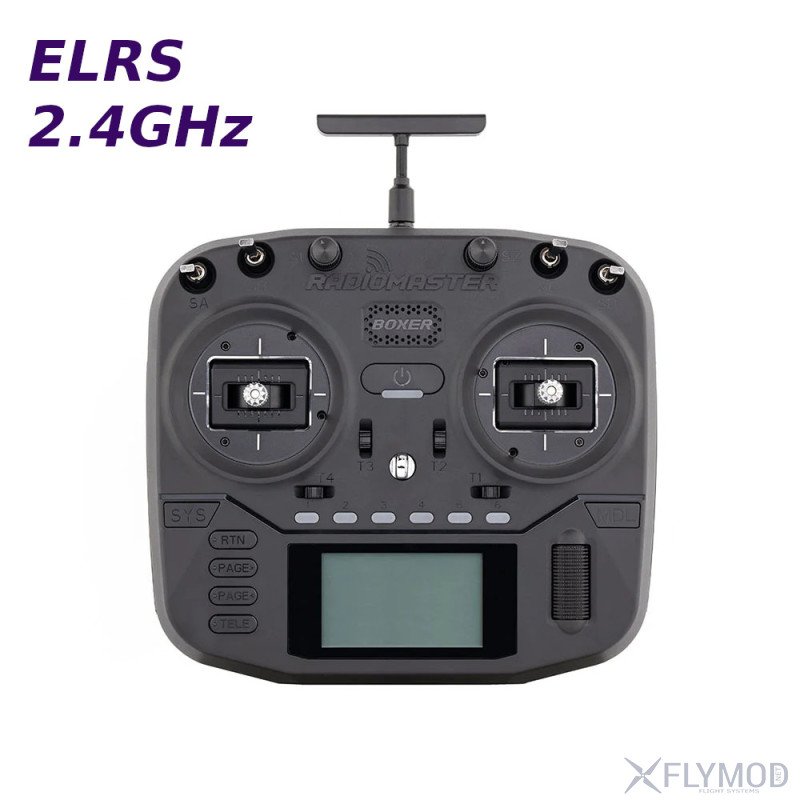

A compact, ergonomic, and powerful new product from RadiomasterRC - the RadioMaster Boxer radio transmitter. This model features full-size gimbals for precise control, an intuitive and familiar button layout, and compact dimensions without sacrificing functionality.
The Boxer supports QC3.0 charging, is equipped with an STM32VGT6 processor with 1MB RAM, and features a new low-profile latching SE switch and a momentary SF switch. The ergonomic design of the transmitter body, a fabric handle for easy carrying, stick protectors, and a Radiomaster branded case (included!) - all these features, along with other highlights of this model, make the RadioMaster Boxer an ideal choice for active pilots.
You can watch a video presentation of this model here:

Features

• Pre-installed EdgeTX firmware
• Powerful STM32VGT6 processor with 1MB RAM
• Internal ELRS module with 1000Hz refresh rate
• Adjustable ELRS RF output (max. 30dBm FCC or 20dBm max. EU LBT)
• Standard module bay
• ELRS version has a fan and cooling vents for the module
• External power supply connection capability (2S)
• Large battery compartment
• Supports direct USB-C charging (QC3.0, max current 2.0A)
• Full-size V4.0 gimbals
• Versatile 6-position switch for flight mode access
• Adjustable and removable T-shaped antenna
• Ergonomic design
• Fabric handle for easy carrying
• RadiomasterRC branded case and stick protectors included

• The Boxer Crush version differs in color and features AG01 CNC aluminum gimbals with Hall sensors

Watch the video for more details about the RadioMaster Boxer transmitter:

Specifications

• Version: FCC (international)
• STM32VGT6 processor with 1MB
• Frequency: 2.400-2.480GHz
• Channels: max. up to 16 channels (receiver dependent)
• Built-in multi-protocol RF module: option selection
  • CC2500 multi
  • 4in1 multi
  • ELRS 2.4GHz
• Supported protocols: module dependent
• Transmit power:
  • CC2500 and 4IN1: max. 20dBm
  • ExpressLRS: max. 30dBm (FCC) / max. 20dBm (EU LBT)
• Cooling fan: built-in (for ELRS version)
• Voltage range: 6.6-8.4V DC
• Firmware: EdgeTX (transmitter) / Multi-Module (radio module) / ELRS
• Display: 128*64 monochrome LCD
• Gimbal: high-precision Hall effect 4.0 gimbals as standard
• External module: JR/FrSKY/Crossfire compatible
• Update method: USB/SD card and EdgeTX Companion PC software
• External Micro SD slot: yes (with pre-installed memory card)
• Recommended batteries: 2 x 3.7V 18650 Li-ion or 7.4V 2S LiPo (not included)
• Size: 235*178*77mm
• Weight: 532.5g

Package Contents

• 1x RadioMaster Boxer Radio Transmitter
• 1x 3D-printed stick protector
• 1x Radiomaster branded case
• 4x Gimbal springs
• 1x 18650 battery tray
• 1x 1.5mm hex key
• 2x M4*4 bolts
• 1x USB-C cable
• 1x T-shaped antenna
• 1x User manual
• Attention! Batteries are not included in the package
