Main specifications

Cooling type: Active

Frequency range: 300–1050 MHz, 1700–2700 MHz

Jamming range: up to 150 m

Power source: Combined

Power Supply: From 12V / 24V vehicle power, LiFePO4 batteries

All specifications

We will deliver this product:

Payment

Description

OMEGA dome-type vehicle EW system offers high-tech solutions for neutralizing kamikaze drones and other UAVs, designed for use in complex combat conditions. Thanks to innovative technologies, these devices provide full protection within a radius of up to 150 m.

Features:

Field installation takes up to 20 minutes

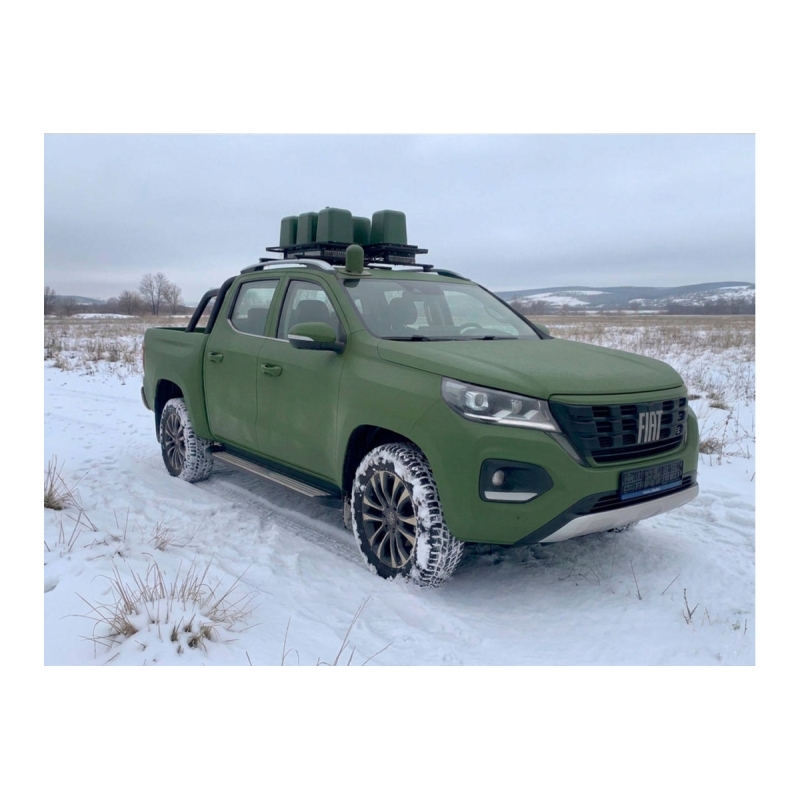

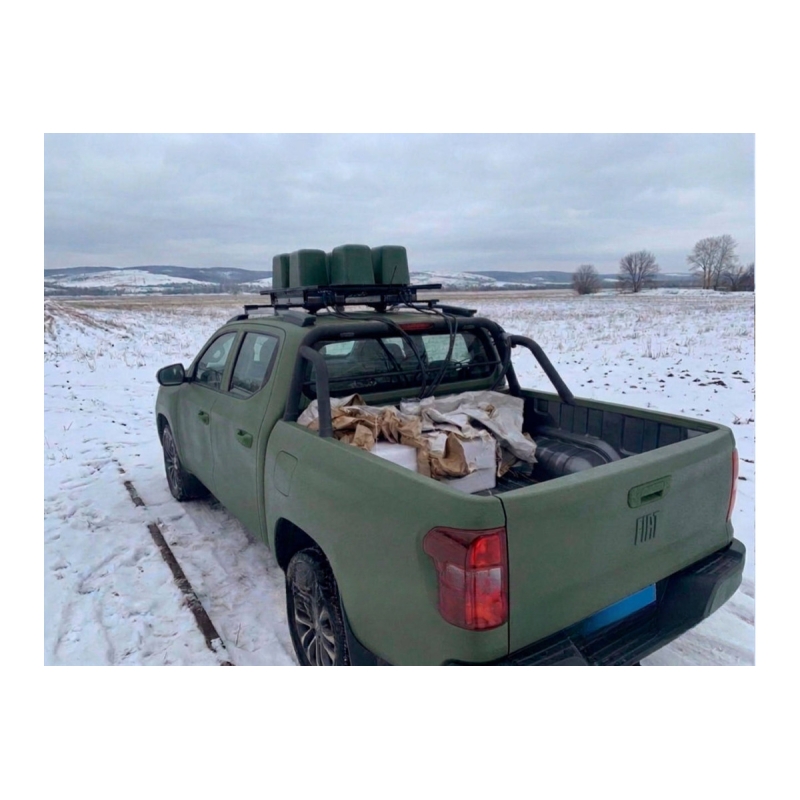

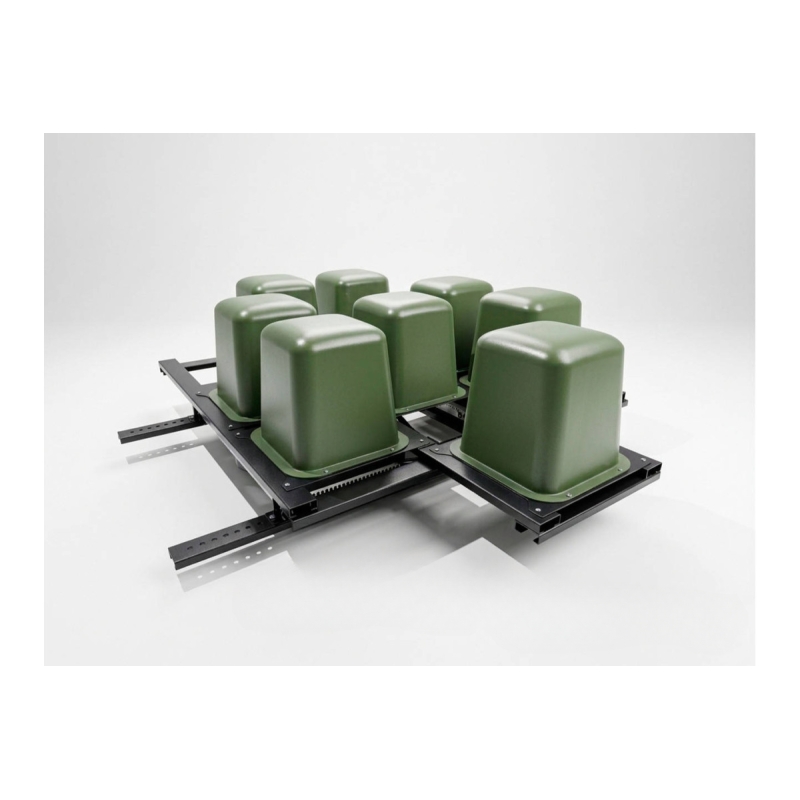

Spherical protection field: A complex of twelve antennas (located in eight compact "domes" on the roof) creates an ideal dome field that effectively blocks drone control signals.
High reliability: Resistance to vibrations and shocks ensures stable operation even in harsh front-line conditions.
Energy efficiency: The devices are equipped with autonomous batteries that are easily charged both from a vehicle and from a standard power grid.
Possibility of restoring all elements and components in case of damage or impact.

Key specifications:
Suppression frequency range: 300–580 MHz, 700-1050 MHz, 1.7 - 2.7GHz (1700-2700MHz)
Angular radiation sector 360 degrees
Protection class IP 67 (sealed external casing)
Radiation generator power 6*40±5 W (all modules with circulators)
Operating range: at least 50 meters
Continuous operation time: up to 180 min. (3 hours) (LiFePO4)
Weight: 40 kg
Overall dimensions: adaptive mounting for roof rail system
Audible low battery warning
LED indication in case of damage to nodes, antenna, cable, which allows identifying the malfunction and seeking service if necessary.

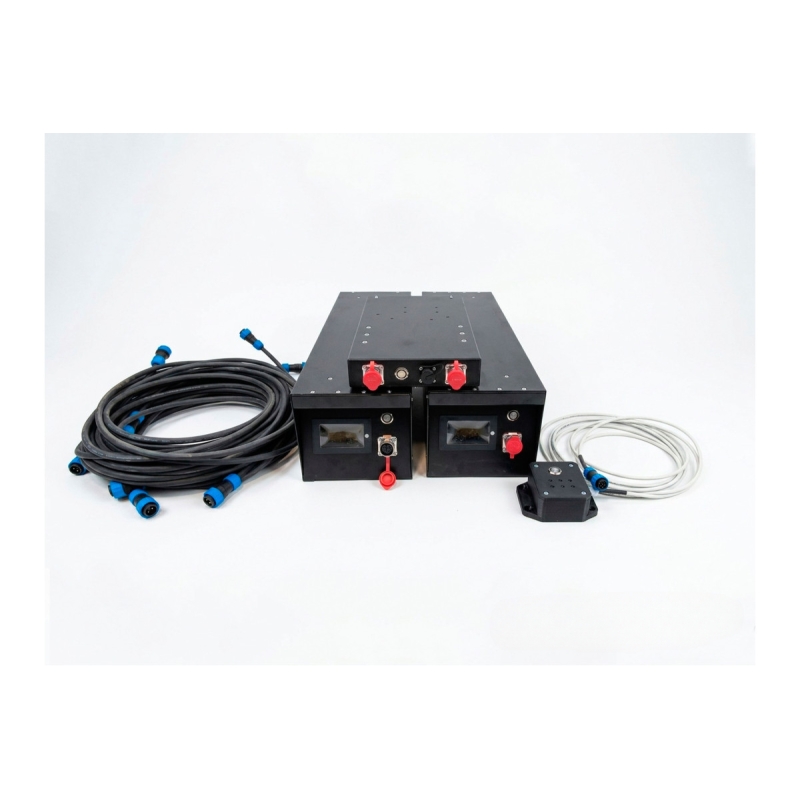

Package contents:

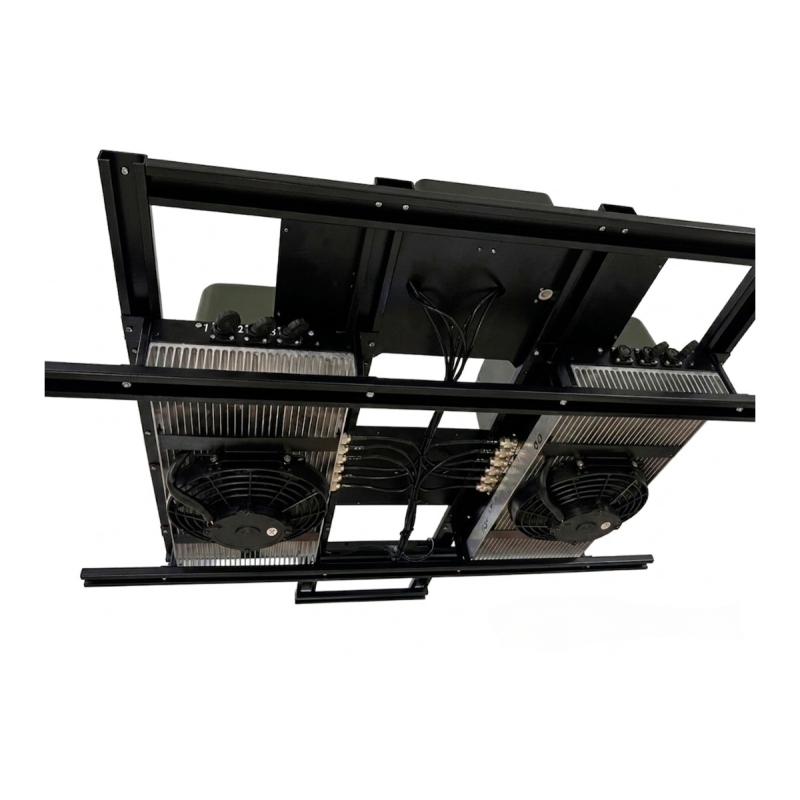

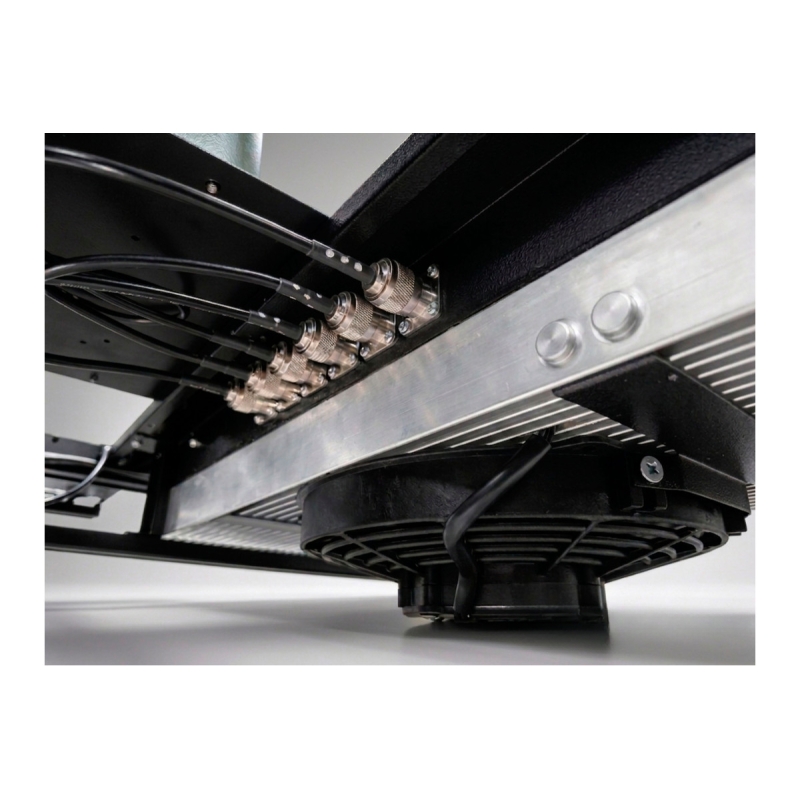

external jamming signal generation unit with antennas

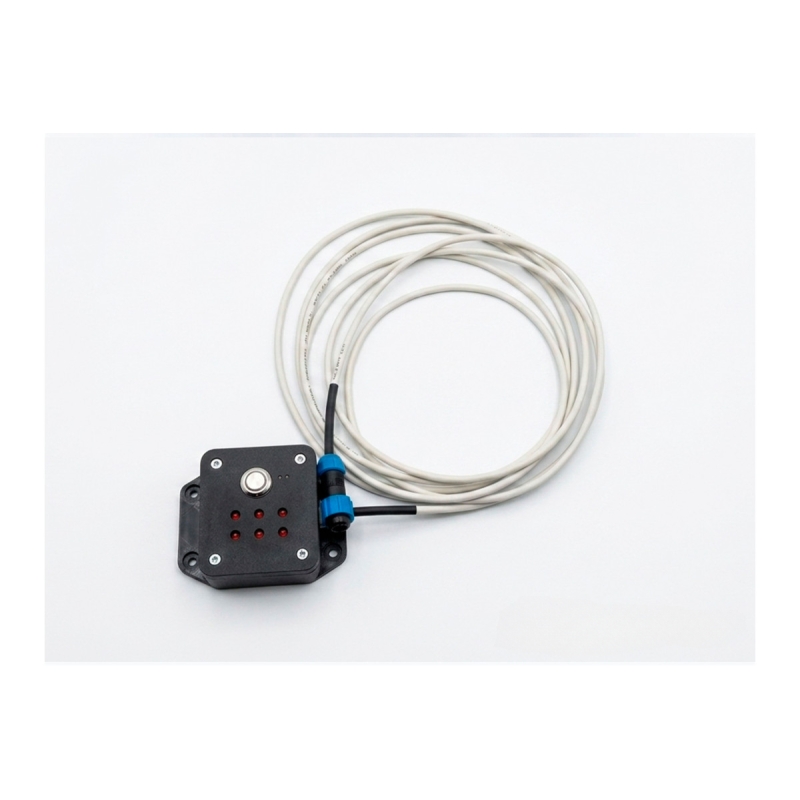

remote on/off button

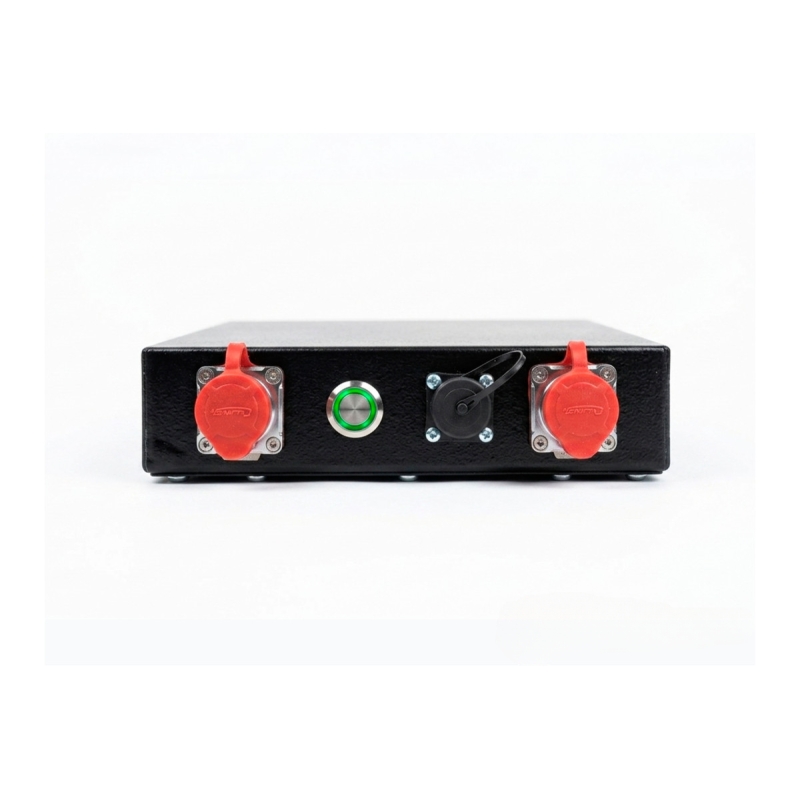

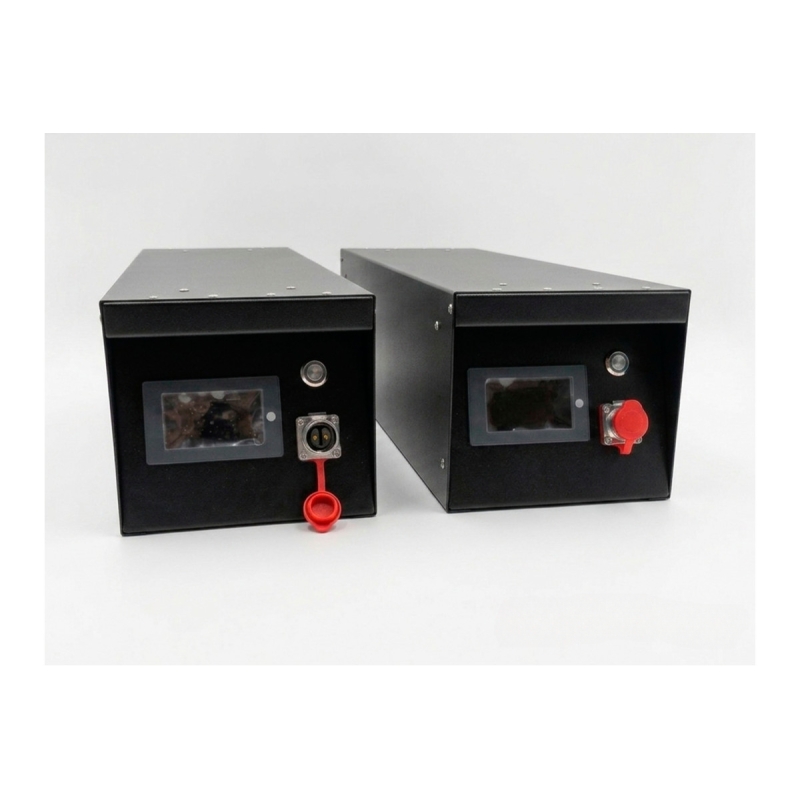

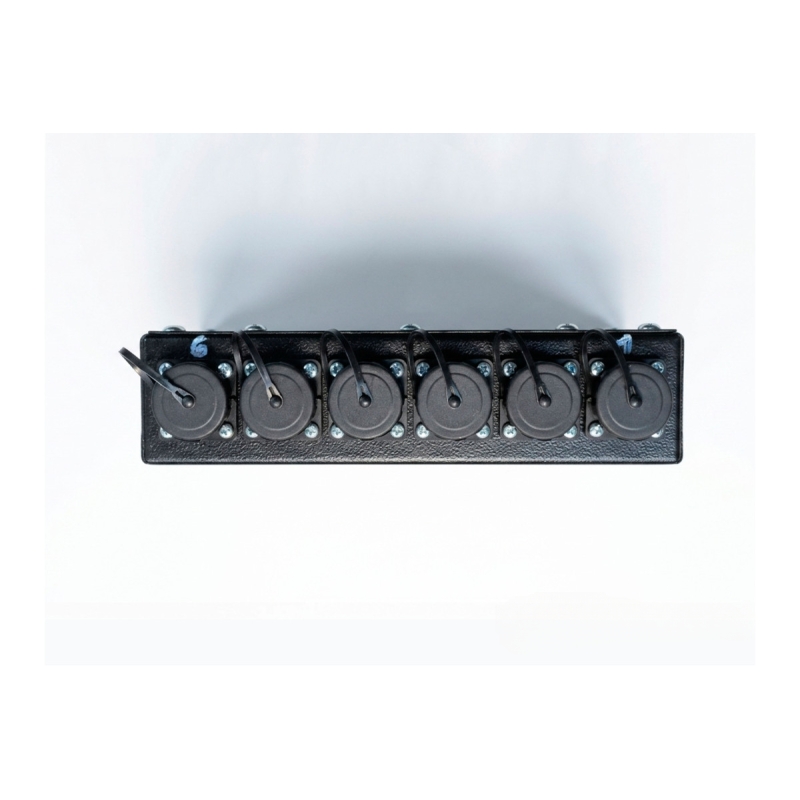

2 battery units and a switching control unit, located inside the car
magnetic cable holder
cable holder
crossbar with mounting to car roof rails, including mounting kit

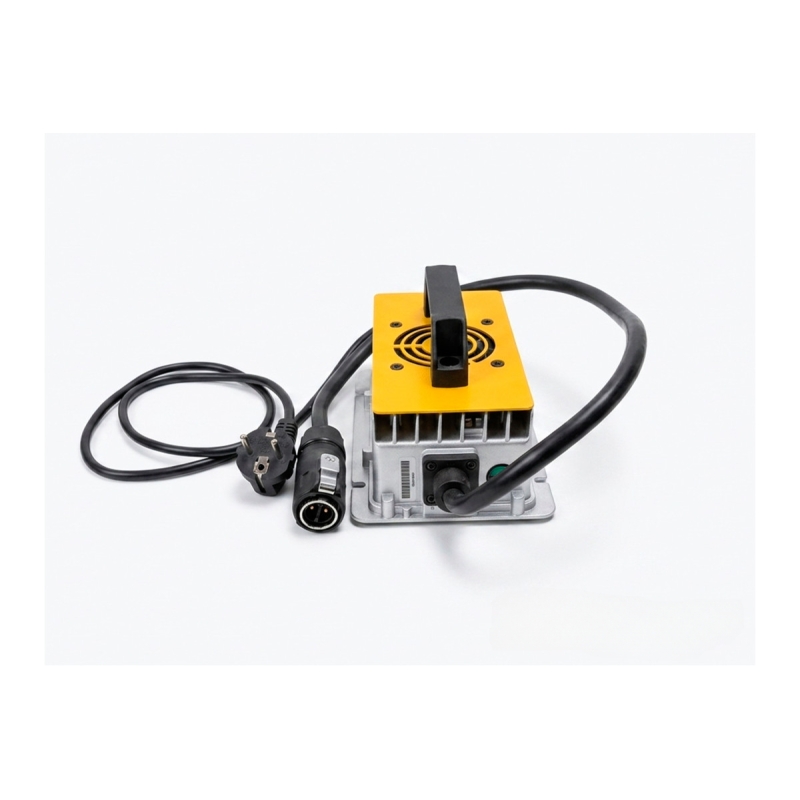

battery charger

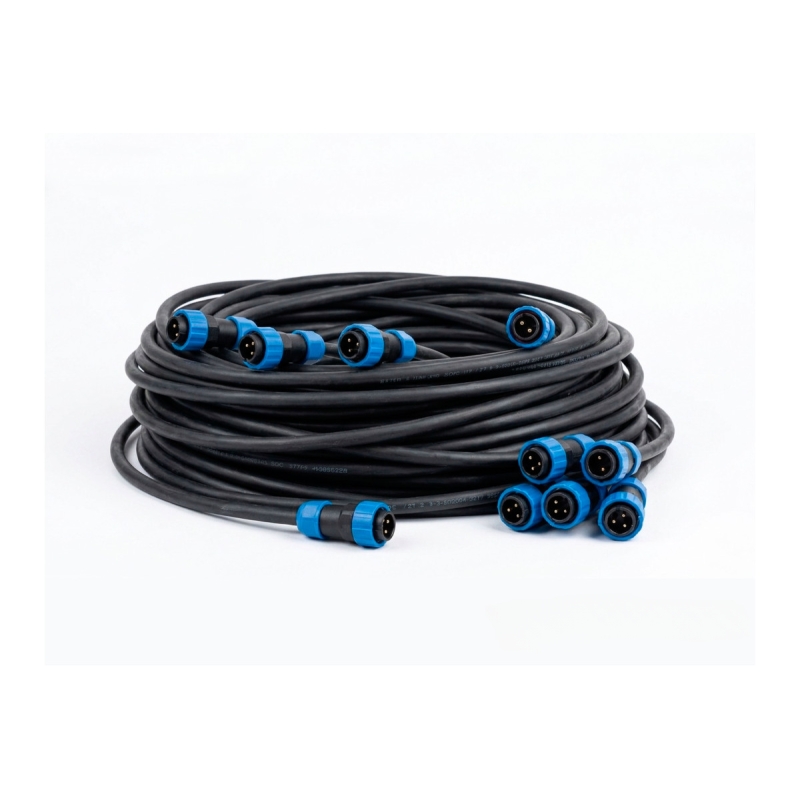

cable for connecting the jamming unit with antennas to the switching unit
cable for connecting the switching unit to the battery
passport and manual

Device advantages

LED notification in case of module(s) malfunction. Now there is no need to check the device before each trip; in case of malfunction or partial damage, antenna loss, or device damage for other reasons, the LED indicator will notify which module and at what frequencies is not working.

Versatility: Suitable for mounting on equipment or vehicles.
Autonomy: Battery system supports alternative power sources (ECOFLOW, etc).
Full package: Chargers, cables, fuses, manual.
Easy installation: Does not require special technical knowledge.
Two chargers for car and mains power
External spherical action antennas
Switching unit for objective operational control
Calibration of each module, output power corresponds to declared, we do not assemble "out of the box" without measuring actual output power.
Calibration of each antenna with VSWR not higher than 1.5 (we have a full closed production cycle)

Before shipping to the client, each device undergoes a series of checks:

• inspection of fasteners, components, dimensions, wires
• inspection of frequency range and radiation power
• automated 45-minute on/off stress test
• separate antenna inspection

System Specifications

Primary purpose	vehicle-mounted
Frequency range	300-1050 MHz, 1700-2700MHz (1.7-2.7 GHz)
Jamming radiation angles	360°
Circulators in jamming modules	+
Radiation module power	12*50 W
Complete loss of control	50 meters
Operating range	150 meters
Continuous operation time	up to 180 min. (3 hours) (LiFePO4)
Overall dimensions	3658901195
Audible low battery warning	+
LED malfunction indication	+
