Automotive dome-type EW system «AMULET-0306-0710 40C 6M» + «AMULET-1727 40C 6M»  - these are high-tech solutions for neutralizing kamikaze drones and other UAVs, designed for use in complex combat conditions. Thanks to innovative technologies, these devices provide full protection within a radius of up to 150 m.

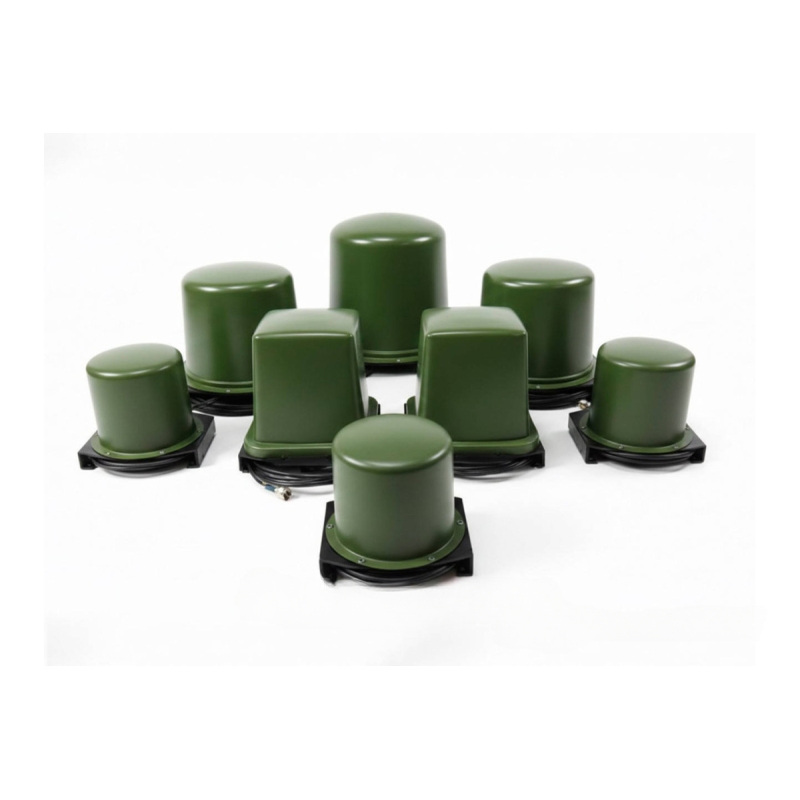

• Spherical protection field: A complex of twelve antennas (located in eight compact "domes" on the roof) creates an ideal dome field that effectively blocks drone control signals.
• High reliability: Resistance to vibrations and shocks ensures stable operation even in harsh front-line conditions.
• Energy efficiency: The devices are equipped with autonomous batteries that can be easily charged from both a vehicle and a standard power grid.
• Possibility of restoring all elements and components in case of damage or impact.

Key features:

«AMULET-1727 40C 6M»

• Suppression frequency range: 1.7 - 2.7GHz (1700-2700MHz)
• Angular radiation sector 360 degrees
• Protection class IP 21
• Radiation generator power 6*40±5 W (all modules with circulators)
• Operating range: at least 50 meters
• Continuous operation time: up to 60 min. (Li-ion 6S 25.2 V x 2)
• Weight: 15 kg
• Dimensions: 430 mm * 260 mm * 196 mm
• Audible low battery indicator
• LED indication in case of jammer module failure, which will allow identifying the malfunction and seeking service if necessary.

«AMULET-0306-0710 40C 6M»

• Suppression frequency range: 300–580 MHz, 700-1050 MHz
• Angular radiation sector 360 degrees
• Protection class IP 21
• Operating range: at least 50 meters
• Power: 6m×40±5 W, (all modules with circulators)
• Continuous operation time: up to 60 min. (Li-ion 6S 25.2 V x 2)
• Weight: 14 kg
• Dimensions: 430 mm * 260 mm * 196 mm
• Audible low battery indicator
• LED indication in case of jammer module failure, which will allow identifying the malfunction and seeking service if necessary.

Package contents:

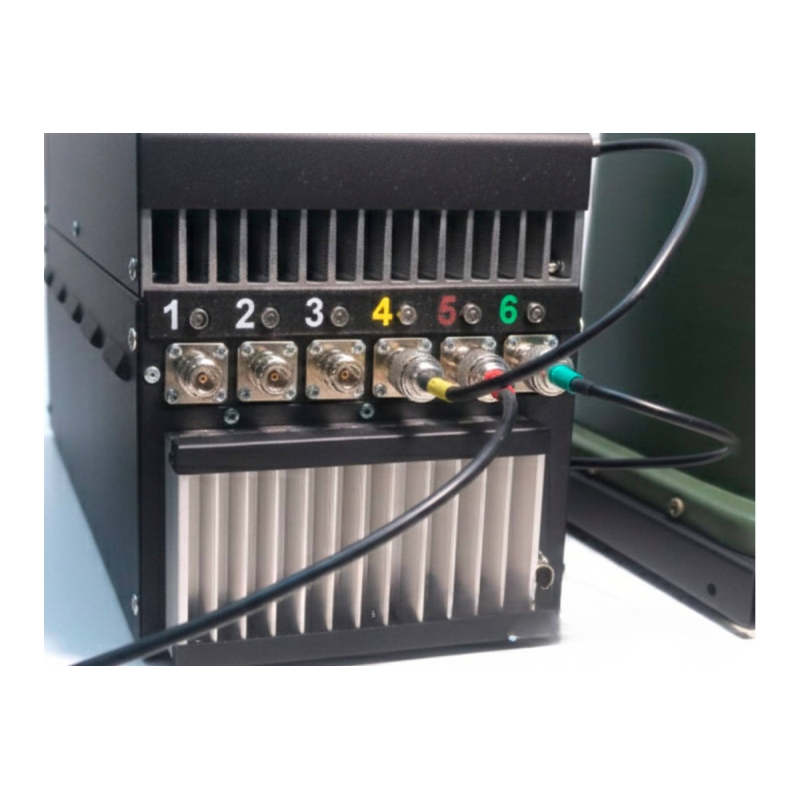

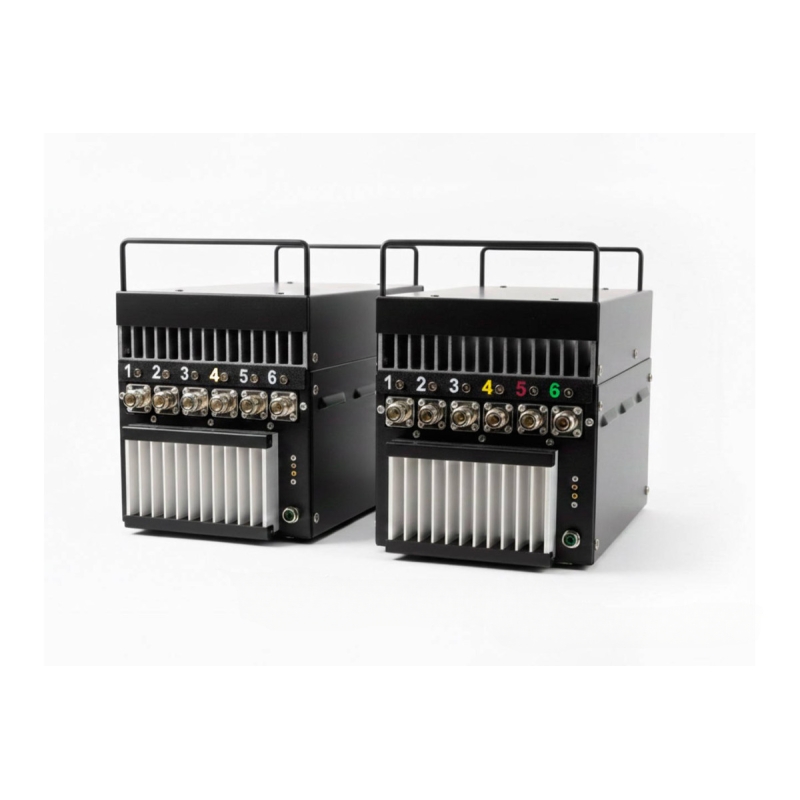

• jammer unit with batteries

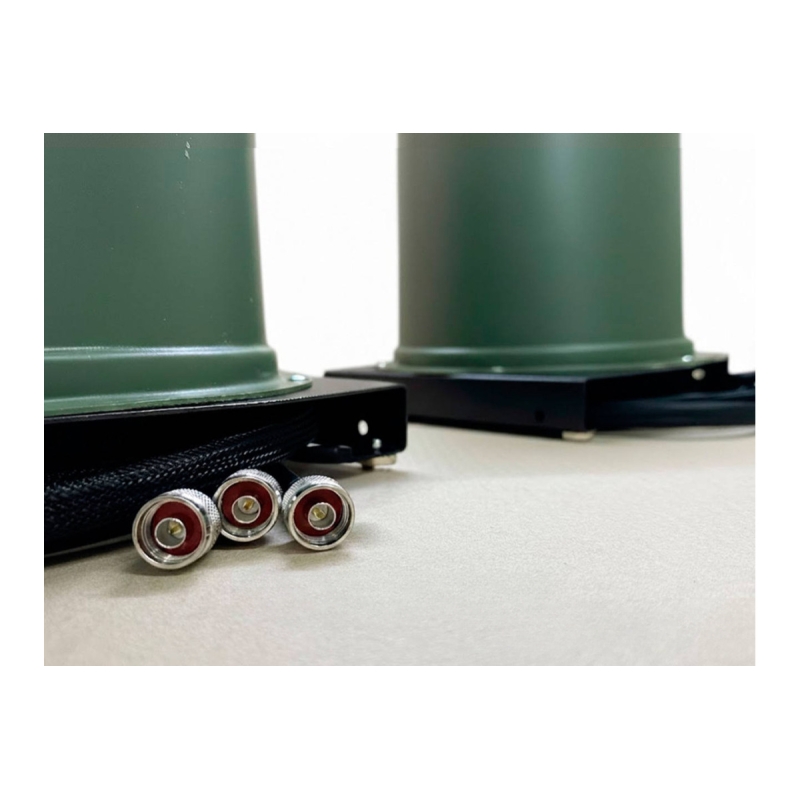

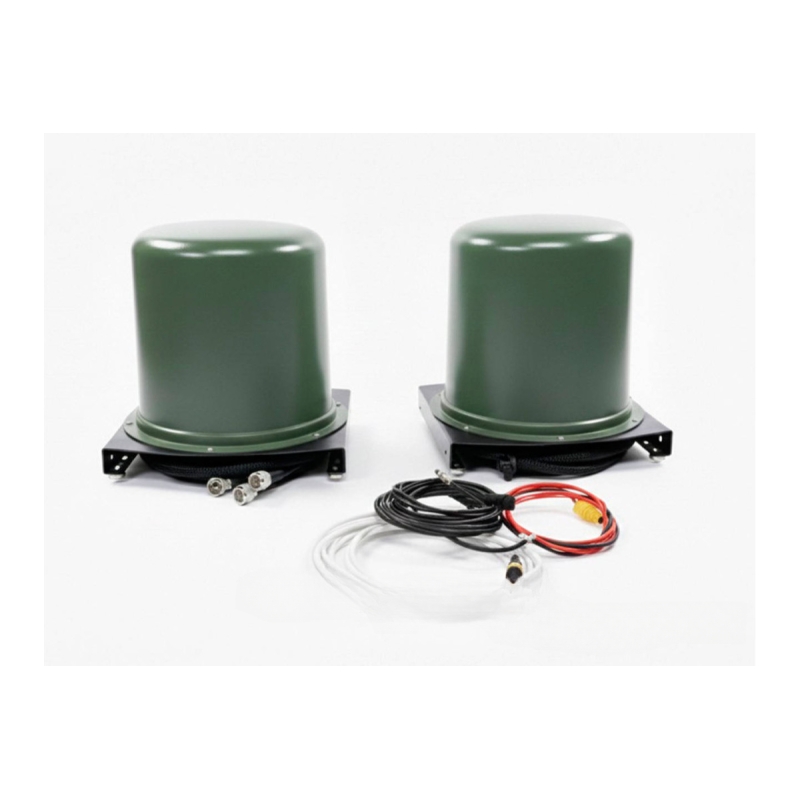

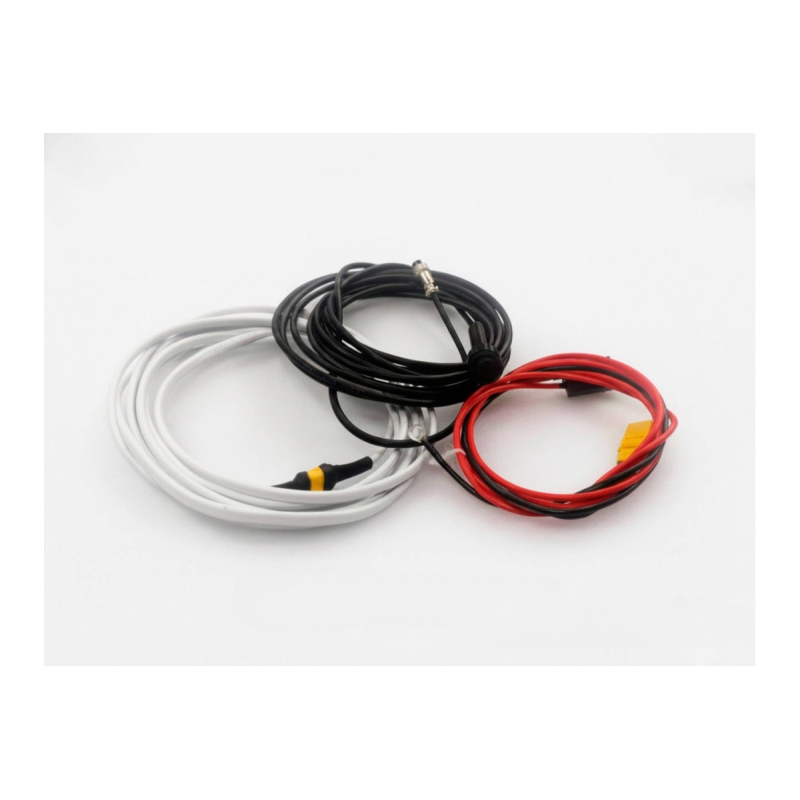

• external antennas with coaxial cables
• remote start button
• battery charger for 6s assembly 220 V
• voltage converter from battery for recharging batteries while the vehicle or equipment is moving
• manual - instructions

Advantages of «AMULET» devices

• Versatility: Suitable for mounting on equipment or vehicles.
• Autonomy: The battery system supports alternative power sources (ECOFLOW, etc).
• Complete set: Chargers, cables, fuses, manual.
• Easy installation: Does not require special technical knowledge.
• Two chargers for car and mains
• External spherical action antennas
• Remote on-off button
• Calibration of each module, output power corresponds to the declared, we do not assemble "out of the box" without measuring the actual output power.
• Calibration of each antenna with VSWR not higher than 1.5 (we have a full closed production cycle)

Before shipping to the client, each device undergoes a series of checks:

   • checking fasteners, components, dimensions, wires
   • checking frequency range and radiation power
   • automated 45-min on-off stress test
   • separate antenna check
