Antenna COALAS::BOWTIE-160 — Dipole Antenna by Coalas systems

COALAS::BOWTIE-160 — is a specialized dipole antenna from the Coalas systems brand, designed for stable reception and transmission in a narrow VHF band. It is optimized for operation in the frequency range of 155 MHz–165 MHz with a resonant frequency of 160 MHz, making it an excellent choice for professional and industrial applications, monitoring systems, security solutions, and stationary radio communications.

Features of the COALAS::BOWTIE-160 model:

• Frequency range: 155 MHz – 165 MHz
• Resonant frequency: 160 MHz
• Bandwidth: 10 MHz (VSWR < 1.5)
• Gain: 2 dBi
• Connector: IPEX Female with integrated RG178 cable, 220 mm long
• Dimensions: 790 mm x 60 mm
• Weight: 113 g

The compact dimensions of the antenna — 790 mm in length and 60 mm in width — allow for easy integration into equipment with limited space, while its weight of only 113 g makes installation simple and reliable without excessive load on mounts. The 2 dBi gain provides improved reception compared to standard dipole antennas in its class, maintaining a stable radiation pattern and correct operation within the stated frequency range.

The integrated IPEX Female connector and 220 mm RG178 cable allow the antenna to be connected to various radio equipment without the need for additional adapters. The 10 MHz bandwidth with a VSWR of less than 1.5 ensures good matching and reliable reception within the operating frequencies, which is important for specialized communication systems and professional solutions.

The model is categorized as: Antennas > Dipole Antennas and is suitable for use in security, monitoring, radio communication systems, and other solutions requiring high tuning precision for frequencies 155–165 MHz. The Coalas systems brand guarantees compliance with technical specifications and manufacturing quality.

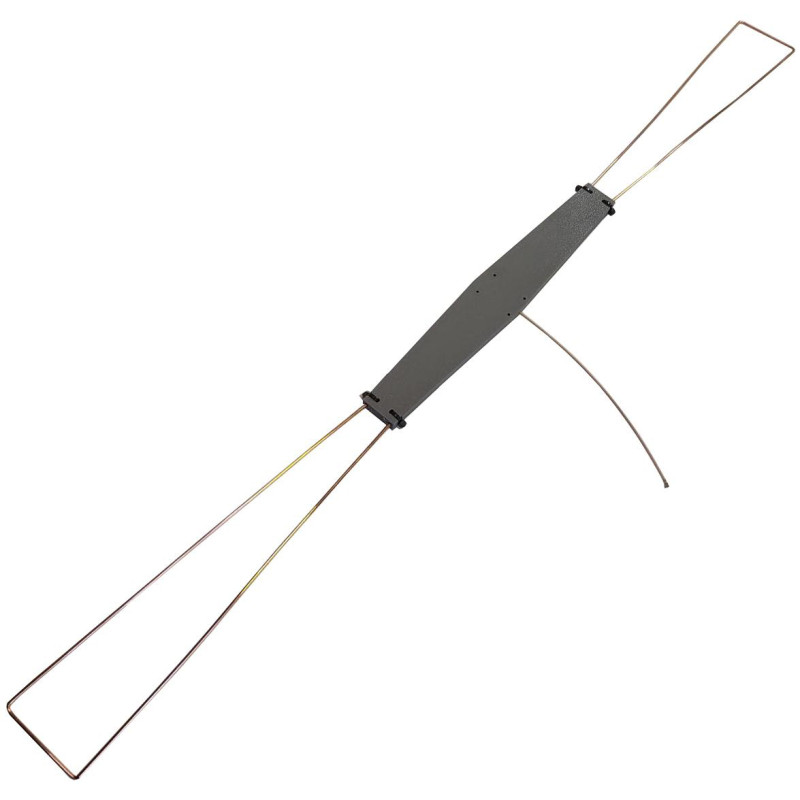

Photos and additional information: COALAS::BOWTIE-160 antenna image

If you need to select an antenna with similar dimensions, a different resonant frequency, or another connector type — please contact our technical support or sales department for individual selection of the optimal solution.
