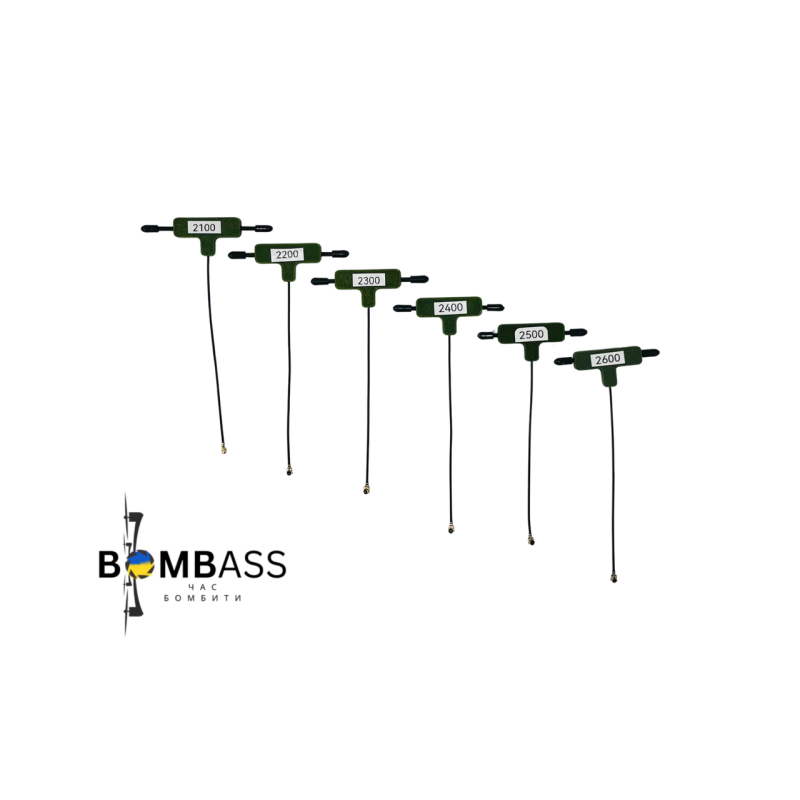

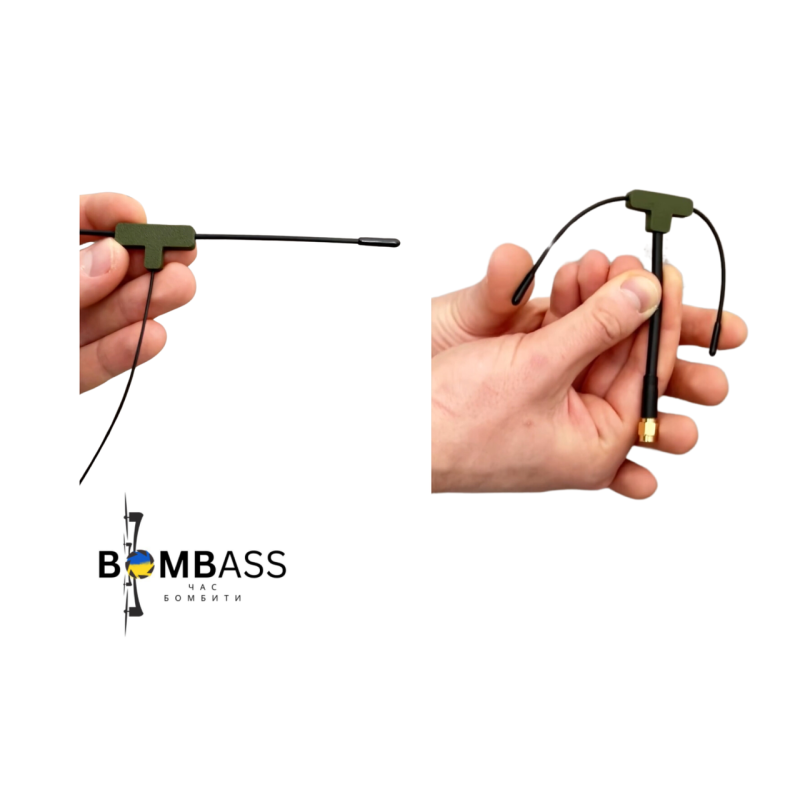

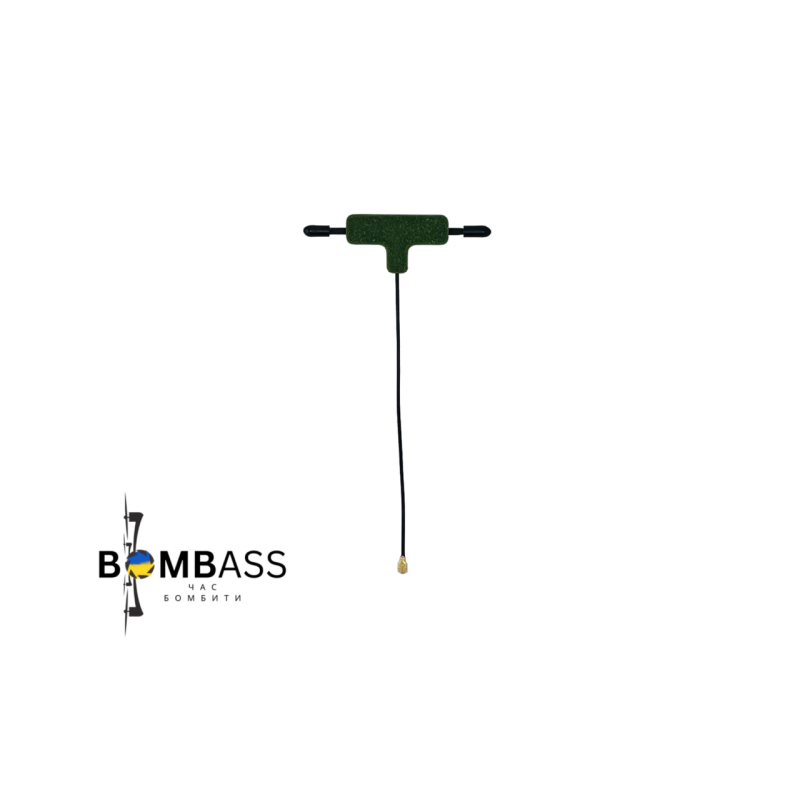

Dipole Antenna 2.5GHz RX (any frequency from 1.9GHz to 2.8GHz)

We offer a high-quality dipole antenna from the manufacturer BombAss, designed for reception in the frequency range from 1.9 GHz to 2.8 GHz. The antenna is custom-made for the specified operating frequency, which allows for optimal receiver performance and minimal losses. Each unit is tuned on a vector analyzer to ensure correct transmission line matching and stable VSWR.

Description and Application

The dipole is optimized for receiving signals in the specified range and is suitable for applications where reliable reception and resistance to environmental influences are important. Thanks to its IP65 protection class, the antenna withstands dust and water jets, making it suitable for outdoor installation or operation in high humidity conditions. A low gain of 2.15 dBi and a toroid-like radiation pattern provide uniform coverage over a wide sector — this is convenient for receivers with moving signal sources or when stable reception over a large area is required.

Key Features

• Bandwidth: 150 MHz (VSWR less than 1.5)
• Connector Type: IPEX1 (1.13 mm)
• Cable Length: 10/15 cm
• Radiation Pattern: Toroid-like
• Gain: 2.15 dBi
• Water Resistance: IP65

The IPEX1 (1.13 mm) connector ensures simple connection to modern modules and boards without the need for additional adapters. Options with cable lengths of 10 cm or 15 cm allow you to choose the optimal configuration for equipment mounting and placement. Tuning to a specific frequency is performed individually on a vector analyzer, guaranteeing compliance with technical parameters and maximum reception efficiency.

The BombAss dipole is ideal for projects where signal stability, ease of integration, and operational reliability outdoors or in high humidity conditions are important. Additional information: TG - BombAssFPV. The product belongs to the category: Antennas > Dipole Antennas.
