Kulbaba TX EW Jammer (840-1010) with Kulbaba Inverter

The Kulbaba TX FPV control jamming and suppression system (840-1010 MHz range) with Kulbaba inverter is designed to significantly increase the chances of protecting moving vehicle convoys from kamikaze drone attacks, as well as for defending trenches and stationary objects. The system combines mobility, selective operation on specified frequencies, and structural reliability for field use. Manufacturer: AWEDYNE. Product type: EW Jammers. Category: Vehicle EW Jammers.

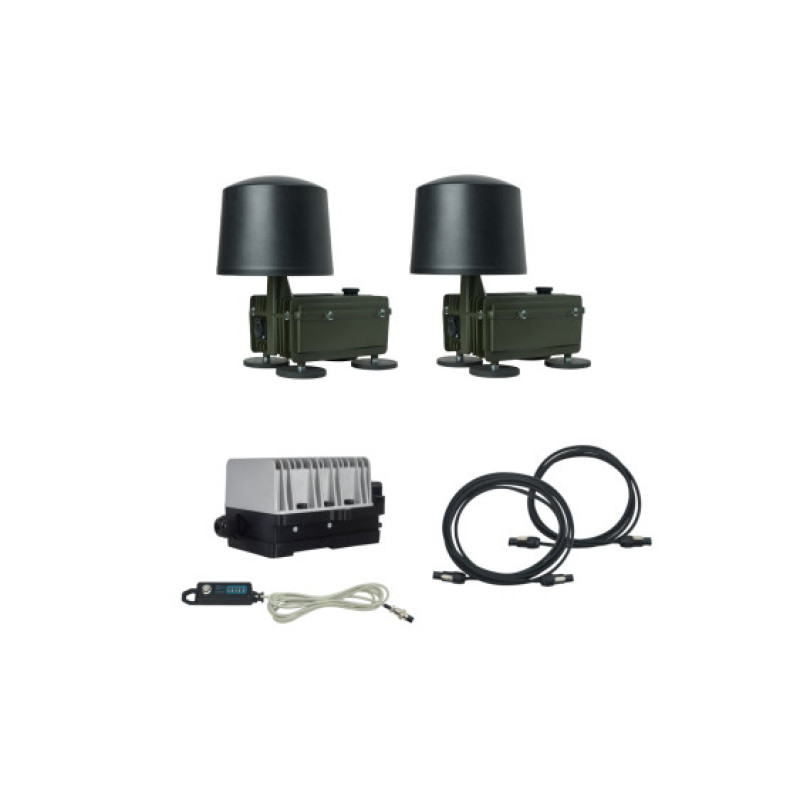

The device consists of several independent units: each unit has a separate casing, its own antenna, and a connector for power supply from a portable LiFePo4 24 V, 12 Ah battery. Power is possible exclusively from the included battery — vehicle mains power or other sources are not provided. The operating time from one battery for two units is approximately 2.5 hours.

The antenna on each unit is designed for a specific frequency and is non-removable, which prevents connecting the unit without an antenna and reduces the risk of amplifier elements failing during operation. The antennas have a reinforced design to maintain geometry under the influence of weather conditions and vehicle vibrations, which increases reliability in field conditions.

The unit design includes built-in neodymium magnets covered with a rubber layer, allowing for very quick and reliable installation of the device on the vehicle body or roof without additional fastening. Thanks to the modular design, each unit operates independently, which increases system stability in combat conditions.

IMPORTANT!

• 1. Many devices externally similar to "Kulbaba" have appeared on the market. Be careful: the sole manufacturer of the original "Kulbaba" system is AWEDYNE. Other devices may not meet technical specifications and may not be related to it.
• 2. Devices with multiple bands and multiple antennas in one casing often do not work correctly: antennas must be spaced apart for proper operation. Do not trust "compact" solutions that are externally convenient but reduce protection effectiveness.
• 3. Collinear dipole antennas form a donut-shaped field with a "hole" above the protected object — this is a vulnerable zone. Use only proper antennas for dome protection.
• 4. Power only from the included battery. Do not modify the device for the vehicle's onboard network. If longer operating time is required, it is recommended to purchase an additional battery pack for the unit.
• 5. If the device has active cooling, it may fail when operating in rain, snow, or contaminated conditions: fans can jam, and the device may then burn out. Choose systems with passive cooling for increased reliability.

The Kulbaba TX (840-1010) system with inverter combines mobility, selective operation on specified frequencies, and structural reliability for field use. Before purchasing, pay attention to the product's origin and the conformity of its characteristics with the manufacturer's AWEDYNE documentation. Operating range: 840-1010 MHz. Power supply: only from the included portable LiFePo4 24 V, 12 Ah battery. Battery life for two units from one battery ~2.5 hours.
