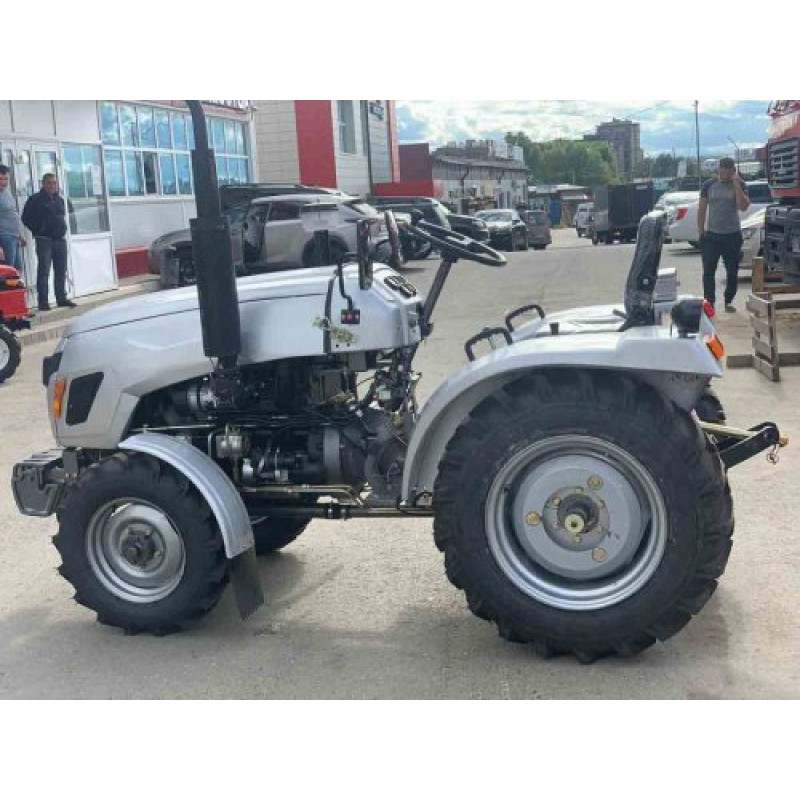

GARDEN STAR GS 244DHX Mini Tractor — 24 hp, 4x4, Diesel

Brand: GARDEN STAR. Category: Tractors > Mini Tractors. The GS 244DHX mini tractor is equipped with a reliable 3-cylinder diesel engine with a displacement of 1652 cm3 and a power of 24 hp (17.65 kW), making it an optimal choice for small farms, gardens, utility work, and homesteads where compactness and off-road capability are important.

The model features 4x4 all-wheel drive, ensuring excellent off-road capability on challenging and sloped terrains. The starting system is an electric starter, enhancing ease of operation. Engine cooling is liquid-based, closed, with forced circulation; the fan is driven by a V-belt transmission. The nominal engine crankshaft speed is 2300 rpm.

The transmission (gearbox) has a (3+1)x2 scheme, providing a sufficient number of gears for various types of work; the clutch is a dry single-disc, constantly closed type. The main drive is direct, and the steering is mechanical. Brakes are located on the rear wheels and are designed as drum brakes for reliable stopping.

The mini tractor is equipped with a rear splined power take-off (PTO) shaft with a speed of 540 rpm, allowing for the connection of a wide range of mounted and trailed equipment. The hydraulic system is based on a gear pump; the maximum lifting capacity of the three-point hitch is 320 kg, and the minimum ground clearance is 290 mm, ensuring operation on uneven terrain and protecting components from snagging.

Front wheel track: 952 mm; rear wheel track: 1020, 1120, 1220, 1320 mm, allowing for the selection of the optimal track width for specific tasks. Tire size: front 6.50-16, rear 11.2-20.0. Fuel tank capacity — 17.0 L, dimensions (L x W x H) — 3020x1250x1500 mm, curb weight — 1250 kg.

Model Advantages

• Powerful 24 hp diesel engine (1652 cm3) with electric starter for easy starting;
• 4x4 all-wheel drive for enhanced off-road capability in challenging conditions;
• Reliable (3+1)x2 gearbox and dry 1-disc clutch for simple maintenance;
• Rear splined PTO 540 rpm for connecting various mounted equipment;
• Maximum lifting capacity of 320 kg and minimum ground clearance of 290 mm for efficient work on uneven terrain;
• Compact dimensions 3020x1250x1500 mm and 17 L fuel tank for long work shifts.

Technical Specifications:

The GS 244DHX combines ease of maintenance with a robust design: a dry single-disc clutch, direct main drive, and mechanical steering reduce maintenance costs and increase durability. The gear hydraulic pump ensures stable operation of mounted equipment, and the rear splined PTO allows for the connection of tillage machines, mowers, trailed units, and other devices.

The GARDEN STAR GS 244DHX mini tractor is suitable for agricultural, utility, and private farms requiring versatile, durable, and easy-to-maintain equipment. If you need advice on selecting mounted equipment or components, our team will help you choose the optimal solutions for specific tasks.
