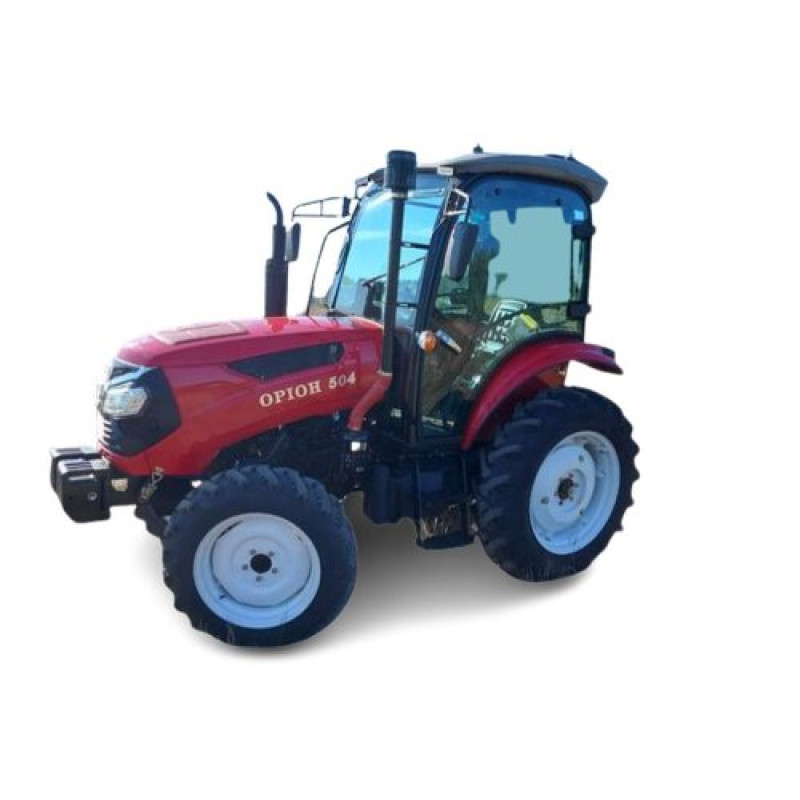

Orion 504 Mini Tractor with Cabin — A Reliable Choice for Farming and Municipal Works
The Orion 504 mini tractor from the Orion brand is a versatile unit with 4x4 all-wheel drive and a comfortable enclosed cabin, designed for a wide range of agricultural, municipal, and landscaping tasks. Its compact dimensions of 3450x1650x2500 mm and an operating weight of 1470 kg make this mini tractor convenient for field work, farm use, cottage households, and urban environments with limited space. A ground clearance of 305 mm ensures reliable passability over rough terrain.
At the heart of the Orion 504 is a 4-stroke YD4100T diesel engine with a vertical arrangement of 4 cylinders, a displacement of 3170 cm3, and a nominal power of 50 hp (33.1 kW). The starting system is an electric starter; cooling is a liquid-closed system with forced circulation of coolant, and the fan is driven by a V-belt transmission. The engine's nominal fuel consumption is ≤245 g/kWh, ensuring economical and durable operation.
The Orion 504 transmission effectively combines reliability and ease of maintenance: the gearbox operates in (4+1)x2 mode, with a nominal traction force of 13.5 kN. The clutch is a dry, 2-disc, constantly closed type; the main drive is direct. The rear axle features a differential lock to improve passability. Brakes are installed on the secondary shaft of the gearbox in the form of brake drums.
The hydraulic system is equipped with gear pumps (NSH) for both the hitch drive and the power steering (GUR). The lifting capacity of the mounted equipment is 850 kg, and the number of hydraulic outlets is 4, allowing simultaneous connection of several working implements. The rear, splined power take-off (PTO) shaft operates at 540 and 1000 rpm, making the tractor compatible with most standard mounted and trailed equipment.
Steering is hydraulic, simplifying maneuvering under load; a trailer connector (socket) is provided. The track dimensions of the front wheels are 1240-1450 mm, and the rear wheels are 1320-1560 mm. Standard tire sizes: front 7.50-16, rear 11.2-24.8.Technical Specifications
List of parameters provided in the factory configuration:
| Engine power, hp (kW) | 50 (33.1) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, YD4100T |
| Number and arrangement of cylinders | 4, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Cooling system fan drive | V-belt transmission |
| Engine displacement, cm3 | 3170 |
| Nominal engine fuel consumption, g/kWh | ≤245 |
| Nominal traction force, kN | 13.5 |
| Gearbox (КП) | (4+1)x2 |
| Rear differential lock | + |
| Clutch | dry, 2-disc, constantly closed type |
| Main drive | direct |
| Steering | hydraulic |
| Brakes | on the secondary shaft of the gearbox, brake drums |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump (NSH) for hitch drive / NSH for power steering operation |
| Mounted equipment lifting capacity | 850 kg |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Wheel track | front 1240-1450, rear 1320-1560 |
| Tire size | front 7.50-16, rear 11.2-24.8 |
| Ground clearance, mm | 305 |
| Number of hydraulic outlets | 4 |
| Trailer connector (socket) | + |
| Dimensions LхWхH mm | 3450х1650х2500 |
| Operating weight, kg | 1470 |
The Orion 504 is ideally suited for owners of farms, cottage complexes, and municipal enterprises who need a powerful and versatile mini tractor with a cabin. Thanks to the combination of a high-resource diesel engine, efficient transmission, advanced hydraulic system, and the ability to work with standard mounted equipment, this tractor allows for a wide range of operations: plowing, milling, hilling, working with mounted seeders, soil cultivation, cargo transportation, and other agricultural and municipal tasks.
If you are looking for a reliable mini tractor from the Orion manufacturer with 4x4 all-wheel drive and a comfortable operator cabin — the Orion 504 will be an excellent choice for your farm or enterprise.
